Kubernetes安装ingress-nginx
1 、Ingress 简介
1.1 kubernetes访问方式
在Kubernetes中，服务和Pod的IP地址仅可以在集群网络内部使用，对于集群外的应用是不可见的。为了使外部的应用能够访问集群内的服务，在Kubernetes 目前 提供了以下几种方案：
K8s集群对外暴露服务的方式目前只有三种：Loadbalancer；NodePort；Ingress
- Loadbalancer 缺点：需要阿里云等公有云支持，而且需要额外支付费用
- NodePort 缺点：要暴露端口，端口范围只能是 30000-32767
- Ingress 好处：Ingress 不会公开任意端口或协议。可能就是带来一些学习成本，需要了解Traefik和Nginx的常用配置和反向代理。

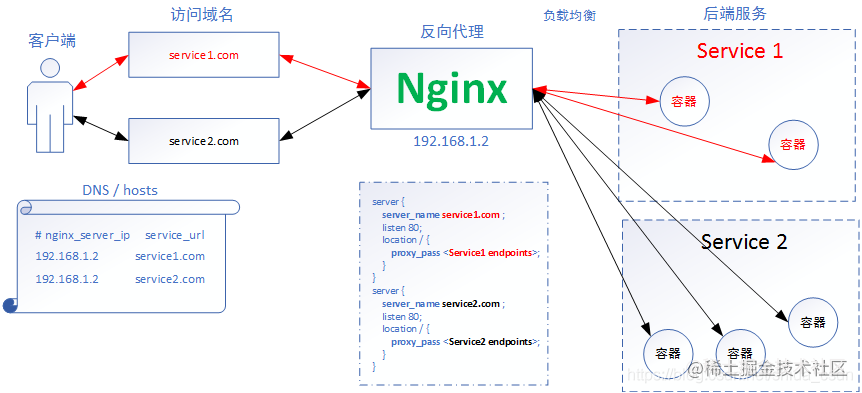

一图看Ingress流程,由图可知，ingress充当的是代理的角色，把外部来的请求，根据路由地址转发到k8s中匹配到的后端service，而且service又连接了deployment，一个deployment又跑了N个Pod，达到了流量转发的目的。
service只能通过四层负载就是ip+端口的形式来暴露
- NodePort：会占用集群机器的很多端口，当集群服务变多的时候，这个缺点就越发明显
- LoadBalancer：每个Service都需要一个LB，比较麻烦和浪费资源，并且需要 k8s之外的负载均衡设备支持
ingress可以提供7层的负责对外暴露接口，而且可以调度不同的业务域，不同的url访问路径的业务流量。
- Ingress：K8s 中的一个资源对象，作用是定义请求如何转发到 service 的规则
- Ingress Controller：具体实现反向代理及负载均衡的程序，对Ingress定义的规则进行解析，根据配置的规则来实现请求转发，有很多种实现方式，如 Nginx、Contor、Haproxy等
1.2 Ingress 组成
ingress controller
将新加入的Ingress转化成Nginx的配置文件并使之生效
ingress服务
将Nginx的配置抽象成一个Ingress对象，每添加一个新的服务只需写一个新的Ingress的yaml文件即可

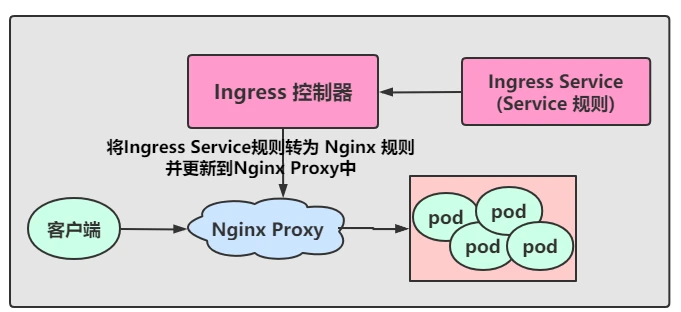

1.3 Ingress 工作原理
1.ingress controller通过和kubernetes api交互，动态的去感知集群中ingress规则变化，
2.然后读取它，按照自定义的规则，规则就是写明了哪个域名对应哪个service，生成一段nginx配置，
3.再写到nginx-ingress-control的pod里，这个Ingress controller的pod里运行着一个Nginx服务，控制器会把生成的nginx配置写入/etc/nginx.conf文件中，
4.然后reload一下使配置生效。以此达到域名分配置和动态更新的问题。
- 用户编写 Ingress Service规则， 说明每个域名对应 K8s集群中的哪个Service
- Ingress控制器会动态感知到 Ingress 服务规则的变化，然后生成一段对应的Nginx反向代理配置
- Ingress控制器会将生成的Nginx配置写入到一个运行中的Nginx服务中，并动态更新
- 然后客户端通过访问域名，实际上Nginx会将请求转发到具体的Pod中，到此就完成了整个请求的过程
1.4 Ingress可以解决什么问题
1.动态配置服务
如果按照传统方式, 当新增加一个服务时, 我们可能需要在流量入口加一个反向代理指向我们新的k8s服务. 而如果用了Ingress, 只需要配置好这个服务, 当服务启动时, 会自动注册到Ingress的中, 不需要而外的操作.
2.减少不必要的端口暴露
配置过k8s的都清楚, 第一步是要关闭防火墙的, 主要原因是k8s的很多服务会以NodePort方式映射出去, 这样就相当于给宿主机打了很多孔, 既不安全也不优雅. 而Ingress可以避免这个问题, 除了Ingress自身服务可能需要映射出去, 其他服务都不要用NodePort方式
2 、部署配置Ingress
2.1 部署文件介绍、准备
https://kubernetes.github.io/ingress-nginx/deploy/
网上的资料一般是基于v0.30.0来安装，但是对于kubernetes@1.22来说要安装ingress-nginx@v1.0.0以上版本（目前最新版本是v1.0.4，本文采用v1.0.0），原因是 kubectl@v1.22版本不再支持v1beta1
如果安装ingress-nginx@v0.30.0版本后启动pod有如下问题
1
|
Failed to list *v1beta1.Ingress: the server could not find the requested resource
|

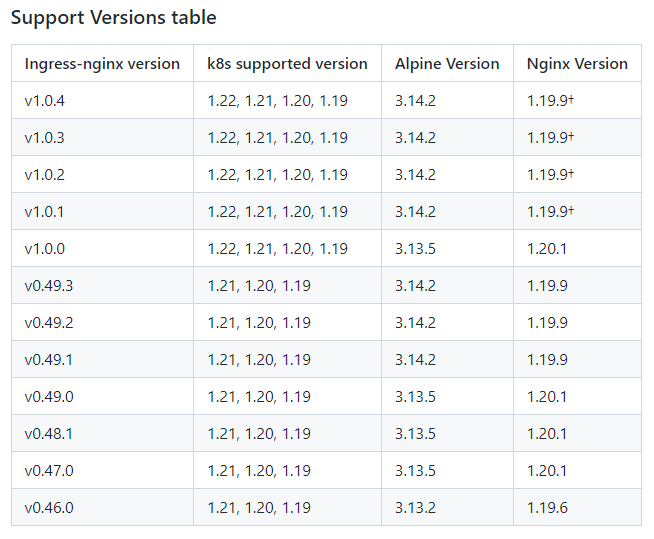

有一个版本的支持情况（https://github.com/kubernetes/ingress-nginx/）
ingress 官方网站 ingress 仓库地址
ingress-nginx v1.0 最新版本 v1.0
适用于 Kubernetes 版本 v1.19+ （包括 v1.19 ）
Kubernetes-v1.22+ 需要使用 ingress-nginx>=1.0，因为networking.k8s.io/v1beta 已经移除
2.2 直接部署 ingress-nginx
直接部署比较简单，直接拉去 girhub 的文件就可以了，如果遇到长时间无响应，可以终止任务从新拉取。
拉取镜像yaml文件
1
2
3
4
5
|
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.0.0/deploy/static/provider/baremetal/deploy.yaml
#更换国内镜像
sed -i 's@k8s.gcr.io/ingress-nginx/controller:v1.0.0\(.*\)@willdockerhub/ingress-nginx-controller:v1.0.0@' deploy.yaml
sed -i 's@k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.0\(.*\)$@hzde0128/kube-webhook-certgen:v1.0@' deploy.yaml
|
2.3 优化yaml配置文件
1、默认 ingress-nginx 随机提供 nodeport 端口，开启 hostNetwork 启用80、443端口。
需要在原deploy.yaml文件上修改修改后再部署
修改点如下
1：k8s.gcr.io/ingress-nginx/controller:v1.0.0@sha256:0851b34f69f69352bf168e6ccf30e1e20714a264ab1ecd1933e4d8c0fc3215c6 改为：willdockerhub/ingress-nginx-controller:v1.0.0
2：k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.0@sha256:f3b6b39a6062328c095337b4cadcefd1612348fdd5190b1dcbcb9b9e90bd8068 改为：jettech/kube-webhook-certgen:v1.0.0
#3：Deployment修改点
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
|
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
spec:
dnsPolicy: ClusterFirstWithHostNet #既能使用宿主机DNS，又能使用集群DNS 原文line：319
hostNetwork: true #与宿主机共享网络
nodeName: k8s-master-1 #设置只能在k8s-master-1节点运行
tolerations: #设置能容忍master污点
- key: node-role.kubernetes.io/master
operator: Exists
containers:
- name: controller
image: willdockerhub/ingress-nginx-controller:v1.0.0
imagePullPolicy: IfNotPresent
如果不关心 ingressClass 或者很多没有 ingressClass 配置的 ingress 对象， 添加参数 ingress-controller --watch-ingress-without-class=true 。
优化上传等参数
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
data:
# header默认大小上限是4k，超过会返回400错误
client_header_buffer_size: "16k"
large_client_header_buffers: "4 16k"
# 请求体默认大小上限是1m，超过会返回413错误
proxy-body-size: "10m"
|
修改后的yaml文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
|
apiVersion: v1
kind: Namespace
metadata:
name: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
data:
# header默认大小上限是4k，超过会返回400错误
client_header_buffer_size: "16k"
large_client_header_buffers: "4 16k"
# 请求体默认大小上限是1m，超过会返回413错误
proxy-body-size: "10m"
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
verbs:
- list
- watch
- apiGroups:
- ''
resources:
- nodes
verbs:
- get
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- namespaces
verbs:
- get
- apiGroups:
- ''
resources:
- configmaps
- pods
- secrets
- endpoints
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- configmaps
resourceNames:
- ingress-controller-leader
verbs:
- get
- update
- apiGroups:
- ''
resources:
- configmaps
verbs:
- create
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller-admission
namespace: ingress-nginx
spec:
type: ClusterIP
ports:
- name: https-webhook
port: 443
targetPort: webhook
appProtocol: https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
annotations:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
type: ClusterIP
ports:
- name: http
port: 80
protocol: TCP
targetPort: http
appProtocol: http
- name: https
port: 443
protocol: TCP
targetPort: https
appProtocol: https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
selector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
revisionHistoryLimit: 10
minReadySeconds: 0
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
spec:
hostNetwork: true
dnsPolicy: ClusterFirstWithHostNet
nodeName: node01
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
containers:
- name: controller
image: willdockerhub/ingress-nginx-controller:v1.0.0
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
args:
- /nginx-ingress-controller
- --election-id=ingress-controller-leader
- --controller-class=k8s.io/ingress-nginx
- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
- --validating-webhook=:8443
- --validating-webhook-certificate=/usr/local/certificates/cert
- --validating-webhook-key=/usr/local/certificates/key
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
runAsUser: 101
allowPrivilegeEscalation: true
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: LD_PRELOAD
value: /usr/local/lib/libmimalloc.so
livenessProbe:
failureThreshold: 5
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
readinessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
ports:
- name: http
containerPort: 80
protocol: TCP
- name: https
containerPort: 443
protocol: TCP
- name: webhook
containerPort: 8443
protocol: TCP
volumeMounts:
- name: webhook-cert
mountPath: /usr/local/certificates/
readOnly: true
resources:
requests:
cpu: 100m
memory: 90Mi
nodeSelector:
kubernetes.io/os: linux
serviceAccountName: ingress-nginx
terminationGracePeriodSeconds: 300
volumes:
- name: webhook-cert
secret:
secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: nginx
namespace: ingress-nginx
spec:
controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
name: ingress-nginx-admission
webhooks:
- name: validate.nginx.ingress.kubernetes.io
matchPolicy: Equivalent
rules:
- apiGroups:
- networking.k8s.io
apiVersions:
- v1
operations:
- CREATE
- UPDATE
resources:
- ingresses
failurePolicy: Fail
sideEffects: None
admissionReviewVersions:
- v1
clientConfig:
service:
namespace: ingress-nginx
name: ingress-nginx-controller-admission
path: /networking/v1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
rules:
- apiGroups:
- admissionregistration.k8s.io
resources:
- validatingwebhookconfigurations
verbs:
- get
- update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
rules:
- apiGroups:
- ''
resources:
- secrets
verbs:
- get
- create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-create
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
template:
metadata:
name: ingress-nginx-admission-create
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: create
image: hzde0128/kube-webhook-certgen:v1.0
imagePullPolicy: IfNotPresent
args:
- create
- --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
- --namespace=$(POD_NAMESPACE)
- --secret-name=ingress-nginx-admission
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
nodeSelector:
kubernetes.io/os: linux
securityContext:
runAsNonRoot: true
runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-patch
namespace: ingress-nginx
annotations:
helm.sh/hook: post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
template:
metadata:
name: ingress-nginx-admission-patch
labels:
helm.sh/chart: ingress-nginx-4.0.1
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.0.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: patch
image: hzde0128/kube-webhook-certgen:v1.0
imagePullPolicy: IfNotPresent
args:
- patch
- --webhook-name=ingress-nginx-admission
- --namespace=$(POD_NAMESPACE)
- --patch-mutating=false
- --secret-name=ingress-nginx-admission
- --patch-failure-policy=Fail
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
nodeSelector:
kubernetes.io/os: linux
securityContext:
runAsNonRoot: true
runAsUser: 2000
|
开始执行
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
$ kubectl apply -f deploy.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
service/ingress-nginx-controller-admission created
service/ingress-nginx-controller created
deployment.apps/ingress-nginx-controller created
ingressclass.networking.k8s.io/nginx created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
serviceaccount/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
|
查看生成状态
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
[root@bt ingress]# kubectl get all -n ingress-nginx
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-admission-create-hdd2b 0/1 Completed 0 5d12h
pod/ingress-nginx-admission-patch-4x2nj 0/1 Completed 1 5d12h
pod/ingress-nginx-controller-6db5ddb4ff-jv4rr 1/1 Running 0 5d12h
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-nginx-controller ClusterIP 172.21.23.131 <none> 80/TCP,443/TCP 5d12h
service/ingress-nginx-controller-admission ClusterIP 172.21.21.247 <none> 443/TCP 5d12h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ingress-nginx-controller 1/1 1 1 5d12h
NAME DESIRED CURRENT READY AGE
replicaset.apps/ingress-nginx-controller-6db5ddb4ff 1 1 1 5d12h
NAME COMPLETIONS DURATION AGE
job.batch/ingress-nginx-admission-create 1/1 3s 5d12h
job.batch/ingress-nginx-admission-patch 1/1 4s 5d12h
[root@bt ingress]# kubectl get endpoints -n ingress-nginx ingress-nginx-controller
NAME ENDPOINTS AGE
ingress-nginx-controller 192.168.102.40:443,192.168.102.40:80 5d12h
[root@bt ingress]# kubectl get endpoints -n ingress-nginx ingress-nginx-controller-admission
NAME ENDPOINTS AGE
ingress-nginx-controller-admission 192.168.102.40:8443 5d12h
|
这个时候ingress-nginx就安装完了，在kubernets之外的机器上访问每个节点，nginx都可以访问了，先不用管404的错误
1
2
3
4
5
6
7
8
9
|
[root@bt ingress]# curl http://node01
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
[root@bt ingress]#
|
3、 测试验证
配置nginx简单yaml文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
|
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: heian
name: ingress-heian
annotations:
k8s.kuboard.cn/workload: ingress-heian
deployment.kubernetes.io/revision: '1'
k8s.kuboard.cn/service: ClusterIP
k8s.kuboard.cn/ingress: 'true'
labels:
app: ingress-heian
spec:
selector:
matchLabels:
app: ingress-heian
revisionHistoryLimit: 10
template:
metadata:
labels:
app: ingress-heian
spec:
affinity: {}
securityContext:
seLinuxOptions: {}
imagePullSecrets: []
restartPolicy: Always
initContainers: []
containers:
- image: 'wangyanglinux/myapp:v1'
imagePullPolicy: IfNotPresent
name: ingress-heian
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
resources:
limits:
cpu: 100m
memory: 100Mi
requests:
cpu: 10m
memory: 10Mi
env:
- name: TZ
value: Asia/Shanghai
- name: LANG
value: C.UTF-8
lifecycle: {}
ports:
- name: web
containerPort: 80
protocol: TCP
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ''
- name: timezone
hostPath:
path: /etc/timezone
type: ''
dnsPolicy: ClusterFirst
dnsConfig:
options: []
schedulerName: default-scheduler
terminationGracePeriodSeconds: 30
progressDeadlineSeconds: 600
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 0
maxSurge: 1
replicas: 1
---
apiVersion: v1
kind: Service
metadata:
namespace: heian
name: ingress-heian
annotations:
k8s.kuboard.cn/workload: ingress-heian
labels:
app: ingress-heian
spec:
selector:
app: ingress-heian
type: ClusterIP
ports:
- port: 80
targetPort: 80
protocol: TCP
name: ingress-web-1
nodePort: 0
sessionAffinity: None
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
namespace: heian
name: ingress-heian
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/proxy-body-size: "0"
nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
kubernetes.io/tls-acme: "true"
cert-manager.io/cluster-issuer: "example-issuer"
labels:
app: ingress-heian
spec:
rules:
- host: ingress.ownit.top #域名
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: ingress-heian
port:
number: 80
|
测试完成
1
2
3
4
5
6
7
8
9
10
11
12
13
|
[root@bt heian]# kubectl get pod,svc,ingress -n heian
NAME READY STATUS RESTARTS AGE
pod/ingress-heian-7ff9cbd9d5-w5f7v 1/1 Running 0 5d
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-heian ClusterIP 172.21.24.68 <none> 80/TCP 5d
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ingress-heian <none> ingress.ownit.top 192.168.102.40 80 5d

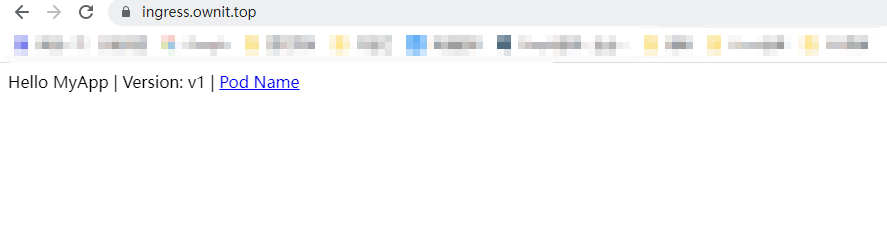

[root@bt heian]# curl https://ingress.ownit.top
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>
[root@bt heian]# curl https://ingress.ownit.top/hostname.html
ingress-heian-7ff9cbd9d5-w5f7v
|

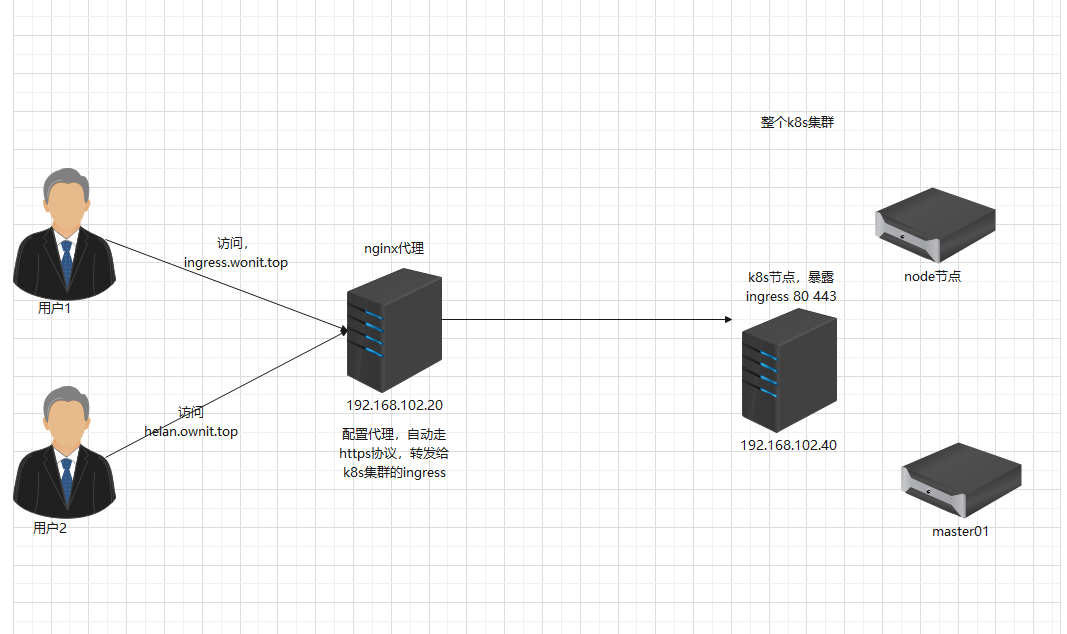

4、NGINX作为反向代理
1、安装nginx
1
|
yum install nginx nginx-mod-stream -y
|
2、配置kubernetes-cluster.conf
1
2
3
4
5
|
[root@bt nginx]# cat kubernetes-cluster.conf
upstream kubernetes-cluster {
server 192.168.102.40 weight=5;
keepalive 16;
}
|
3、配置ingress访问接口
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
[root@bt nginx]# cat ingress.ownit.top.conf
server {
listen 80;
server_name ingress.ownit.top;
rewrite ^/(.*)$ https://$host/$1 permanent;
# IP白名单
include /opt/nginx/whitelist/corporation.conf;
}
server {
listen 443 ssl;
server_name ingress.ownit.top;
# IP白名单
include /opt/nginx/whitelist/corporation.conf;
#ssl on;
ssl_certificate /opt/nginx/ssl/ownit.top.crt;
ssl_certificate_key /opt/nginx/ssl/ownit.top.key;
include ssl.conf;
location / {
proxy_pass http://kubernetes-cluster;
include https_proxy.conf;
}
access_log /www/wwwlogs/dns.ownit.top.log;
error_log /www/wwwlogs/dns.ownit.top.error.log;
}
|
4、则可以HTTPS访问到k8s里面的ingress域名
