1、项目背景
随着云原生技术的不断发展，容器化应用已成为企业构建云原生架构的重要方式。而随着集群规模不断扩大，跨主机通信的需求也越来越重要。在 Kubernetes 集群中，Pod 是最小的调度和管理单位，而网络也是 Kubernetes 中最重要的组成部分。为了满足跨主机通信的需求，社区提供了各种各样的解决方案，其中 Calico 是一种利用 BGP 协议解决 Pod 与外部网络通信的解决方案。
2、简介
Calico 是一个开源的容器网络解决方案，可以通过使用 BGP 协议来管理容器网络。与传统的基于 VXLAN 的解决方案相比，使用 Calico 可以避免网络数据包的封装和解封过程，提高了网络传输的效率和吞吐量。在 Kubernetes 集群中，Calico 可以用来打通 Pod 和局域网的网络，从而实现跨主机通信。
3、背景
4、使用Calico打通Pod网络
1、[Kubernetes Master节点]安装calico控制命令calicoctl
1
2
3
|
curl -O -L https://github.com/projectcalico/calicoctl/releases/download/v3.8.9/calicoctl
chmod +x calicoctl
mv calicoctl /usr/bin/calicoctl
|
2、 [calicoctl安装节点]添加calico配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
mkdir /etc/calico
cat > /etc/calico/calicoctl.cfg <<EOF
apiVersion: projectcalico.org/v3
kind: CalicoAPIConfig
metadata:
spec:
datastoreType: "kubernetes"
kubeconfig: "/root/.kube/config"
EOF
# 测试
calicoctl version
Client Version: v3.8.9
Git commit: 0991d2fb
Cluster Version: v3.8.9 # 出现此行代表配置正确
Cluster Type: k8s,bgp,kdd # 出现此行代表配置正确
|
3、 [calicoctl安装节点]配置集群路由反射器，node节点与master节点对等、master节点彼此对等
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
|
# 在本环境下将kubernetes master节点作为反射器使用
# 查看节点信息
[root@master1 node]# kubectl get node
NAME STATUS ROLES AGE VERSION
master Ready control-plane,master 3h19m v1.22.4
node1 Ready <none> 3h16m v1.22.4
node2 Ready <none> 3h15m v1.22.4
# 导出Master节点配置(多个导出)
calicoctl get node k8s-test-master-1.fjf --export -o yaml > k8s-test-master-1.yml
calicoctl get node k8s-test-master-2.fjf --export -o yaml > k8s-test-master-2.yml
calicoctl get node k8s-test-master-3.fjf --export -o yaml > k8s-test-master-3.yml
calicoctl get node master --export -o yaml > k8s-test-master-1.yml
# 在3个Master节点配置中添加以下配置用于标识该节点为反射器
metadata:
......
labels:
......
i-am-a-route-reflector: true
......
spec:
bgp:
......
routeReflectorClusterID: 224.0.0.1
# 更新节点配置
calicoctl apply -f k8s-test-master-1.yml

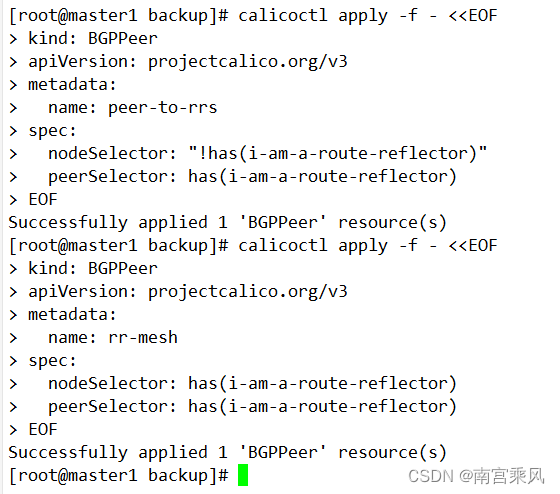

# 其他节点与反射器对等
calicoctl apply -f - <<EOF
kind: BGPPeer
apiVersion: projectcalico.org/v3
metadata:
name: peer-to-rrs
spec:
nodeSelector: "!has(i-am-a-route-reflector)"
peerSelector: has(i-am-a-route-reflector)
EOF
# 反射器彼此对等
calicoctl apply -f - <<EOF
kind: BGPPeer
apiVersion: projectcalico.org/v3
metadata:
name: rr-mesh
spec:
nodeSelector: has(i-am-a-route-reflector)
peerSelector: has(i-am-a-route-reflector)
EOF
|
4、 [calicoctl安装节点]配置Master节点与核心交换机对等
1
2
3
4
5
6
7
8
9
10
11
12
|
calicoctl apply -f - <<EOF
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
name: rr-border
spec:
nodeSelector: has(i-am-a-route-reflector)
peerIP: 192.168.83.1
asNumber: 64512
EOF
# peerIP: 核心交换机IP
# asNumber: 用于和核心交换机对等的ID
|
5、 [192.168.83.1,设备型号：cisco 3650]配置核心交换与Master(反射器)节点对等，这一步需要在对端BGP设备上操作，这里是用核心交换机
1
2
3
4
5
|
router bgp 64512
bgp router-id 192.168.83.1
neighbor 192.168.83.36 remote-as 64512
neighbor 192.168.83.49 remote-as 64512
neighbor 192.168.83.54 remote-as 64512
|
6、查看BGP 对等状态
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
calicoctl node status
# INFO字段全部为Established 即为正常
Calico process is running.
IPv4 BGP status
+---------------+---------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+---------------+---------------+-------+----------+-------------+
| 192.168.83.1 | node specific | up | 06:38:55 | Established |
| 192.168.83.54 | node specific | up | 06:38:55 | Established |
| 192.168.83.22 | node specific | up | 06:38:55 | Established |
| 192.168.83.37 | node specific | up | 06:38:55 | Established |
| 192.168.83.49 | node specific | up | 06:38:55 | Established |
| 192.168.83.52 | node specific | up | 06:38:55 | Established |
+---------------+---------------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.
|
7、测试，使用其他网段，如192.168.82.0/24的虚拟机ping 某一个pod ip，能正常通信即代表成功
1
2
3
4
5
6
7
8
9
10
|
[dev][root@spring-boot-demo1-192.168.82.85 ~]# ping -c 3 172.15.190.2
PING 172.15.190.2 (172.15.190.2) 56(84) bytes of data.
64 bytes from 172.15.190.2: icmp_seq=1 ttl=62 time=0.677 ms
64 bytes from 172.15.190.2: icmp_seq=2 ttl=62 time=0.543 ms
64 bytes from 172.15.190.2: icmp_seq=3 ttl=62 time=0.549 ms
--- 172.15.190.2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2000ms
rtt min/avg/max/mdev = 0.543/0.589/0.677/0.067 ms
[dev][root@spring-boot-demo1-192.168.82.85 ~]#
|
5、使用Calico打通Svc网络
1
2
3
4
|
[root@master1 node]# kubectl cluster-info dump|grep -i "service-cluster-ip-range"
"--service-cluster-ip-range=172.16.0.0/16",
"--service-cluster-ip-range=172.16.0.0/16",
|
2、 [Kubernetes Master]启用SVC网络广播
1
2
|
[root@master1 ~]# kubectl patch ds -n kube-system calico-node --patch '{"spec": {"template": {"spec": {"containers": [{"name": "calico-node", "env": [{"name": "CALICO_ADVERTISE_CLUSTER_IPS", "value": "172.16.0.0/16"}]}]}}}}'
daemonset.apps/calico-node patched
|
3、测试
正常情况下启用BGP广播后，3分钟内核心交换即可接收到路由信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
# 找到集群DNS服务进行测试
kubectl get svc kube-dns -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 172.16.0.10 <none> 53/UDP,53/TCP,9153/TCP 3d21h
# 找一个Pod IP在集群外进行解析测试，如果可以解析到结果说明SVC网络已经打通
[dev][root@spring-boot-demo1-192.168.82.85 ~]# dig -x 172.15.190.2 @172.16.0.10
; <<>> DiG 9.9.4-RedHat-9.9.4-61.el7_5.1 <<>> -x 172.15.190.2 @172.16.0.10
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 23212
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;2.190.15.172.in-addr.arpa. IN PTR
;; ANSWER SECTION:
2.190.15.172.in-addr.arpa. 30 IN PTR 172-15-190-2.ingress-nginx.ingress-nginx.svc.k8s-test.fjf. # 可以正常解析到主机记录
;; Query time: 3 msec
;; SERVER: 172.16.0.10#53(172.16.0.10)
;; WHEN: Fri Jul 09 15:26:55 CST 2021
;; MSG SIZE rcvd: 150
|
