K8S部署Apollo配置中心

参考文档: https://github.com/apolloconfig/apollo/tree/v1.8.0

1
2
3


	[K8S部署apollo配置中心](https://www.cnblogs.com/Fengyinyong/p/14903725.html)

	[apollo官网文档](https://www.apolloconfig.com/#/zh/README)

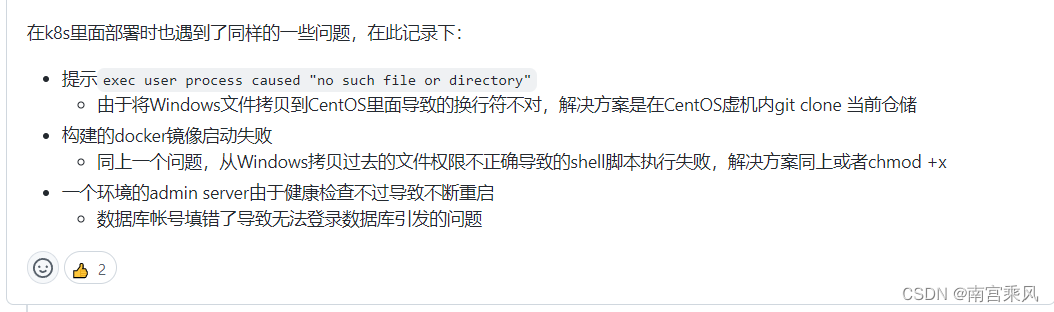

1、错误问题记录

在k8s里面部署时也遇到了同样的一些问题，在此记录下：

提示exec user process caused "no such file or directory"
- 由于将Windows文件拷贝到CentOS里面导致的换行符不对，解决方案是在CentOS虚机内git clone 当前仓储
构建的docker镜像启动失败
- 同上一个问题，从Windows拷贝过去的文件权限不正确导致的shell脚本执行失败，解决方案同上或者chmod +x
一个环境的admin server由于健康检查不过导致不断重启
- 数据库帐号填错了导致无法登录数据库引发的问题

2、介绍

Apollo（阿波罗）是携程框架部门研发的分布式配置中心，能够集中化管理应用不同环境、不同集群的配置，配置修改后能够实时推送到应用端，并且具备规范的权限、流程治理等特性，适用于微服务配置管理场景。

服务端基于Spring Boot和Spring Cloud开发，打包后可以直接运行，不需要额外安装Tomcat等应用容器。

Java客户端不依赖任何框架，能够运行于所有Java运行时环境，同时对Spring/Spring Boot环境也有较好的支持。

.Net客户端不依赖任何框架，能够运行于所有.Net运行时环境。

‍

说明：最近在用K8S部署微服务，而微服务的配置文件众多，需要一个配置中心来处理配置文件。于是采用apollo来作为配置中心。本实例介绍了如何采用K8S部署高可用的apollo集群。

‍

3、环境配置

mysql5.7.39

注意：mysql的版本一定要大于5.7，不然导入数据库sql文件会报错的

因为实验方便，给root远程登录权限（切忌，生产环境，禁用root，单独数据库配置单独账号）

数据库名称	IP	作用	远程账号
DevApolloConfigDB	192.168.102.20	DEV环境的配置	root
ProdApolloConfigDB	192.168.102.20	PRO环境的配置	root
ApolloPortalDB	192.168.102.20	WEB界面管理	root

‍

安装Apollo版本：1.8.0（注意：sql文件和jar版本一定要对应）

（目前官方给4套环境部署安装，我这边采用PRO和DEV环境）

已经构建成功的Kubernetes集群，

1
2
3
4
5


[root@bt nginx]# kubectl get node
NAME       STATUS   ROLES                  AGE     VERSION
master01   Ready    control-plane,master   2d16h   v1.23.0
node01     Ready    <none>                 2d16h   v1.23.0
node02     Ready    <none>                 2d16h   v1.23.0

4、Apollo安装

‍

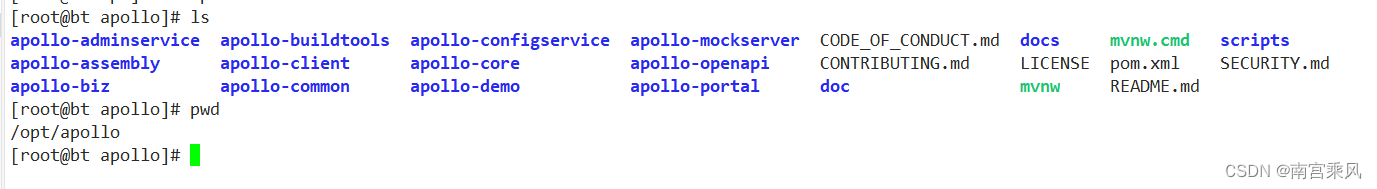

1、克隆Apollo代码

官方地址：https://github.com/apolloconfig/apollo

在Centos上克隆（因为字符原因，所以要在Linux克隆，千万不要win上下载上传，容易出问题）

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


git clone https://github.com/apolloconfig/apollo.git

cd apollo

#查看版本，
git tag
#切换分支
git checkout v1.8.0
#创建新的分支，切换
git checkout -b heian

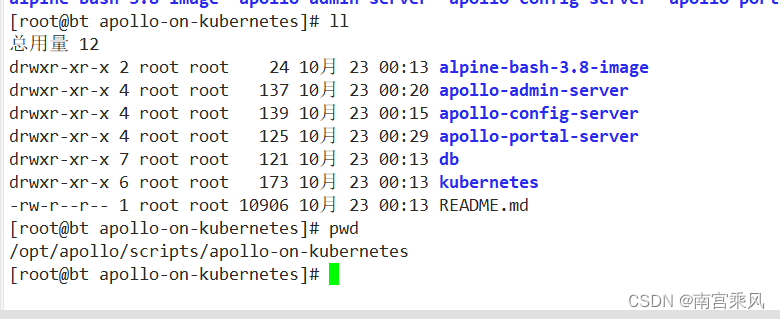

在这里插入图片描述

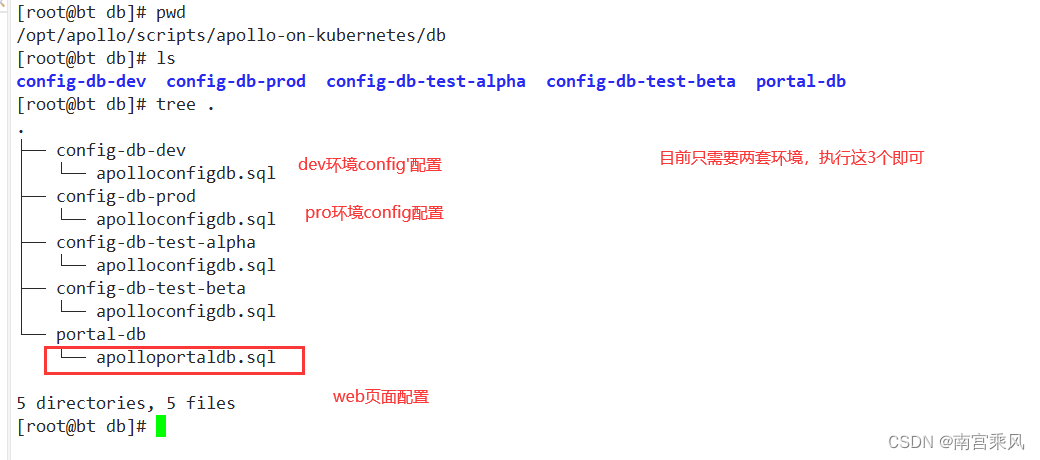

2、初始化Mysql数据库

在这里插入图片描述

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30


[root@bt db]# pwd
/opt/apollo/scripts/apollo-on-kubernetes/db
[root@bt db]# ls
config-db-dev  config-db-prod  config-db-test-alpha  config-db-test-beta  portal-db
[root@bt db]# tree .
.
├── config-db-dev
│?? └── apolloconfigdb.sql
├── config-db-prod
│?? └── apolloconfigdb.sql
├── config-db-test-alpha
│?? └── apolloconfigdb.sql
├── config-db-test-beta
│?? └── apolloconfigdb.sql
└── portal-db
    └── apolloportaldb.sql

大胆执行，数据库名称官方定义过，不会冲突
执行dev环境
 cd config-db-dev/
[root@bt config-db-dev]# mysql -uroot -p < apolloconfigdb.sql
Enter password:
执行pro环境
 cd config-db-pro/
[root@bt config-db-dev]# mysql -uroot -p < apolloconfigdb.sql
Enter password:

执行portal环境
cd portal-db/
[root@bt config-db-dev]# mysql -uroot -p < apolloportaldb.sql

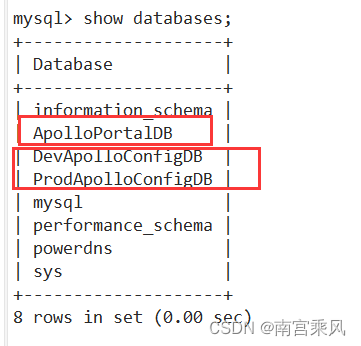

在这里插入图片描述

3、下载jar版本

‍

官方下载地址：https://github.com/apolloconfig/apollo/releases/tag/v1.8.0

1
2
3
4


cd /opt/apollo
wget https://github.com/apolloconfig/apollo/releases/download/v1.8.0/apollo-adminservice-1.8.0-github.zip
wget https://github.com/apolloconfig/apollo/releases/download/v1.8.0/apollo-configservice-1.8.0-github.zip
wget https://github.com/apolloconfig/apollo/releases/download/v1.8.0/apollo-portal-1.8.0-github.zip

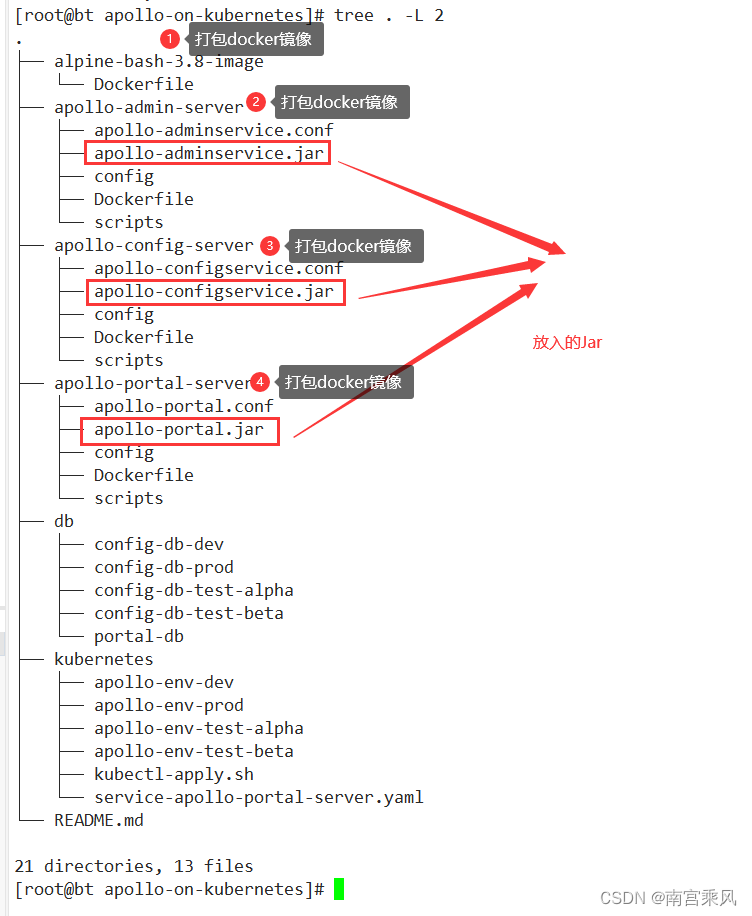

进行解压，需要其中的jar

1
2
3
4
5
6
7
8


​    解压 apollo-portal-1.8.0-github.zip
​  获取 apollo-portal-1.8.0.jar, 重命名为 apollo-portal.jar, 放到 scripts/apollo-on-kubernetes/apollo-portal-server

​    解压 apollo-adminservice-1.8.0-github.zip
​  获取 apollo-adminservice-1.8.0.jar, 重命名为 apollo-adminservice.jar, 放到 scripts/apollo-on-kubernetes/apollo-admin-server

​    解压 apollo-configservice-1.8.0-github.zip
​  获取 apollo-configservice-1.8.0.jar, 重命名为 apollo-configservice.jar, 放到 scripts/apollo-on-kubernetes/apollo-config-se

在这里插入图片描述

4、构建Docker镜像

1、采用K8S部署apollo时，需要用到多个镜像。这些镜像，需要自己构建

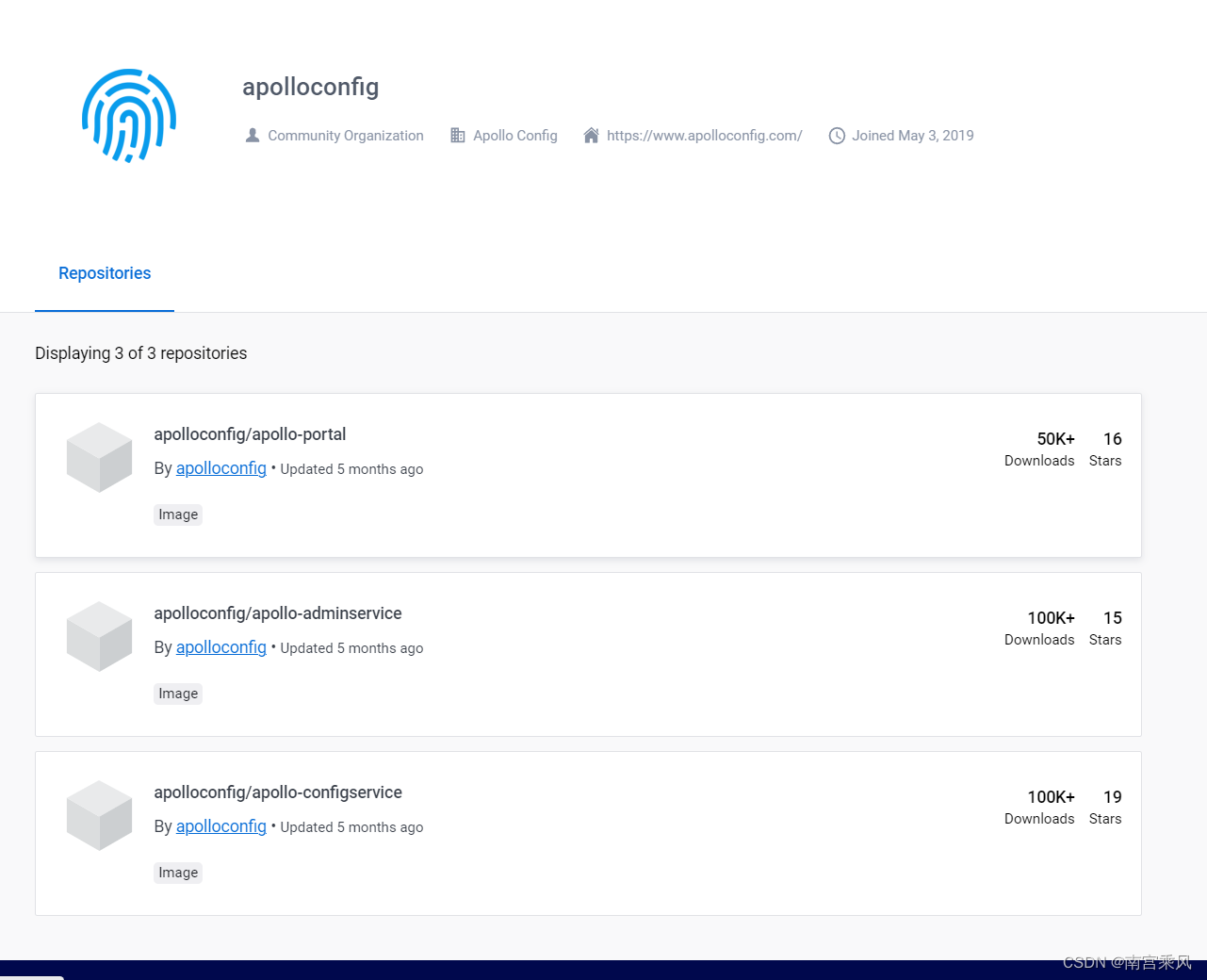

2、如果麻烦，可以去官方镜像 https://hub.docker.com/u/apolloconfig

在这里插入图片描述

1
2
3
4
5
6


docker pull apolloconfig/apollo-configservice:1.8.0
docker pull apolloconfig/apollo-adminservice:1.8.0
docker pull apolloconfig/apollo-portal:1.8.0
还需要一个alpine-bash-3.8 做初始化镜像操作
docker pull zgadocker/alpine-bash-3.8-image:latest
测试这个不行，就按照下方自己打包

在这里插入图片描述

alpine-bash-3.8-image

1
2
3


[root@bt apollo-on-kubernetes]# cd alpine-bash-3.8-image
[root@bt alpine-bash-3.8-image]# docker build -t harbor.ownit.top/ownit/alpine-bash:3.8 .
[root@bt alpine-bash-3.8-image]# docker push harbor.ownit.top/ownit/alpine-bash:3.8

apollo-config-server

1
2
3


[root@bt apollo-on-kubernetes]# cd apollo-config-server
[root@bt apollo-config-server]# docker build -t harbor.ownit.top/ownit/apollo-configservice:1.8.0 .
[root@bt apollo-config-server]# docker push harbor.ownit.top/ownit/apollo-configservice:1.8.0

apollo-admin-server

1
2
3


[root@bt apollo-on-kubernetes]# cd apollo-admin-server
[root@bt apollo-admin-server]# docker build -t harbor.ownit.top/ownit/apollo-adminservice:1.8.0 .
[root@bt apollo-admin-server]# docker  push harbor.ownit.top/ownit/apollo-adminservice:1.8.0

apollo-portal-server

1
2
3


[root@bt apollo-on-kubernetes]# cd apollo-portal-server
[root@bt apollo-portal-server]# docker build -t harbor.ownit.top/ownit/apollo-portal:1.8.0 .
[root@bt apollo-portal-server]# docker push harbor.ownit.top/ownit/apollo-portal:1.8.0

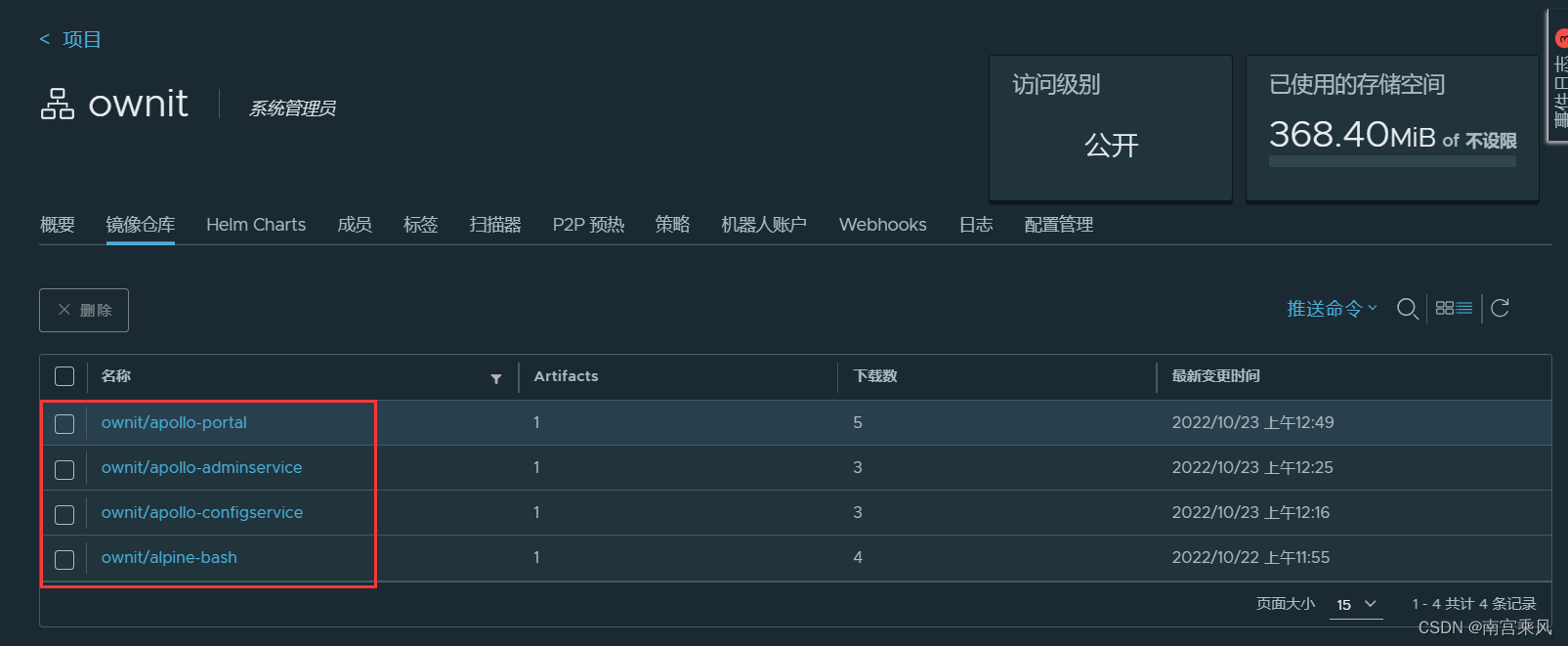

验证

在这里插入图片描述

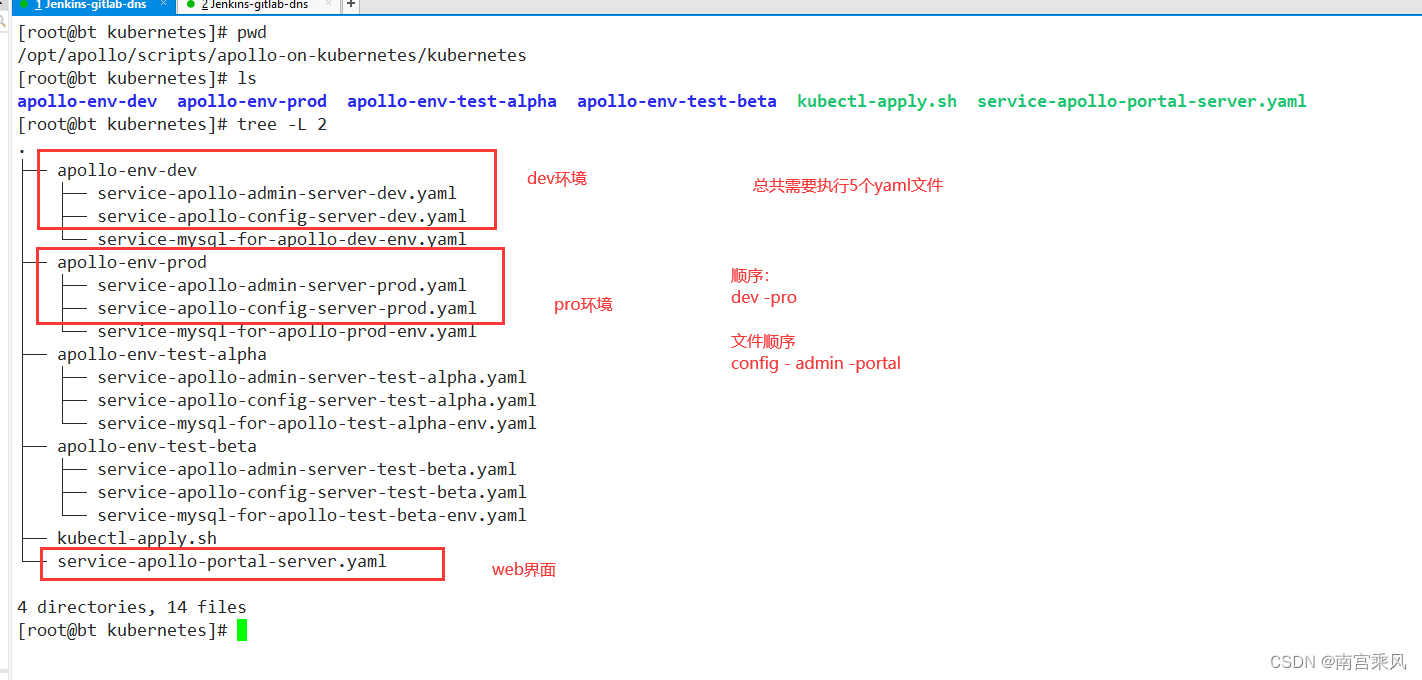

5、配置Yaml文件

在这里插入图片描述

环境	文件名称	执行顺序
dev	service-apollo-config-server-dev.yaml	1
dev	service-apollo-admin-server-dev.yaml	2
pro	service-apollo-config-server-prod.yaml	3
pro	service-apollo-admin-server-prod.yaml	4
portal	service-apollo-portal-server.yaml	5

1、service-apollo-config-server-dev.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127


---
# configmap for apollo-config-server-dev
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-dev
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://192.168.102.20:3306/DevApolloConfigDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-dev-0.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-1.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-2.service-apollo-meta-server-dev:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-dev
  labels:
    app: service-apollo-meta-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-dev
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-dev
  labels:
    app: service-apollo-config-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30002
  selector:
    app: pod-apollo-config-server-dev
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-dev
  labels:
    app: statefulset-apollo-config-server-dev
spec:
  serviceName: service-apollo-meta-server-dev
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-dev
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-dev
    spec:
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - pod-apollo-config-server-dev
              topologyKey: kubernetes.io/hostname

      volumes:
        - name: volume-configmap-apollo-config-server-dev
          configMap:
            name: configmap-apollo-config-server-dev
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: harbor.ownit.top/ownit/apollo-configservice:1.8.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-config-server-dev
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-dev
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-dev.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds:  120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

2、service-apollo-admin-server-dev.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114


---
# configmap for apollo-admin-server-dev
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-dev
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://192.168.102.20:3306/DevApolloConfigDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-dev-0.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-1.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-2.service-apollo-meta-server-dev:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-dev
  labels:
    app: service-apollo-admin-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
  selector:
    app: pod-apollo-admin-server-dev
  type: ClusterIP
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-dev
  labels:
    app: deployment-apollo-admin-server-dev
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-dev
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-dev
    spec:
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - pod-apollo-admin-server-dev
              topologyKey: kubernetes.io/hostname

      volumes:
        - name: volume-configmap-apollo-admin-server-dev
          configMap:
            name: configmap-apollo-admin-server-dev
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: harbor.ownit.top/ownit/alpine-bash:3.8
          name: check-service-apollo-config-server-dev
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-dev.sre:8080"]

      containers:
        - image: harbor.ownit.top/ownit/apollo-adminservice:1.8.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-dev
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-dev
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-dev.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

3、service-apollo-config-server-prod.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127



---
# configmap for apollo-config-server-prod
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-prod
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://192.168.102.20:3306/ProdApolloConfigDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-prod-0.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-1.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-2.service-apollo-meta-server-prod:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-prod
  labels:
    app: service-apollo-meta-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-prod
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-prod
  labels:
    app: service-apollo-config-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30005
  selector:
    app: pod-apollo-config-server-prod
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-prod
  labels:
    app: statefulset-apollo-config-server-prod
spec:
  serviceName: service-apollo-meta-server-prod
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-prod
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-prod
    spec:
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - pod-apollo-config-server-prod
              topologyKey: kubernetes.io/hostname

      volumes:
        - name: volume-configmap-apollo-config-server-prod
          configMap:
            name: configmap-apollo-config-server-prod
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: harbor.ownit.top/ownit/apollo-configservice:1.8.0
          securityContext:
            privileged: true
          imagePullPolicy: Always
          name: container-apollo-config-server-prod
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-prod
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties
          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-prod.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

3、service-apollo-admin-server-prod.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114


---
# configmap for apollo-admin-server-prod
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-prod
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://192.168.102.20:3306/ProdApolloConfigDB?characterEncoding=utf8&serverTimezone=Asia/Shanghai
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-prod-0.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-1.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-2.service-apollo-meta-server-prod:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-prod
  labels:
    app: service-apollo-admin-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
  selector:
    app: pod-apollo-admin-server-prod
  type: ClusterIP
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-prod
  labels:
    app: deployment-apollo-admin-server-prod
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-prod
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-prod
    spec:
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - pod-apollo-admin-server-prod
              topologyKey: kubernetes.io/hostname

      volumes:
        - name: volume-configmap-apollo-admin-server-prod
          configMap:
            name: configmap-apollo-admin-server-prod
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: harbor.ownit.top/ownit/alpine-bash:3.8
          name: check-service-apollo-config-server-prod
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 50 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-prod.sre:8080"]

      containers:
        - image: harbor.ownit.top/ownit/apollo-adminservice:1.8.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-prod
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-prod
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-prod.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

5、service-apollo-portal-server.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169


---
# 为外部 mysql 服务设置 service
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-mysql-for-portal-server
  labels:
    app: service-mysql-for-portal-server
spec:
  ports:
    - protocol: TCP
      port: 3306
      targetPort: 3306
  type: ClusterIP
  sessionAffinity: None
---
kind: Endpoints
apiVersion: v1
metadata:
  namespace: sre
  name: service-mysql-for-portal-server
subsets:
  - addresses:
      # 更改为你的 mysql addresses, 例如 1.1.1.1
      - ip: 192.168.102.20
    ports:
      - protocol: TCP
        port: 3306

---
# configmap for apollo-portal-server
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-portal-server
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://192.168.102.20:3306/ApolloPortalDB?characterEncoding=utf8
    # mysql username
    spring.datasource.username = root
    # mysql password
    spring.datasource.password = 123456
  apollo-env.properties: |
    dev.meta=http://service-apollo-config-server-dev.sre:8080
    fat.meta=http://service-apollo-config-server-test-alpha.sre:8080
    uat.meta=http://service-apollo-config-server-test-beta.sre:8080
    pro.meta=http://service-apollo-config-server-prod.sre:8080

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-portal-server
  labels:
    app: service-apollo-portal-server
spec:
  ports:
    - protocol: TCP
      port: 8070
      targetPort: 8070
      nodePort: 30001
  selector:
    app: pod-apollo-portal-server
  type: NodePort
  # portal session 保持
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-portal-server
  labels:
    app: deployment-apollo-portal-server
spec:
  # 3 个实例
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-portal-server
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-portal-server
    spec:
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - pod-apollo-portal-server
              topologyKey: kubernetes.io/hostname

      volumes:
        - name: volume-configmap-apollo-portal-server
          configMap:
            name: configmap-apollo-portal-server
            items:
              - key: application-github.properties
                path: application-github.properties
              - key: apollo-env.properties
                path: apollo-env.properties

      initContainers:
        # 确保 admin-service 正常提供服务
        - image: harbor.ownit.top/ownit/alpine-bash:3.8
          name: check-service-apollo-admin-server-dev
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-dev.sre:8090"]
        # - image: harbor.ownit.top/ownit/alpine-bash:3.8
        #   name: check-service-apollo-admin-server-alpha
        #   command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-test-alpha.sre:8090"]
        # - image: harbor.ownit.top/ownit/alpine-bash:3.8
        #   name: check-service-apollo-admin-server-beta
        #   command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-test-beta.sre:8090"]
        - image: harbor.ownit.top/ownit/alpine-bash:3.8
          name: check-service-apollo-admin-server-prod
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-prod.sre:8090"]

      containers:
        - image: harbor.ownit.top/ownit/apollo-portal:1.8.0    # 更改为你的 docker registry 下的 image
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-portal-server
          ports:
            - protocol: TCP
              containerPort: 8070

          volumeMounts:
            - name: volume-configmap-apollo-portal-server
              mountPath: /apollo-portal-server/config/application-github.properties
              subPath: application-github.properties
            - name: volume-configmap-apollo-portal-server
              mountPath: /apollo-portal-server/config/apollo-env.properties
              subPath: apollo-env.properties

          env:
            - name: APOLLO_PORTAL_SERVICE_NAME
              value: "service-apollo-portal-server.sre"

          readinessProbe:
            tcpSocket:
              port: 8070
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8070
            # 120s 内, server 未启动则重启 container
            initialDelaySeconds: 120
            periodSeconds: 15

      dnsPolicy: ClusterFirst
      restartPolicy: Always

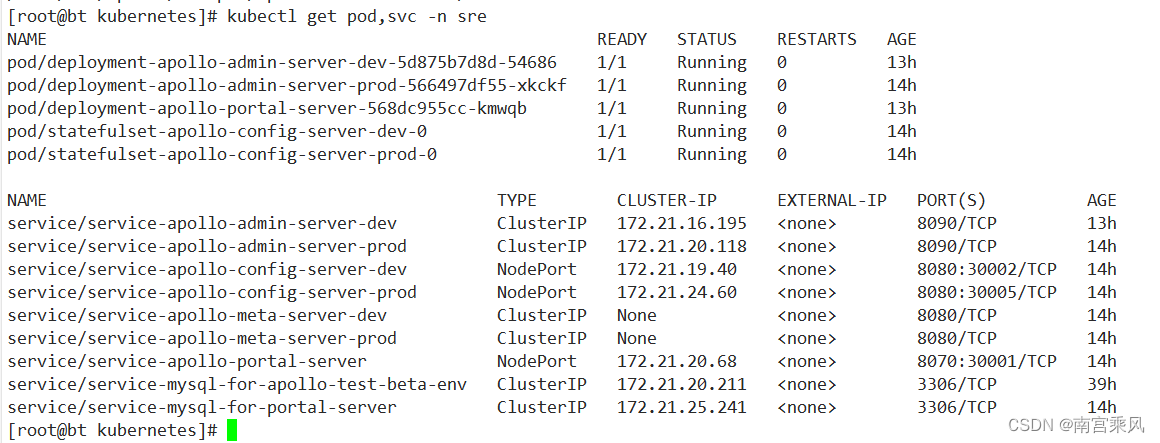

6、执行Yaml文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


# create namespace
kubectl create namespace sre

dev环境
kubectl apply -f apollo-env-dev/service-apollo-config-server-dev.yaml --record
kubectl apply -f apollo-env-dev/service-apollo-admin-server-dev.yaml --record

pro环境
kubectl apply -f apollo-env-prod/service-apollo-config-server-prod.yaml --record
kubectl apply -f apollo-env-prod/service-apollo-admin-server-prod.yaml --record

在这里插入图片描述

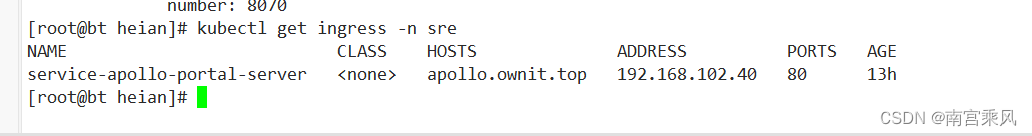

7、配置ingress域名

apollo-ingress.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27


---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  namespace: sre
  name: service-apollo-portal-server
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/proxy-body-size: "0"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
    kubernetes.io/tls-acme: "true"
    cert-manager.io/cluster-issuer: "example-issuer"
  labels:
    app: service-apollo-portal-server
spec:
  rules:
  - host: apollo.ownit.top
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: service-apollo-portal-server
            port:
              number: 8070

在这里插入图片描述

8、配置nginx代理

‍

nginx配置

apollo.ownit.top.conf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31


server {
        listen       80;
        server_name  apollo.ownit.top;
        rewrite ^/(.*)$ https://$host/$1 permanent;
        # IP白名单
        include /opt/nginx/whitelist/corporation.conf;
}
server {
        listen       443 ssl;
        server_name  apollo.ownit.top;
        # IP白名单
        include /opt/nginx/whitelist/corporation.conf;

        #ssl                   on;
        ssl_certificate      /opt/nginx/ssl/ownit.top.crt;
        ssl_certificate_key  /opt/nginx/ssl/ownit.top.key;
        include ssl.conf;

        location / {
            proxy_pass  http://kubernetes-cluster; #转发到k8s的ingress 80端口
            include https_proxy.conf;
        }
	access_log  /www/wwwlogs/apollo.ownit.top.log;
    error_log  /www/wwwlogs/apollo.ownit.top.error.log;

}

[root@bt nginx]# nginx  -t
nginx: the configuration file /www/server/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /www/server/nginx/conf/nginx.conf test is successful
[root@bt nginx]# nginx  -s reload

kubernetes-cluster.conf 转发

1
2
3
4
5


[root@bt nginx]# cat kubernetes-cluster.conf
upstream kubernetes-cluster {
  server 192.168.102.40 weight=5;
  keepalive 16;
}

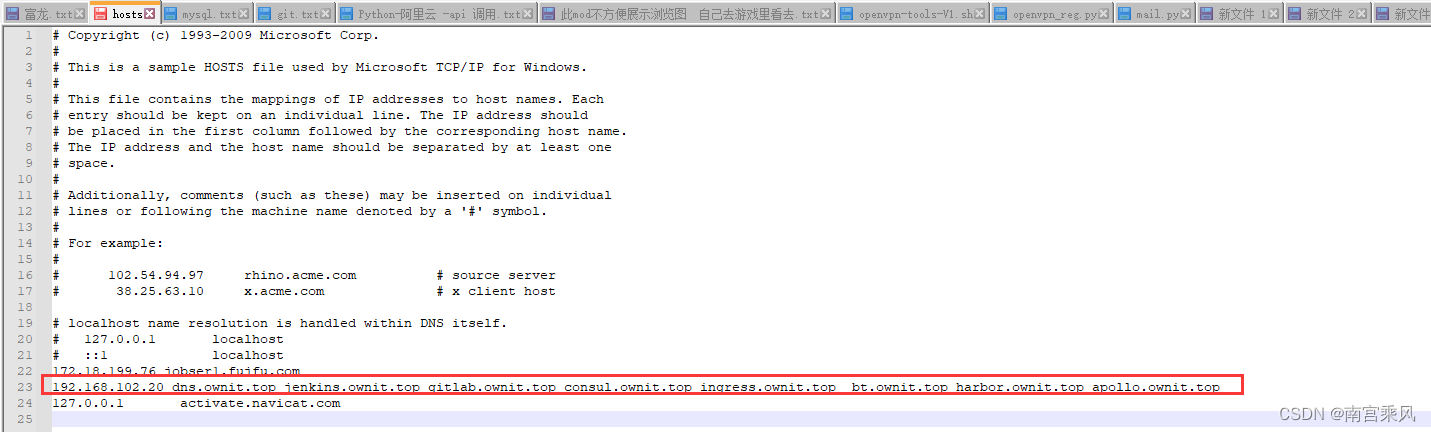

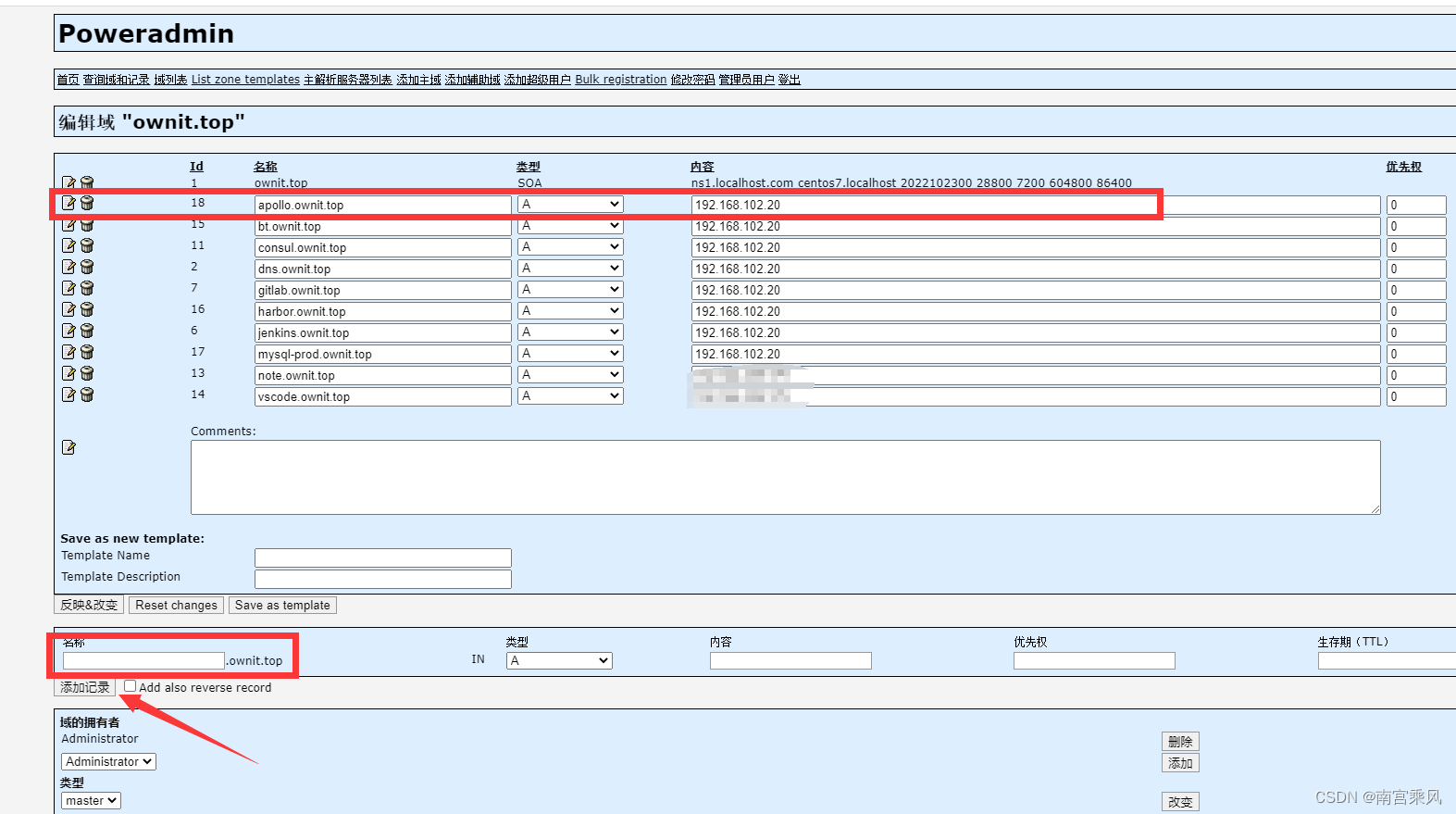

9、配置powerdns域名解析

在这里插入图片描述

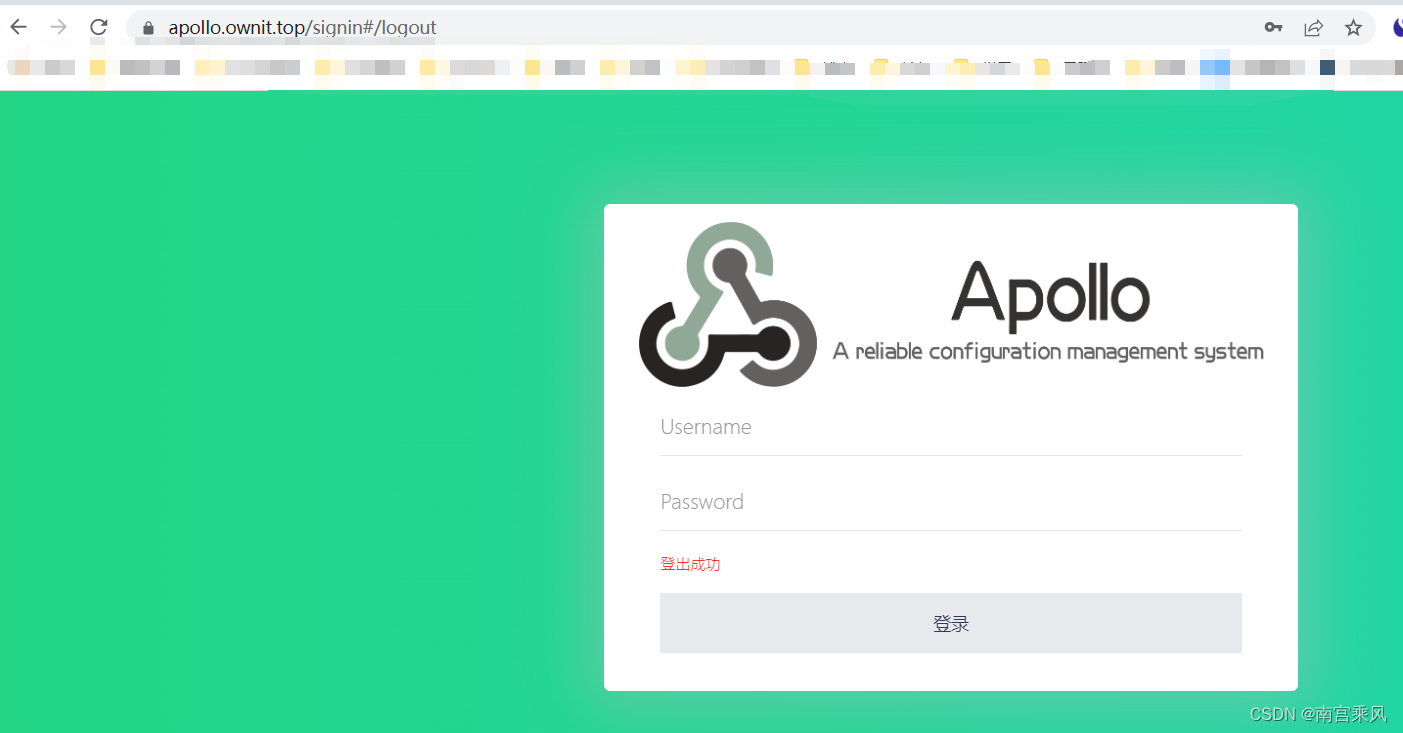

10、测试验证

https://apollo.ownit.top/

默认账号/密码：apollo / admin

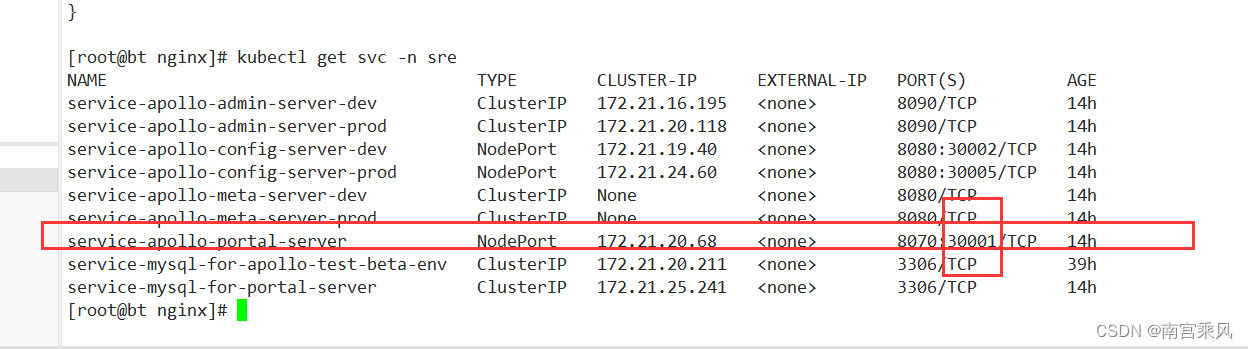

如果没有ingress，则可使用nodeport访问

k8s节点ip+30001 端口即可访问

http://k8s节点ip:30001/

在这里插入图片描述

5、Apollo配置使用

1、添加超级管理员用户

1、管理员用户选择管理员工具->系统参数

在这里插入图片描述

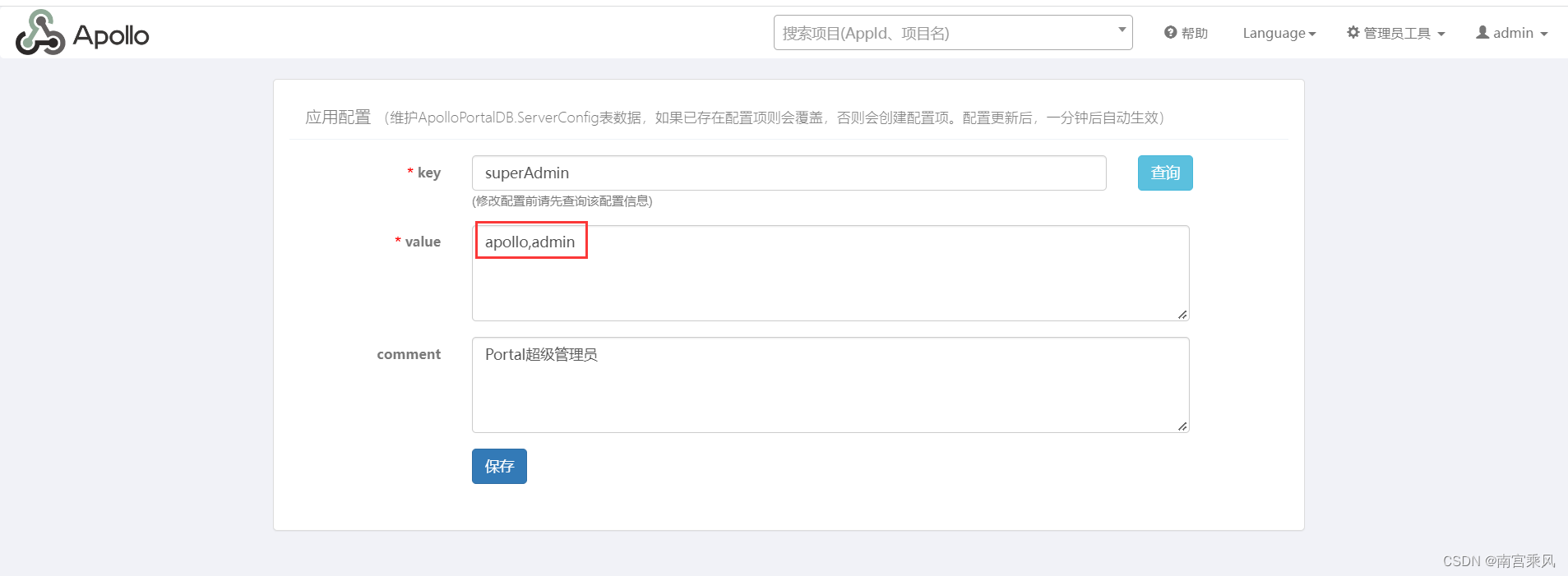

2、填入系统内置Key：superAdmin 并点击查询，在value部分添加要加入人的用户id(LDAP用户ID为准，可通过wiki后台用户列表查询)后保存即可

在这里插入图片描述

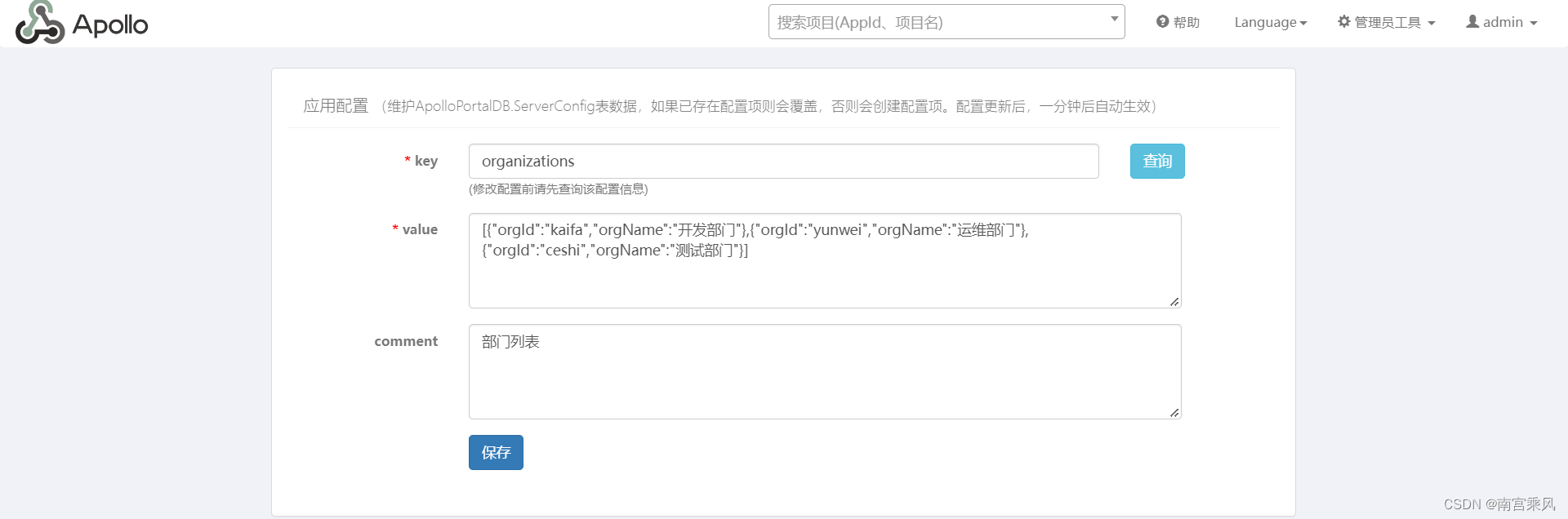

2、新增部门：organizations

1

[{"orgId":"kaifa","orgName":"开发部门"},{"orgId":"yunwei","orgName":"运维部门"},{"orgId":"ceshi","orgName":"测试部门"}]

在这里插入图片描述

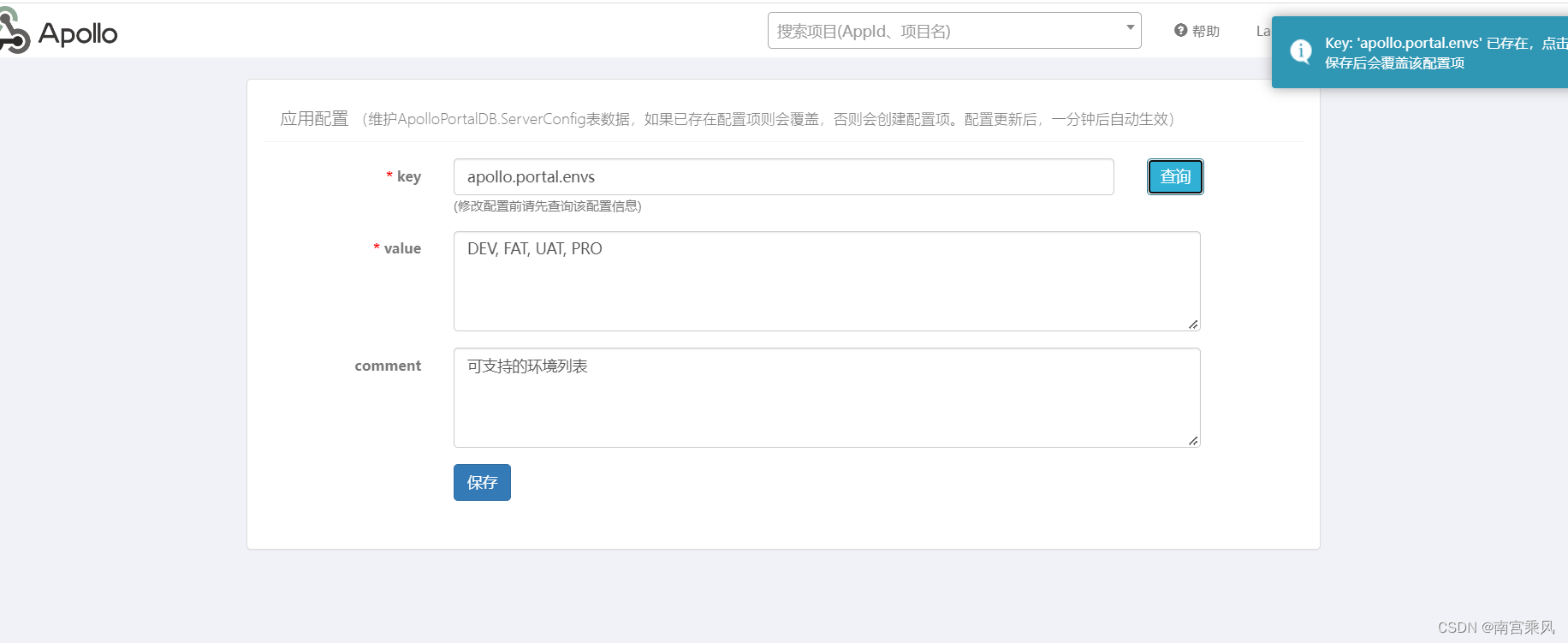

3、新增环境：apollo.portal.envs

apollo.portal.envs

在这里插入图片描述

6、namespace管理

私有namespace

1、添加namespace

Namespace作为配置的分类，可当成一个配置文件。
以添加rocketmq配置为例，添加"spring-rocketmq”Namespace配置rocketmq相关信息。

1、添加项目私有Namespace:spring-rocketmq

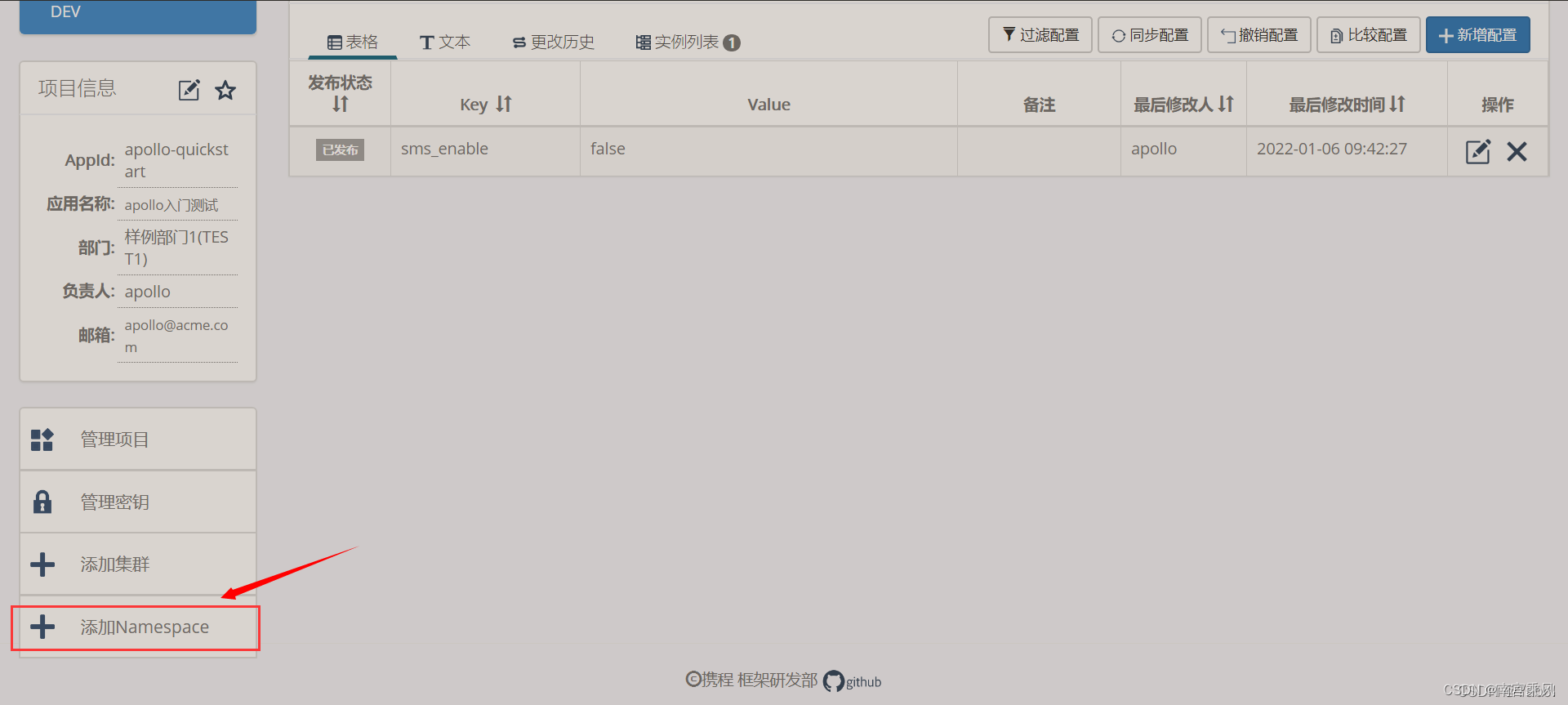

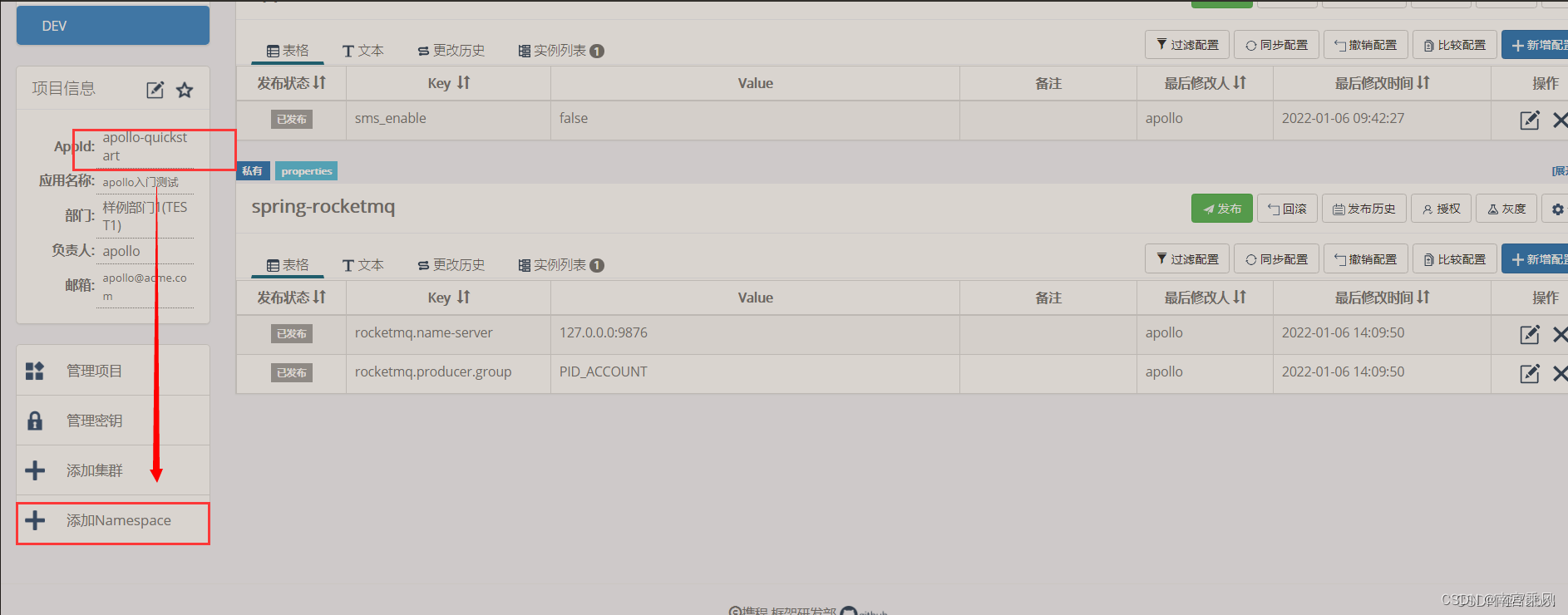

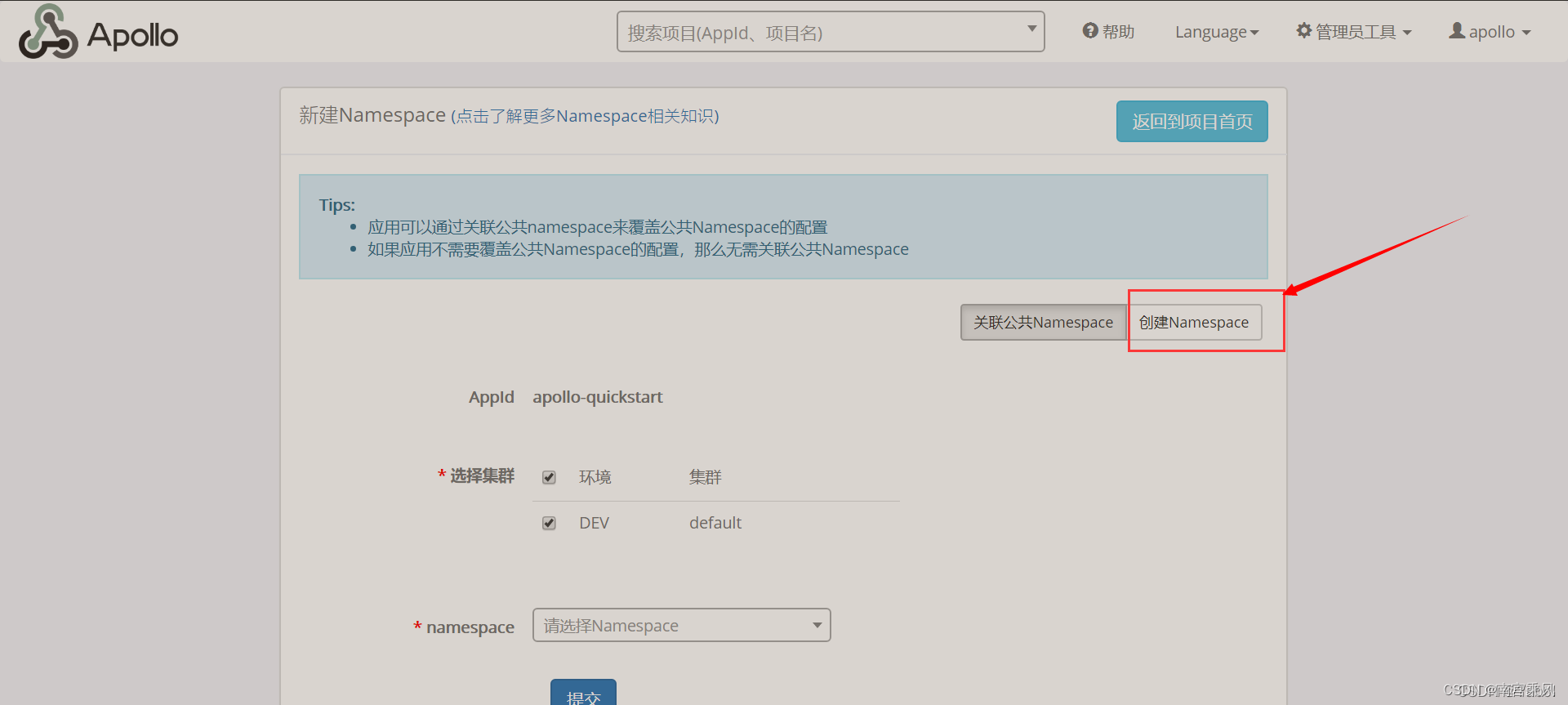

进入项目首页，点击左下脚的”添加Namespace”，共包括两项:关联公共Namespace和创建Namespace ,这里选择"创建Namespace"

在这里插入图片描述

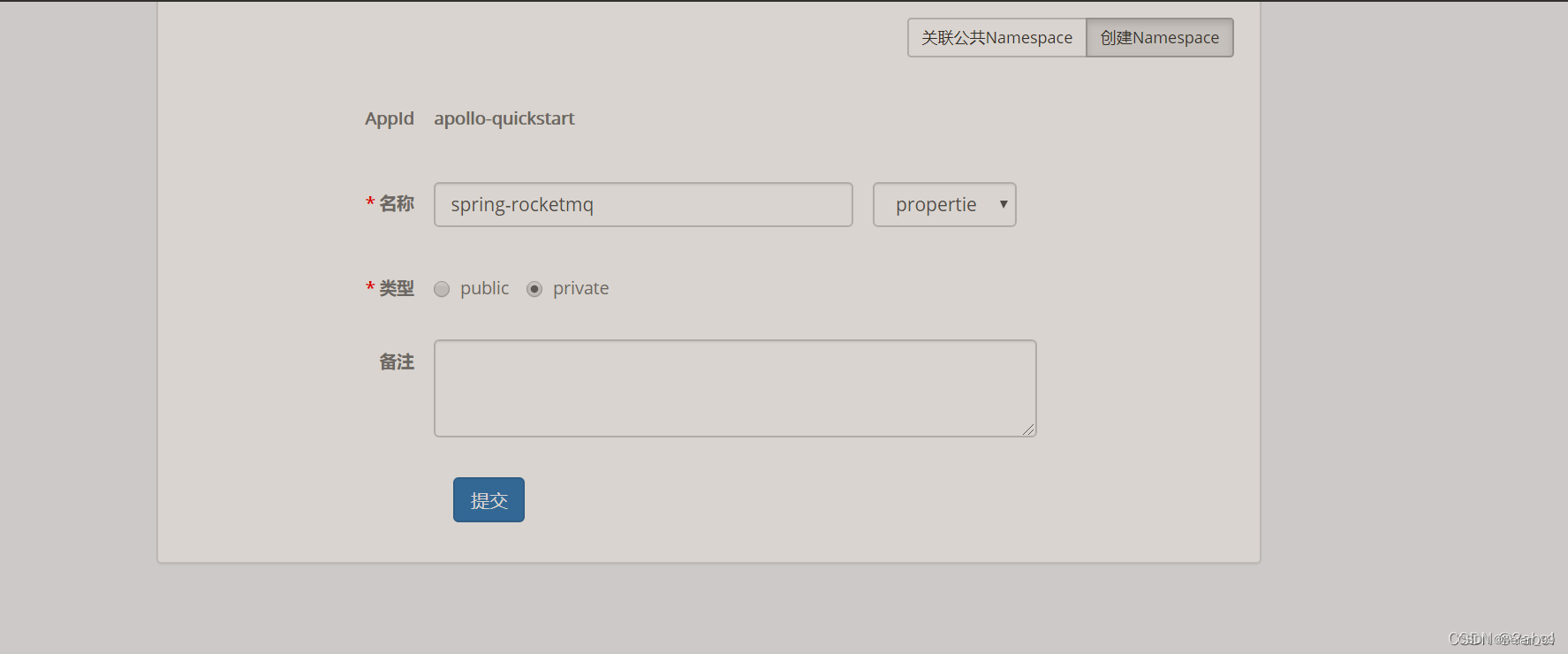

2、填写详细的信息
有两种选择，一种是public（所有项目的）；另一种是private（当前项目的）；如下图所示

在这里插入图片描述

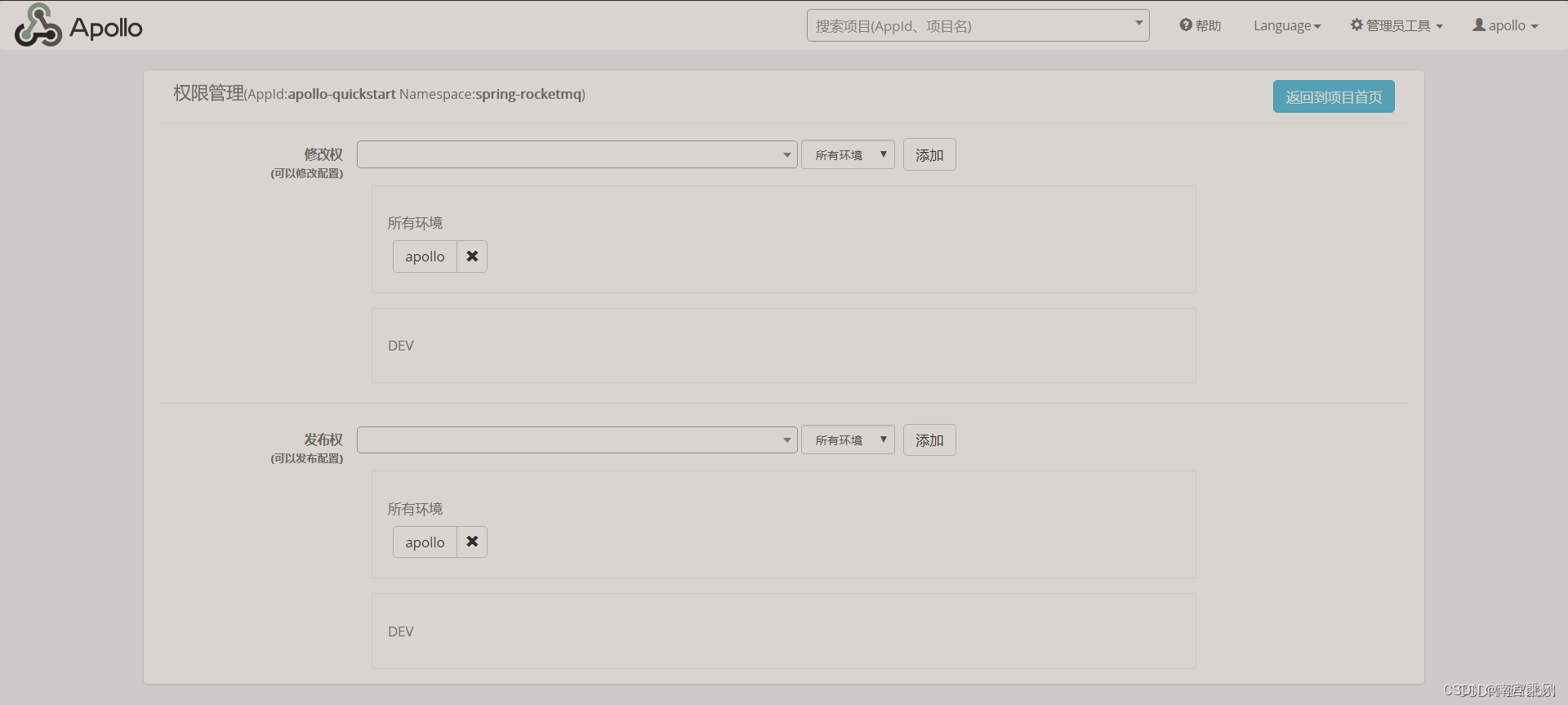

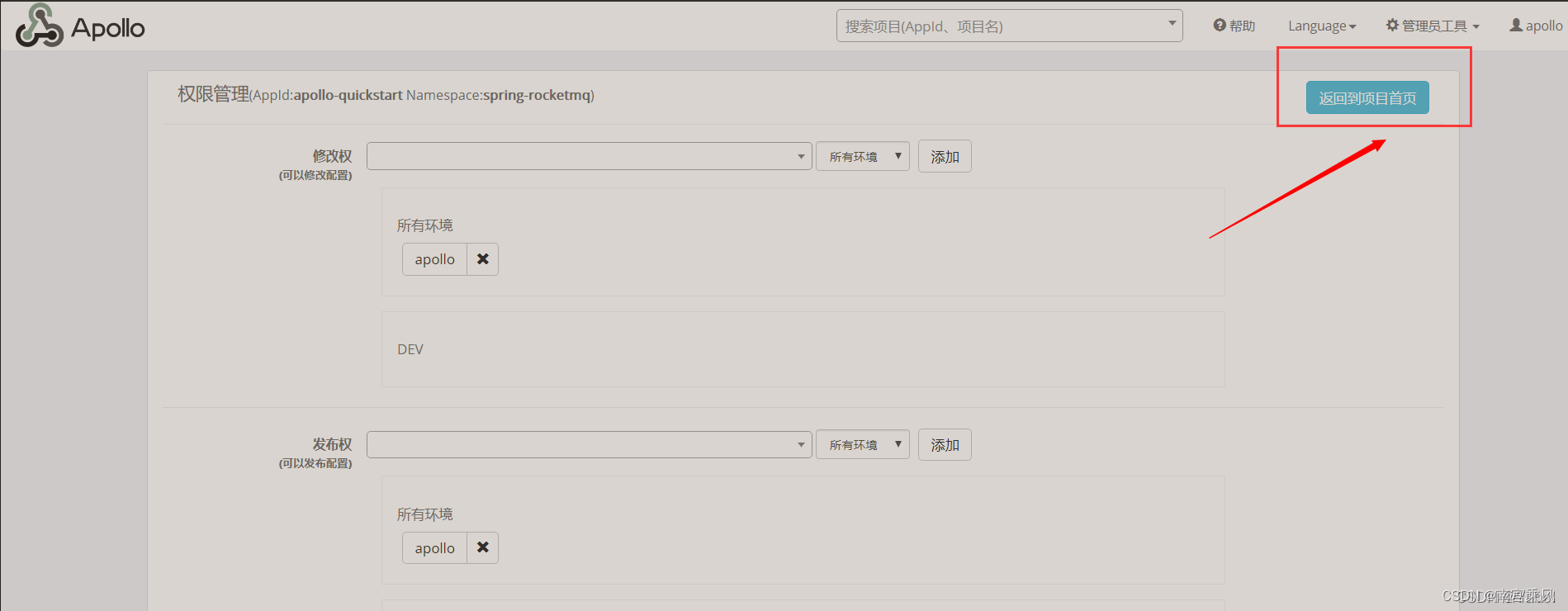

3、提交过后会自动跳转到下面的页面（操控权限）

在这里插入图片描述

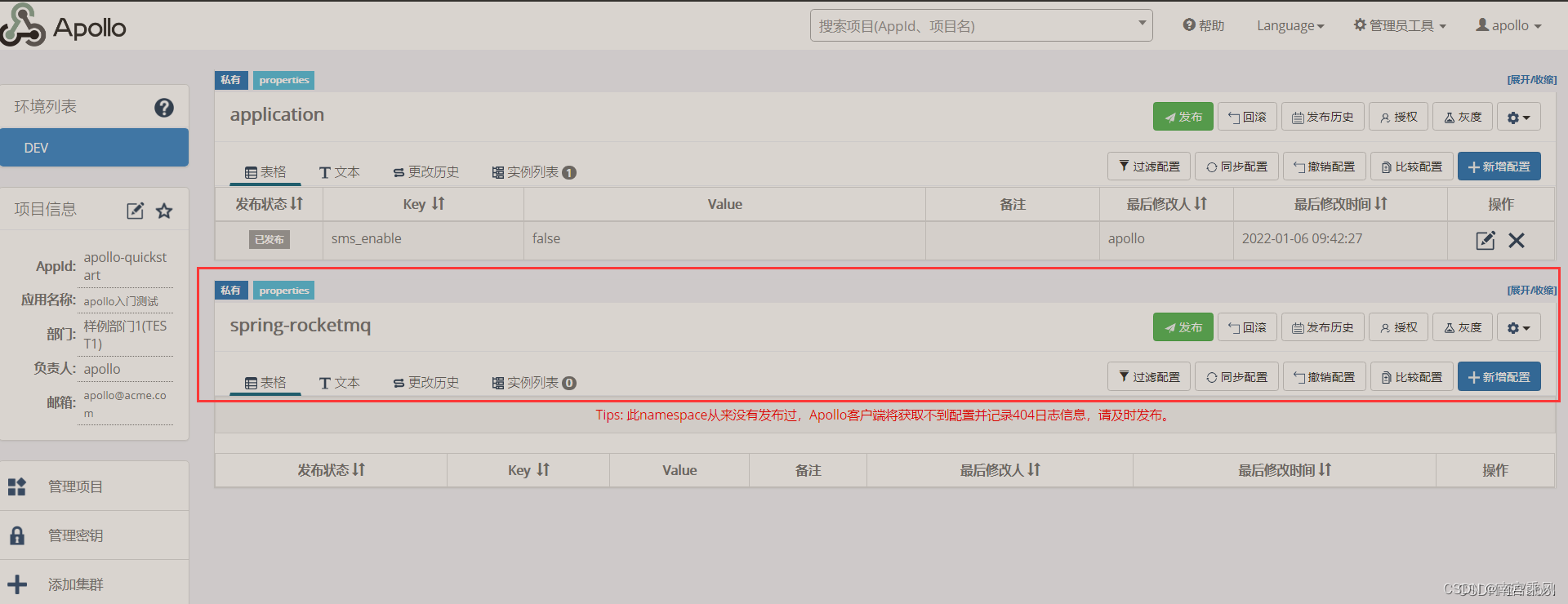

4、不操作返回首页

在这里插入图片描述

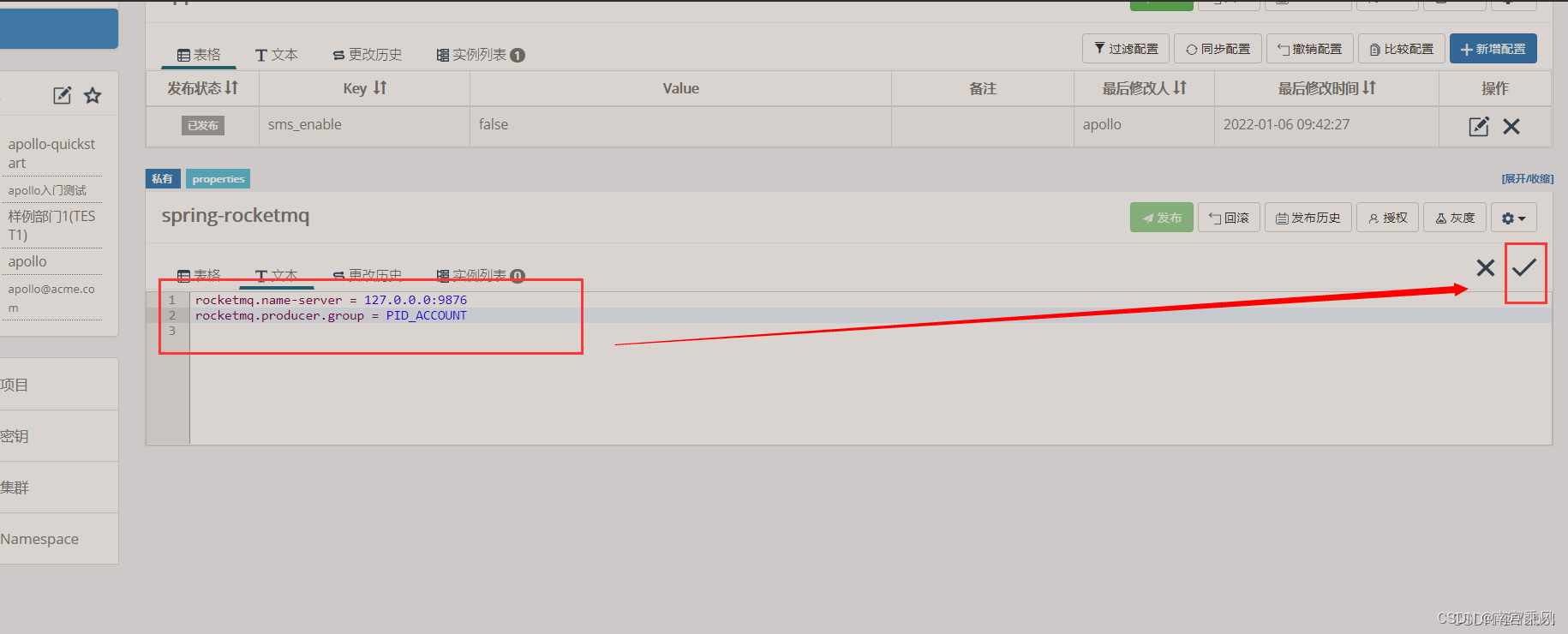

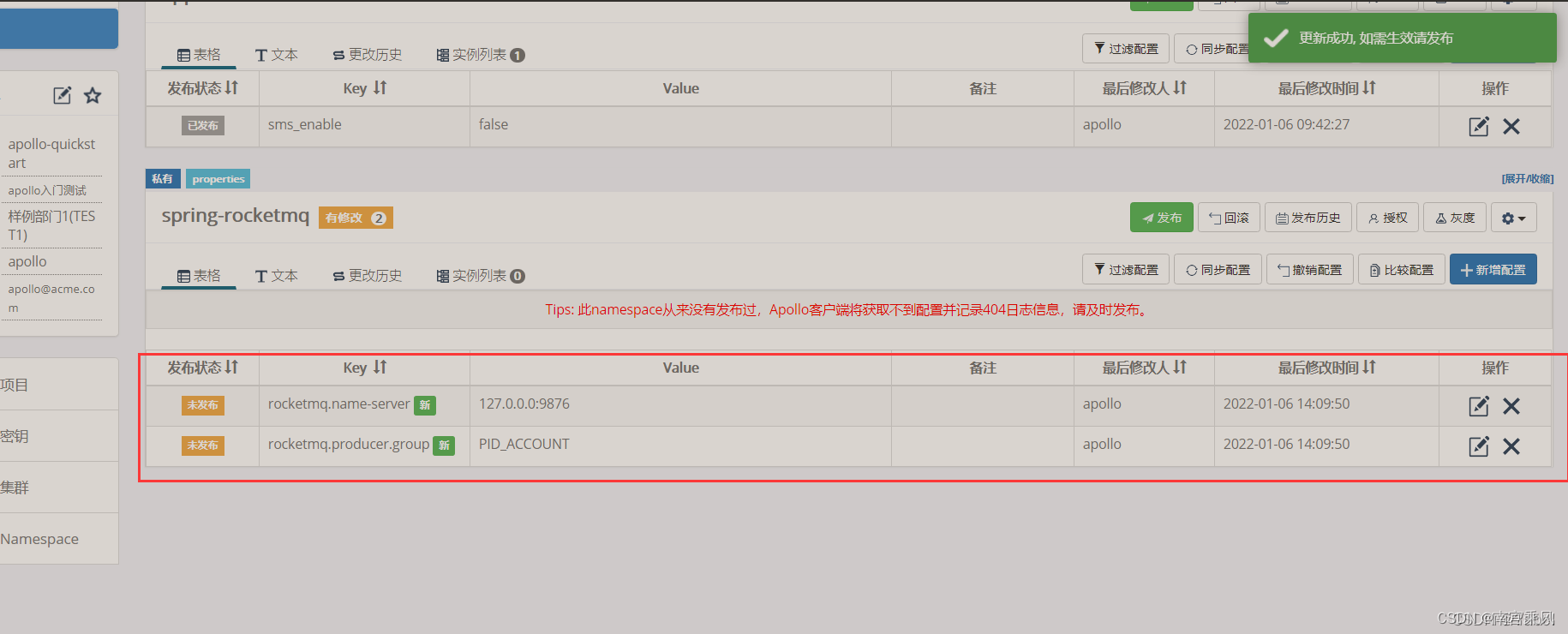

2、为namespace操作配置

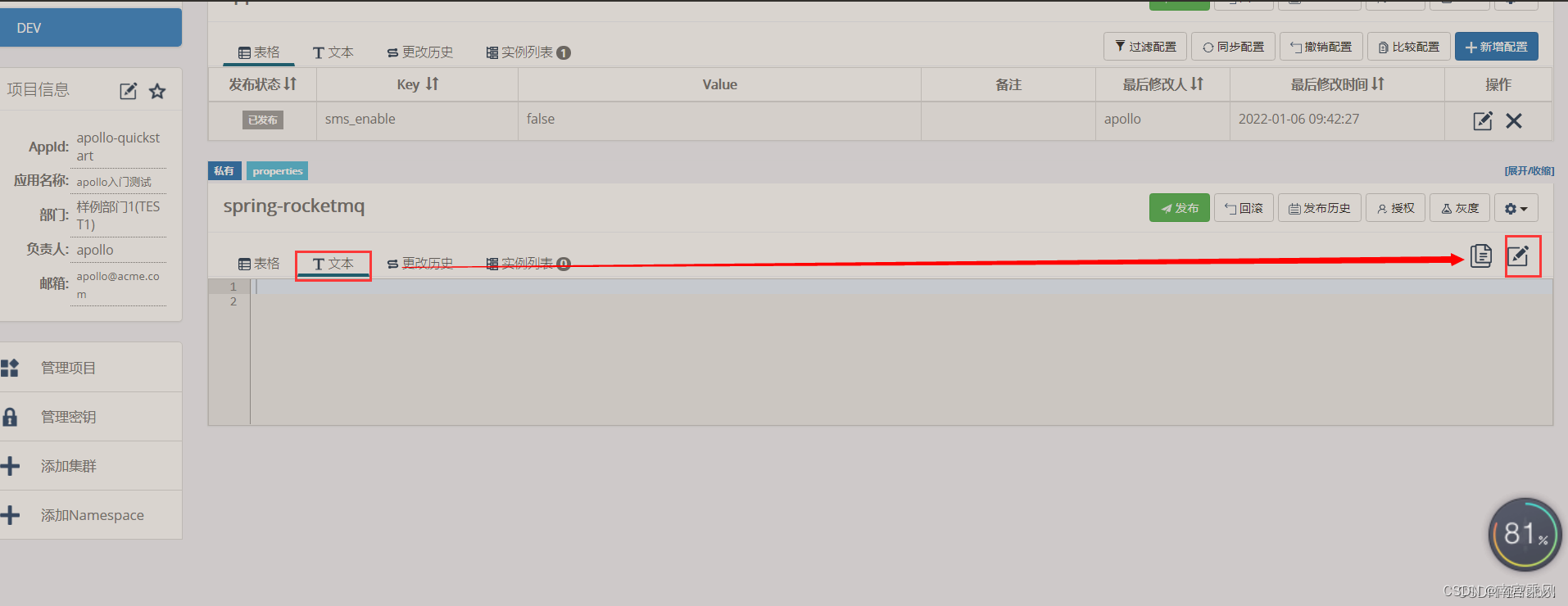

可以按之前的方法进行操作，也可以通过下面的内容进行批量操作
如：

1
2


rocketmq.name-server = 127.0.0.0:9876
rocketmq.producer.group = PID_ACCOUNT

在这里插入图片描述

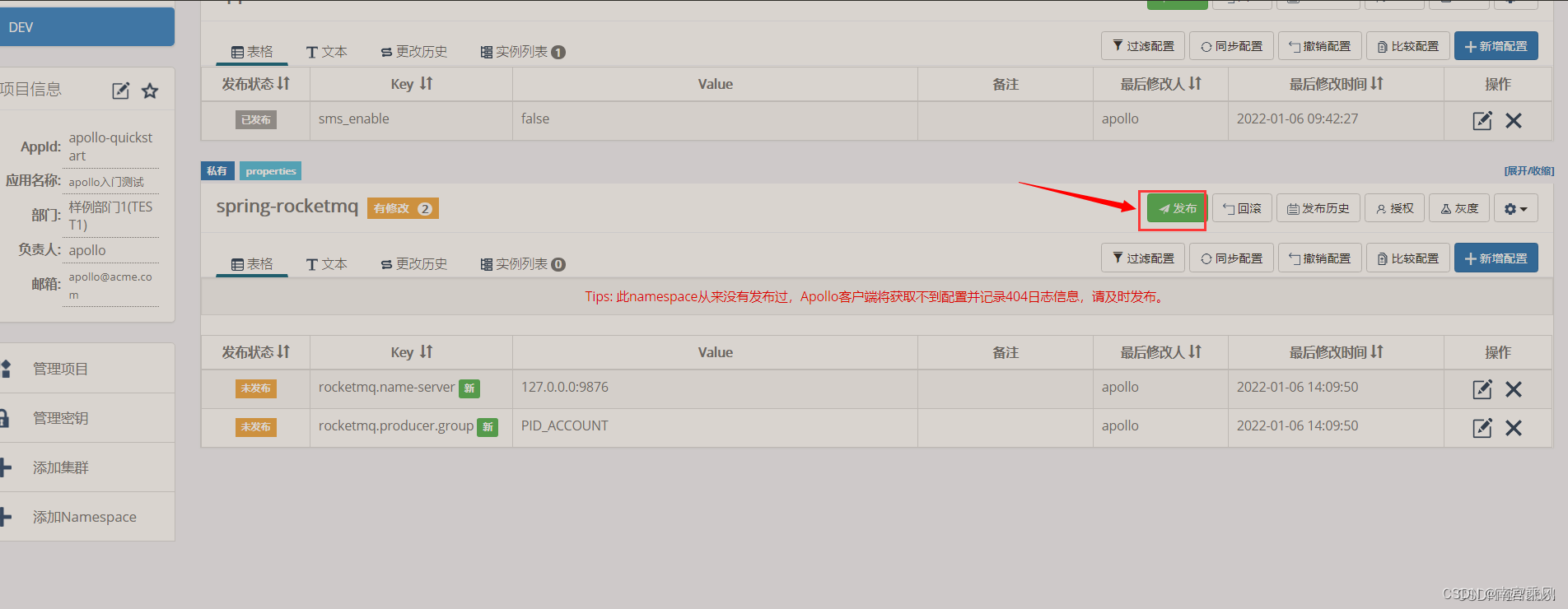

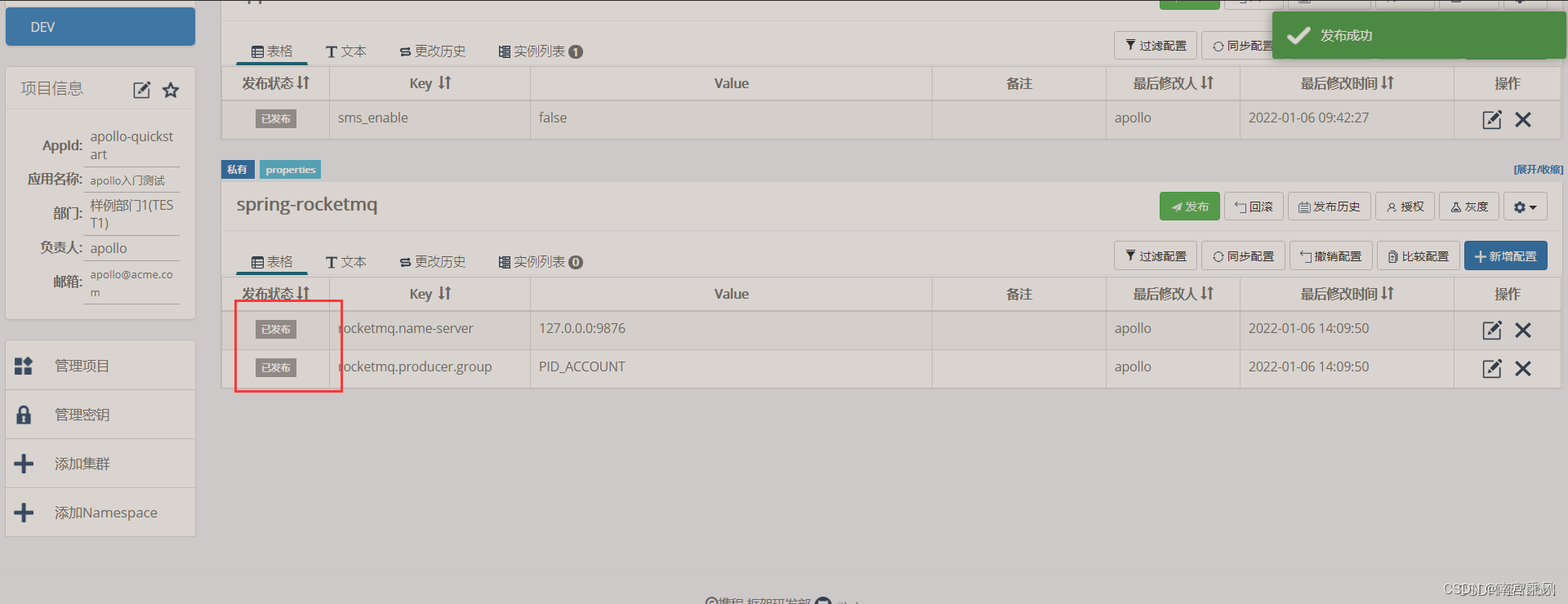

发布

在这里插入图片描述

‍

3、获取namespace里面的数据

修改代码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


	public class GetConfigTest {
	    public static void main(String[] args) {
	        while (true){
	            try {
	                Thread.sleep(1000);
	            } catch (InterruptedException e) {
	                e.printStackTrace();
	            }

	//            Config appConfig = ConfigService.getAppConfig();
	            //读取指定的namespace下的配置信息
	            Config config = ConfigService.getConfig("spring-rocketmq");
	            //获取配置信息,第一个参数:配置的key，第二个参数:默认值
	            String value = config.getProperty("rocketmq.producer.group", null);
	            System.out.printf("现在：%s, sms.enable: %s%n", new Date().toString(),value);
	        }


	    }
	}

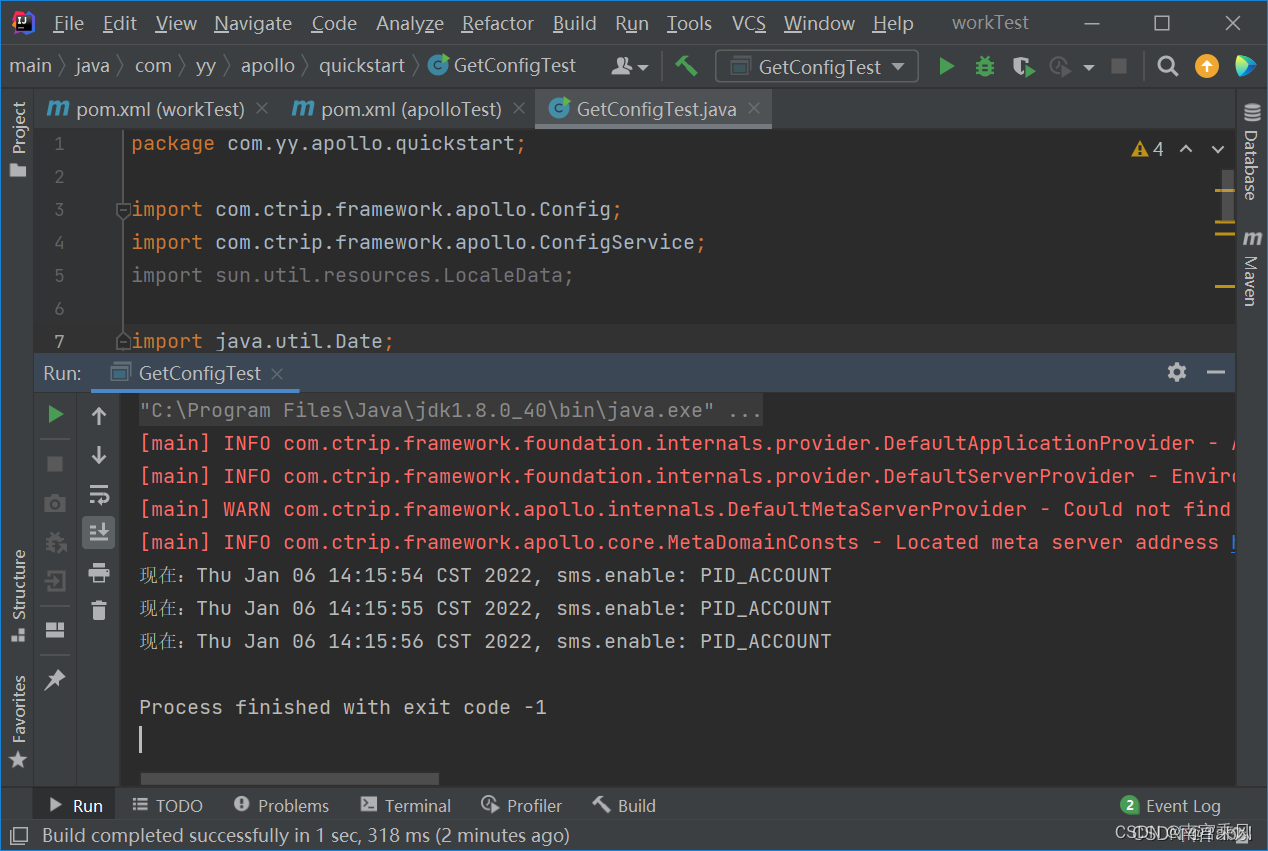

运行结果

在这里插入图片描述

公共配置

1、添加公共的namespace

在项目开发中，有一些配置可能是通用的，我们可以通过把这些通用的配置放到公共的Namespace中，这样其他项目要使用时可以直接添加需要的Namespace

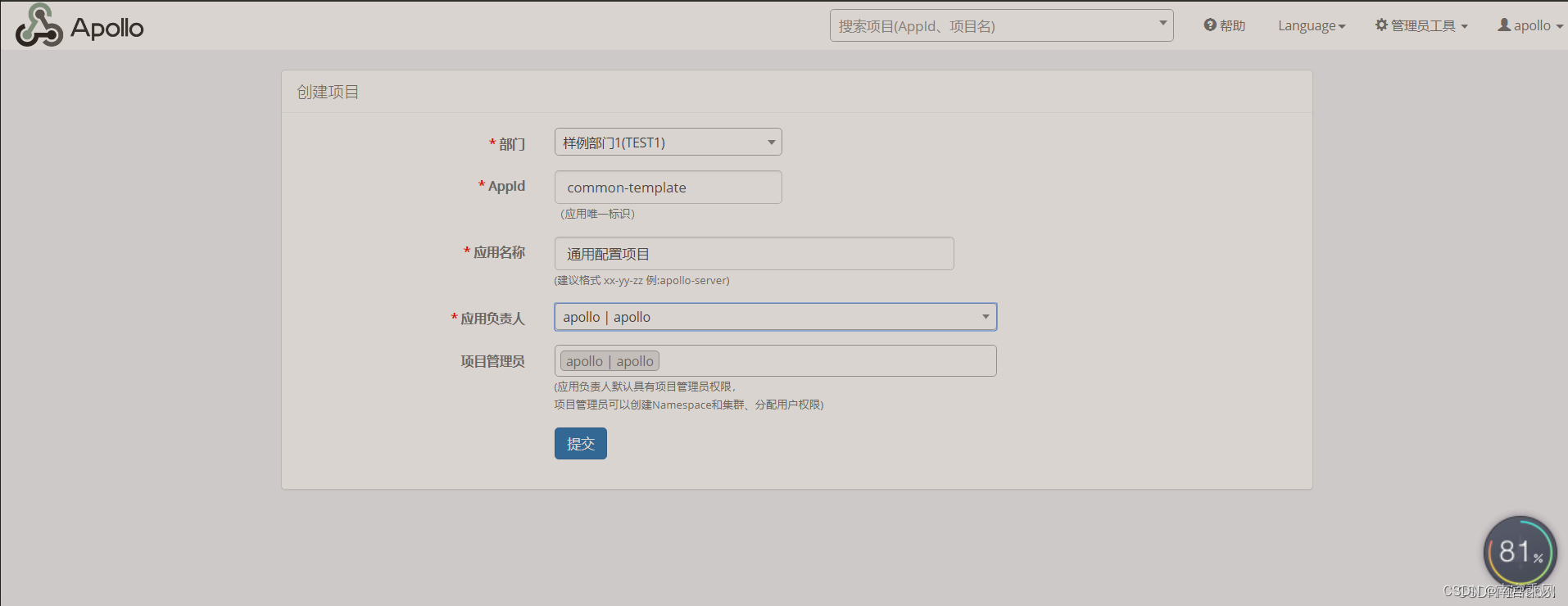

新建common-template项目

在这里插入图片描述

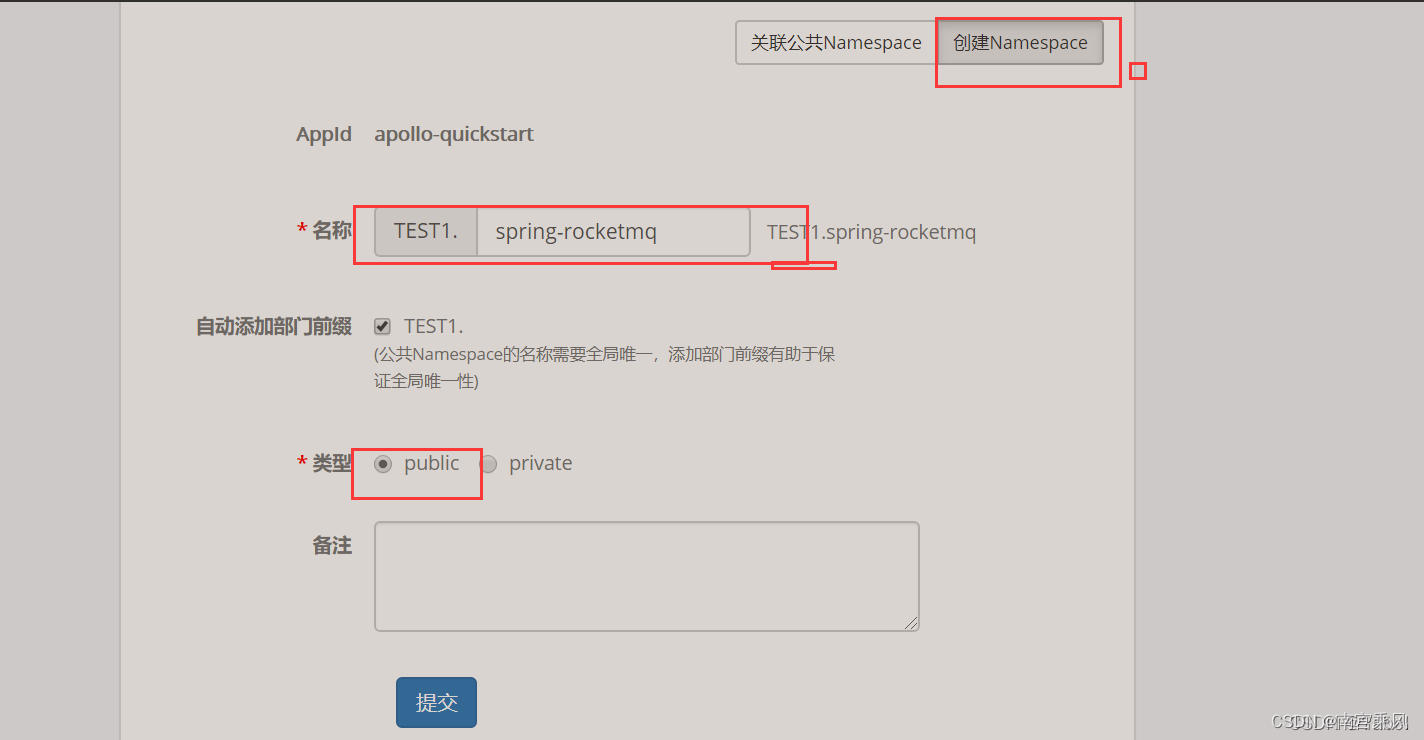

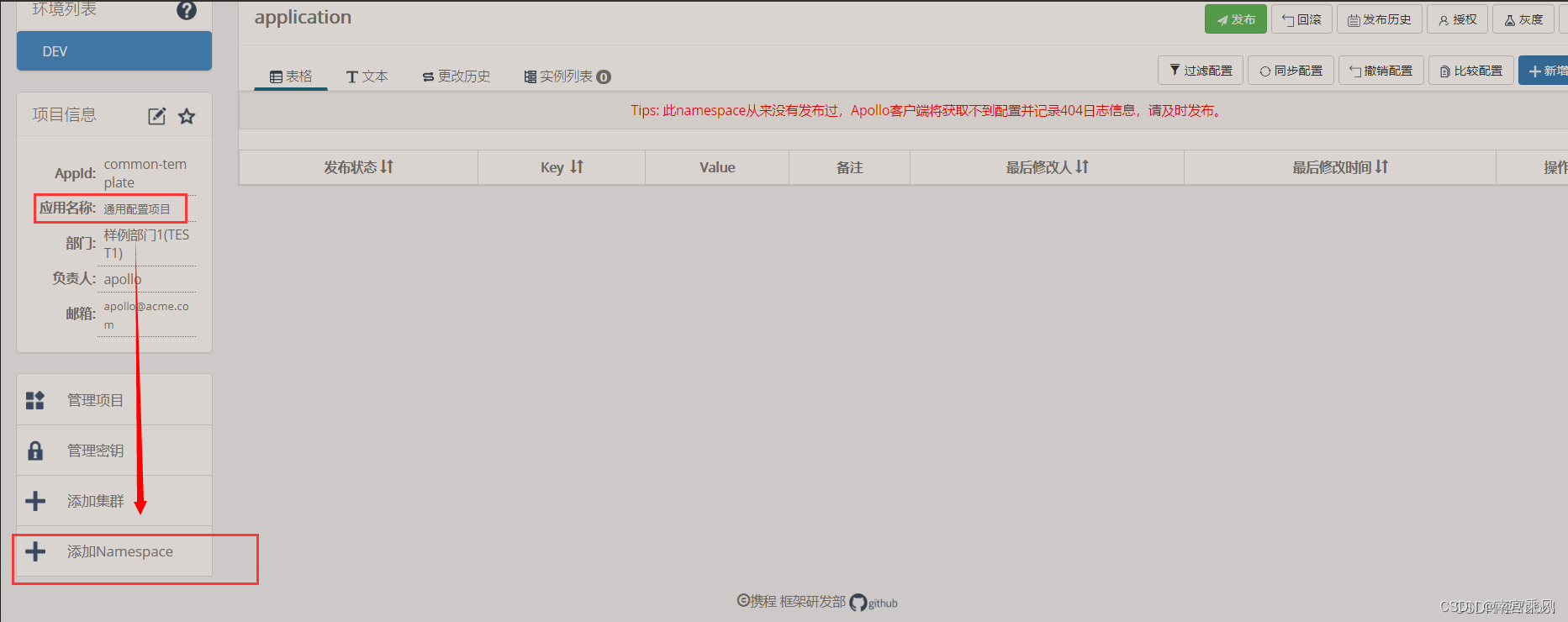

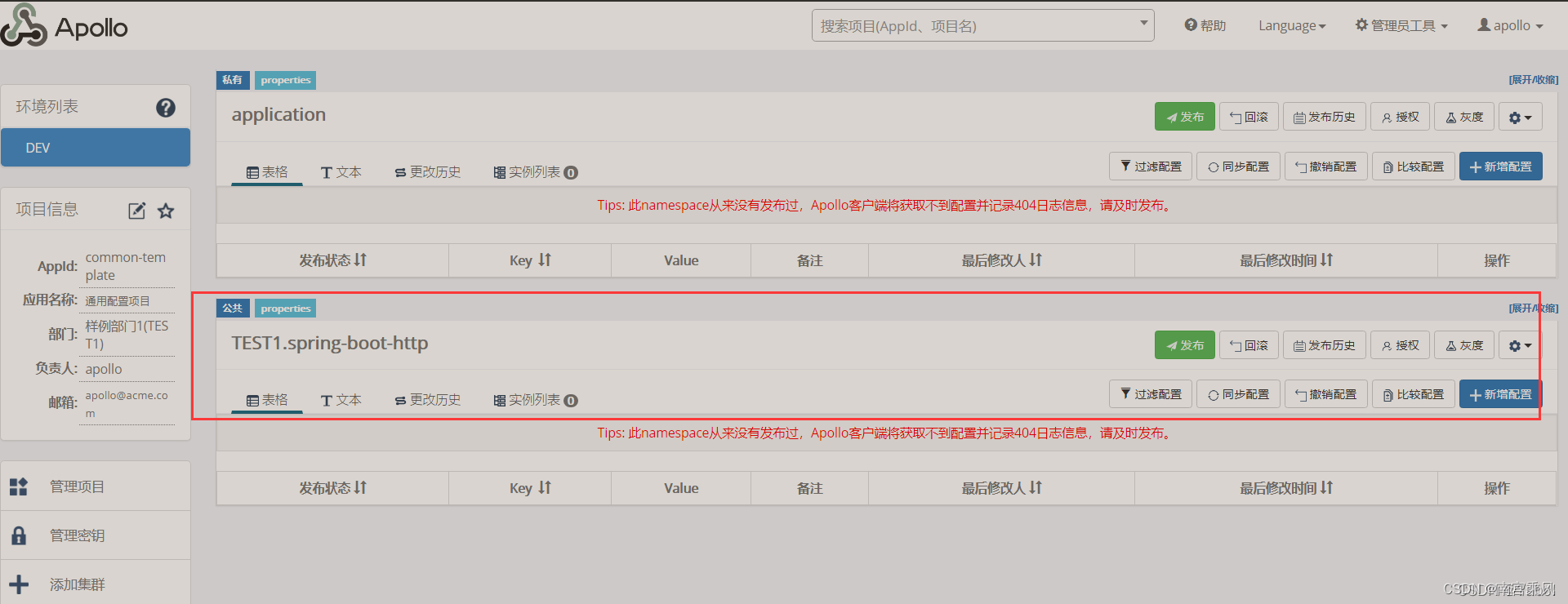

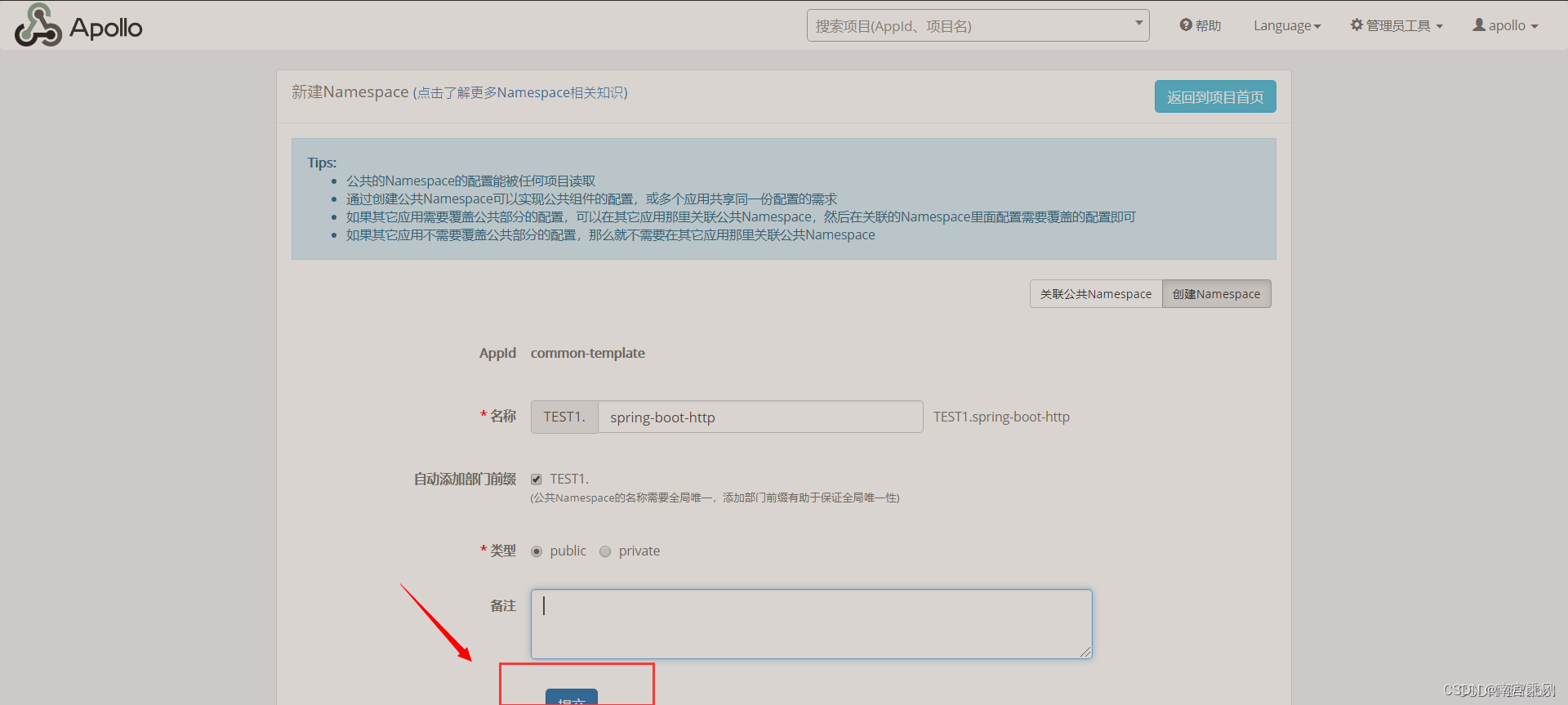

2、新建namespace
在这里插入图片描述

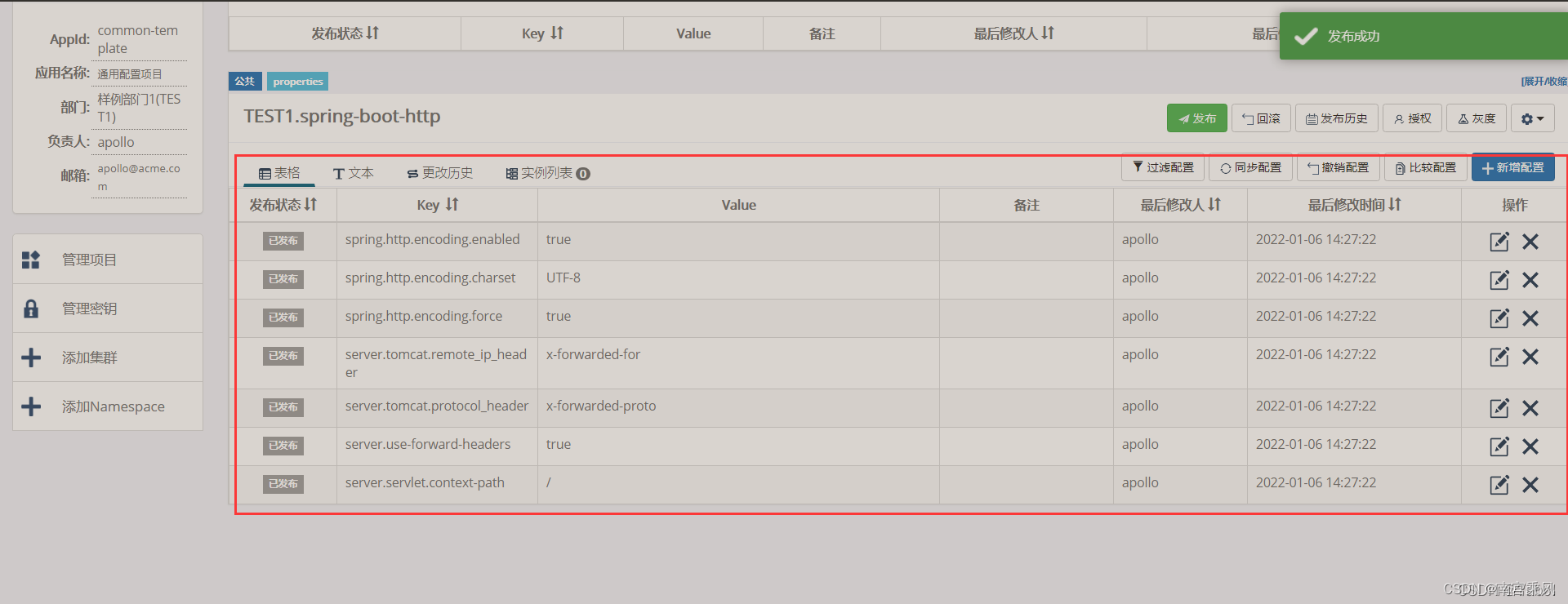

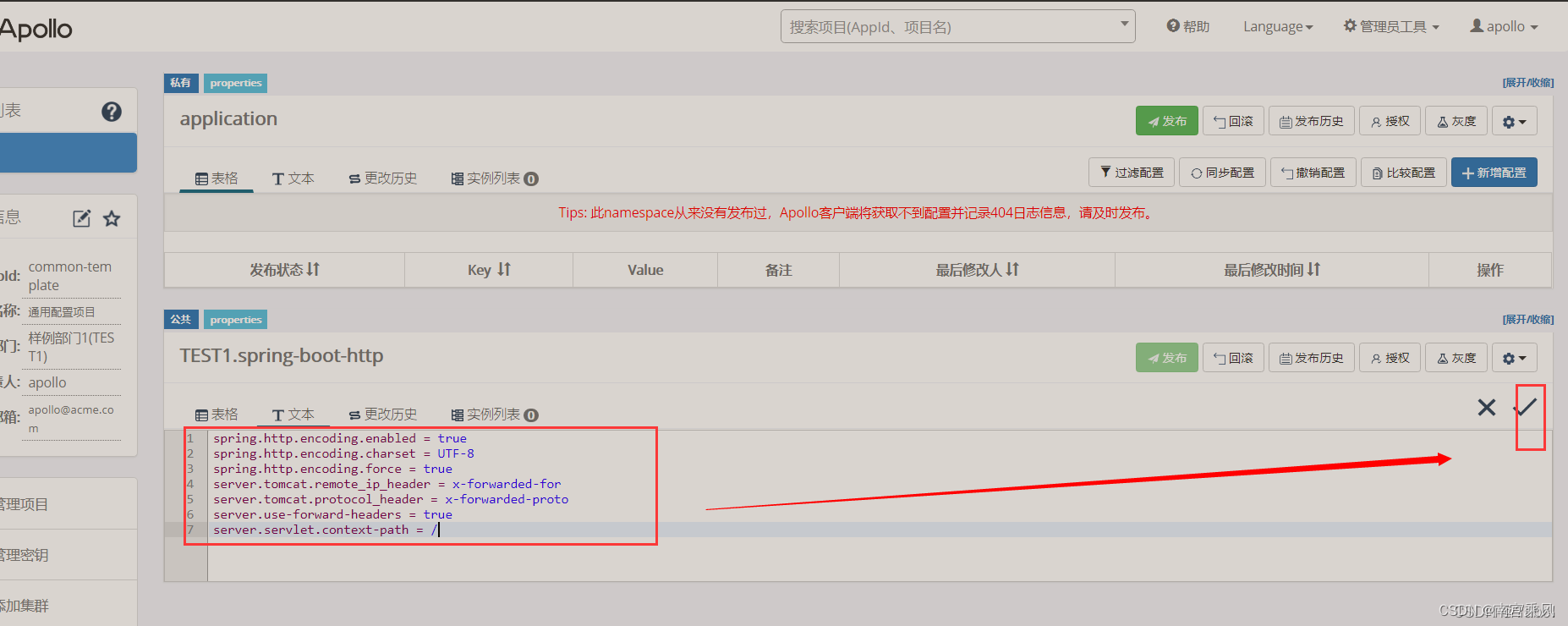

3、添加配置信息

在这里插入图片描述

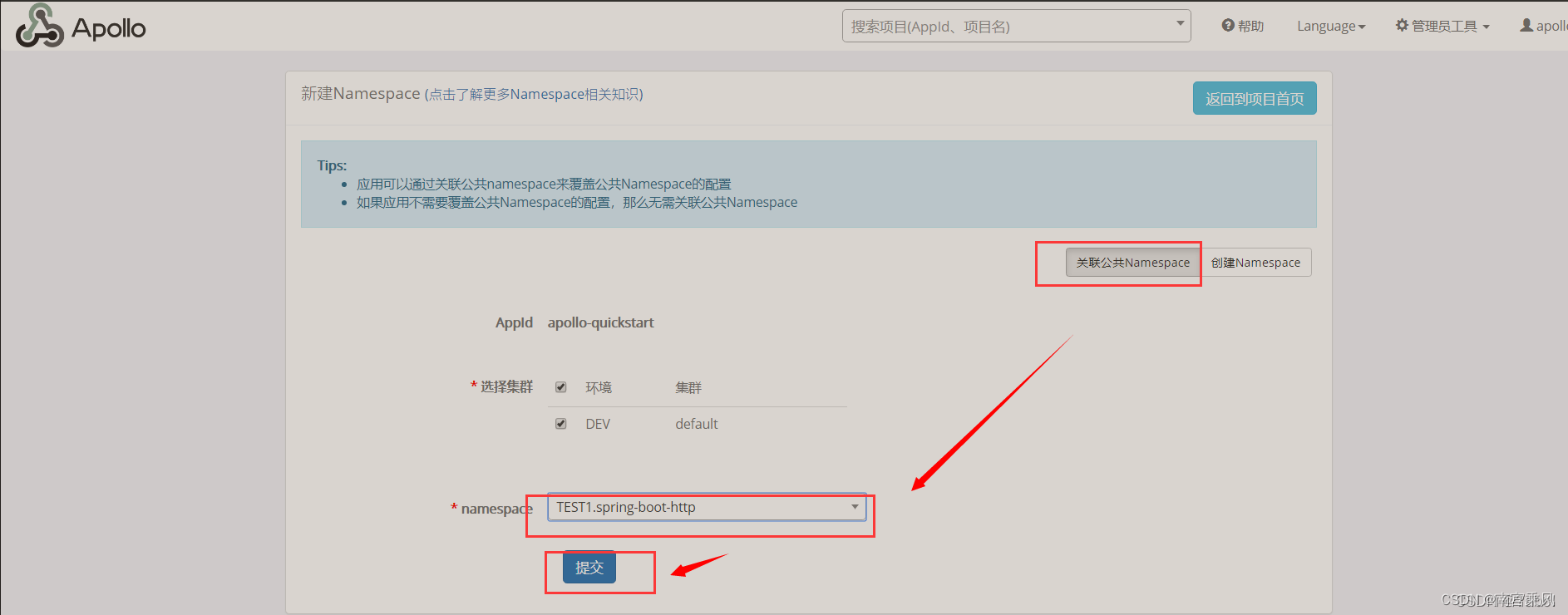

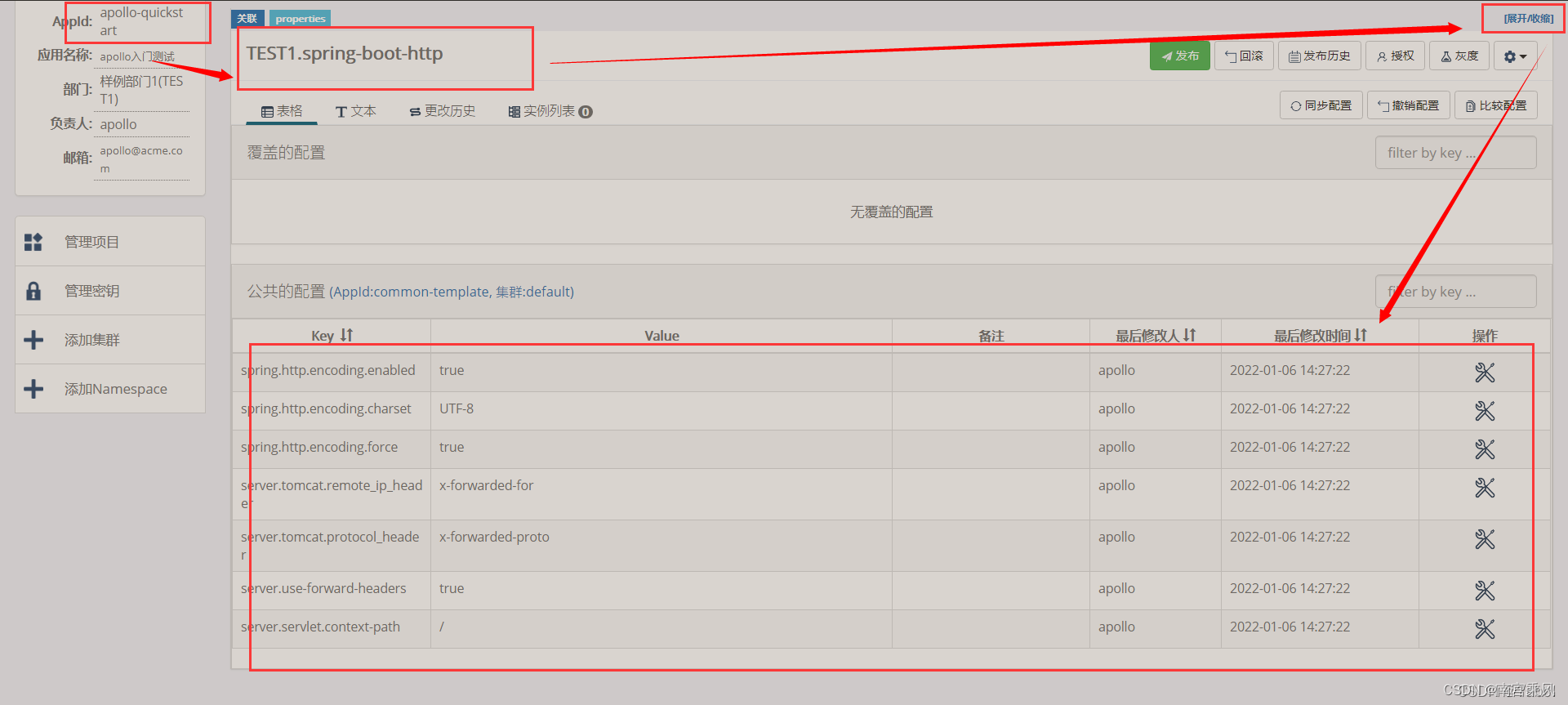

2、前往其他的项目去关联第一步的namespace

在这里插入图片描述

‍

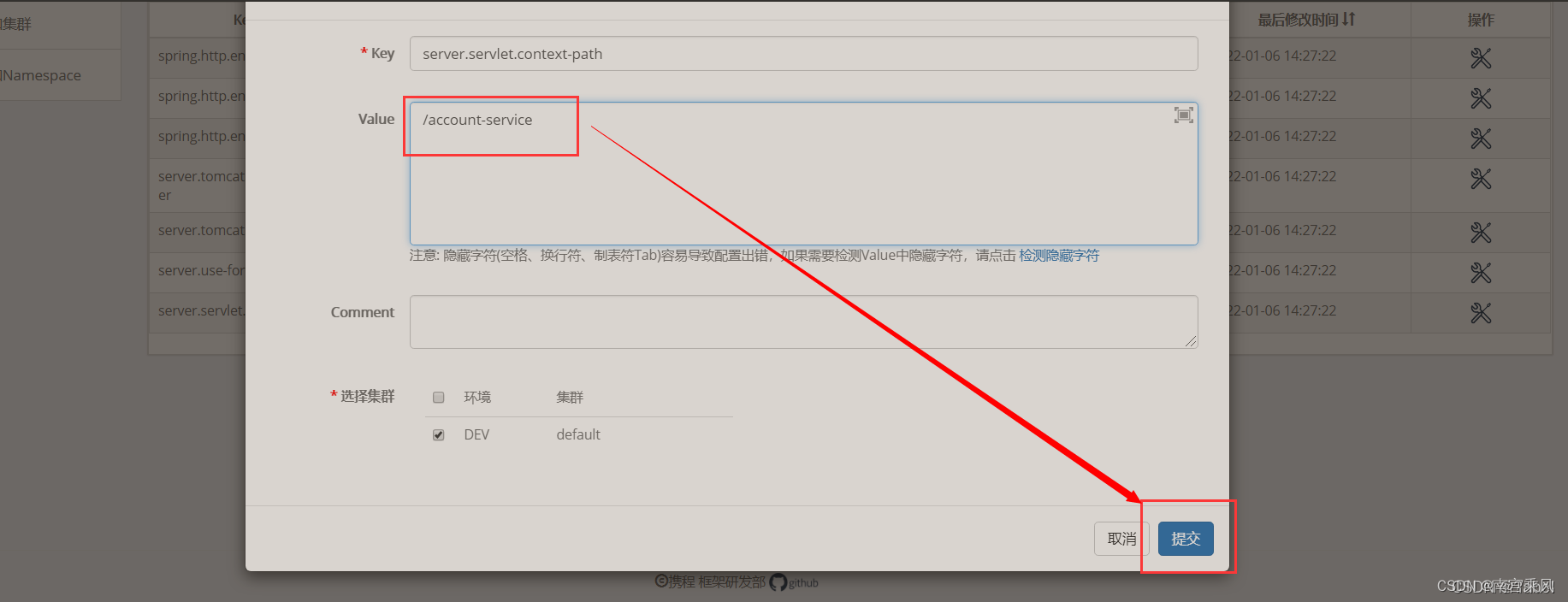

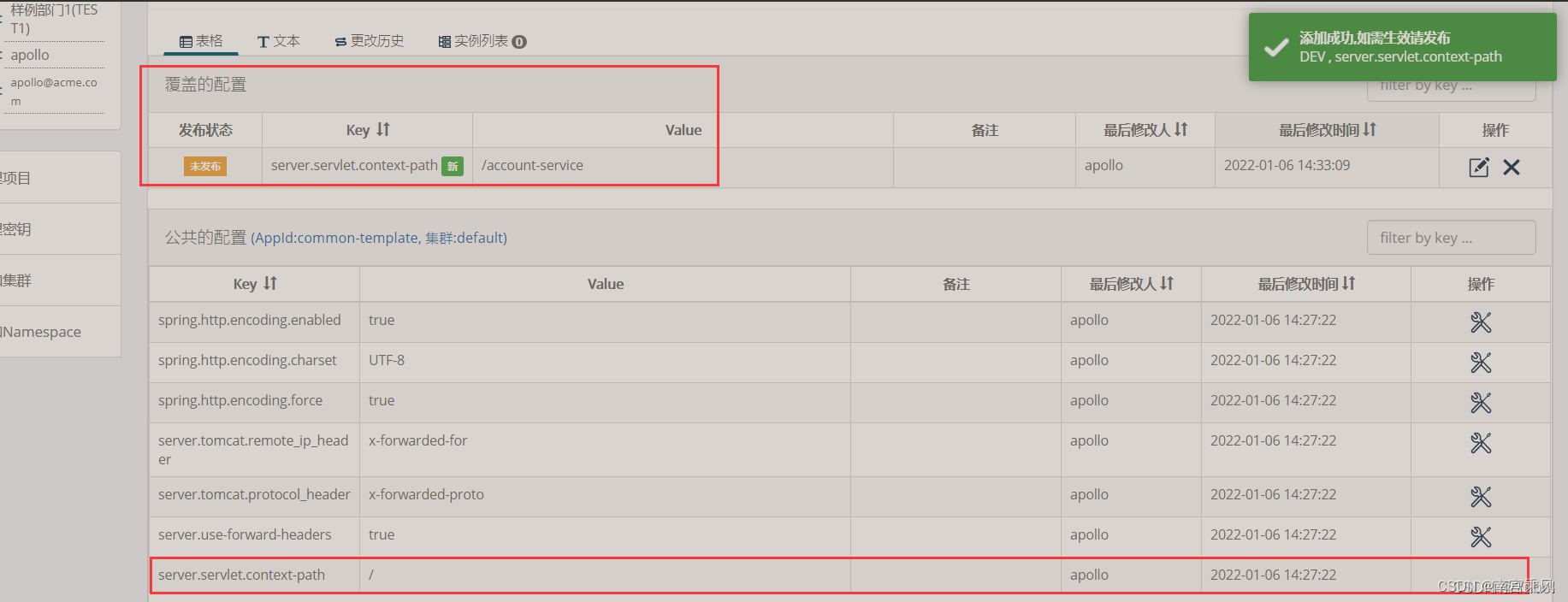

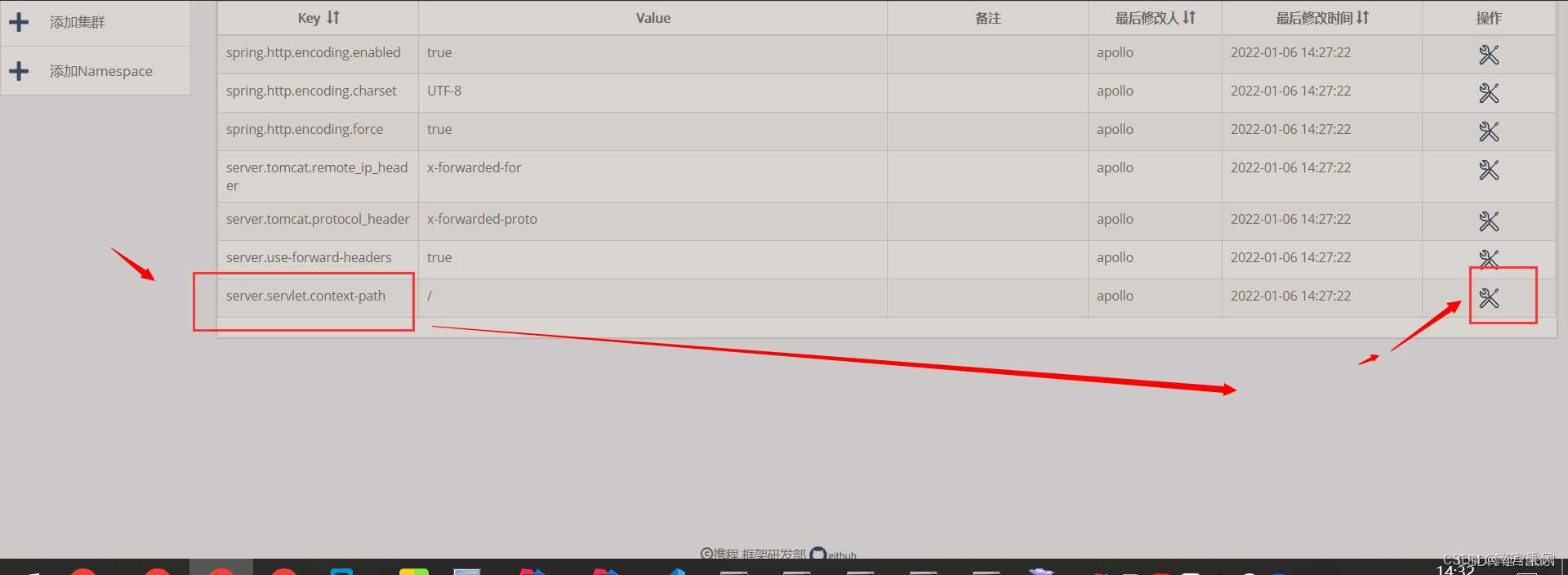

3、修改公共配置

修改server.servlet.context-path为：/account-service

在这里插入图片描述

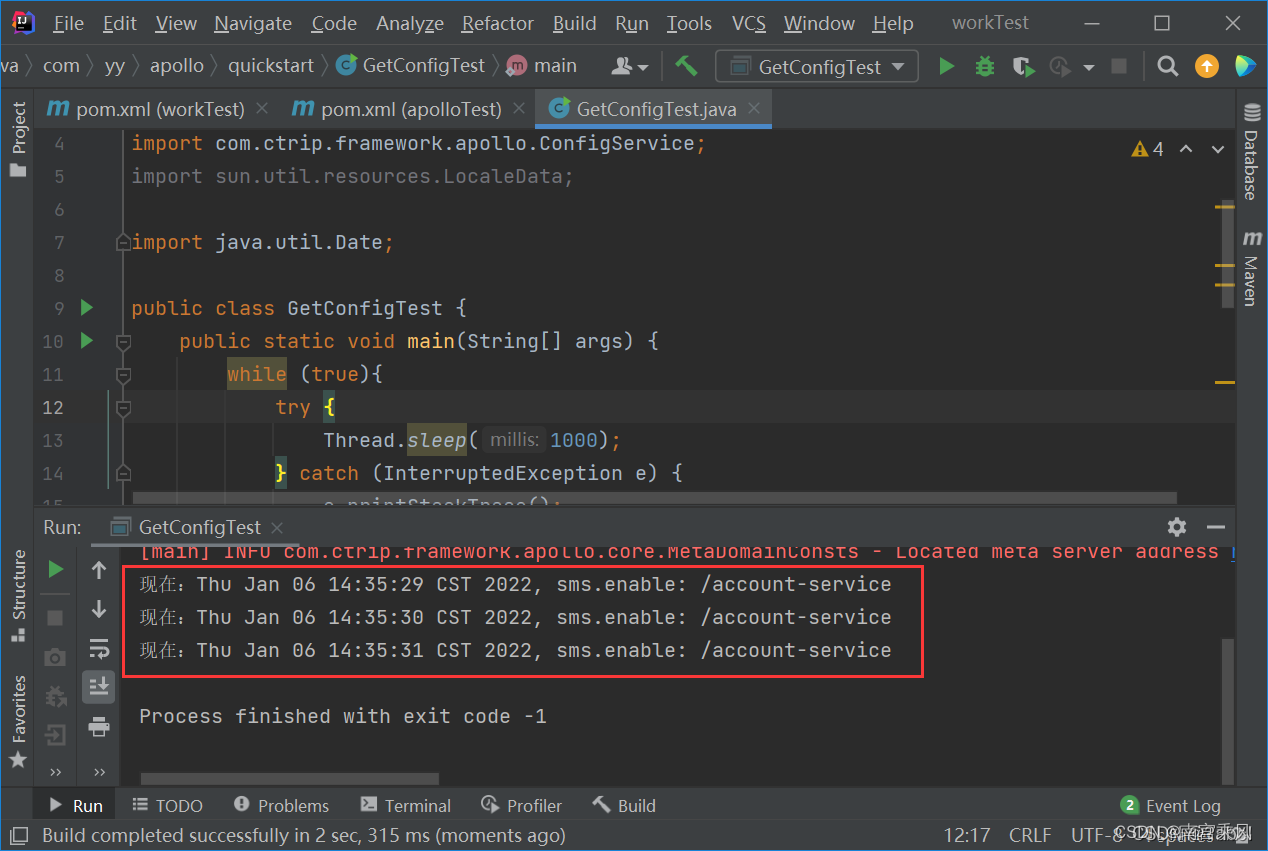

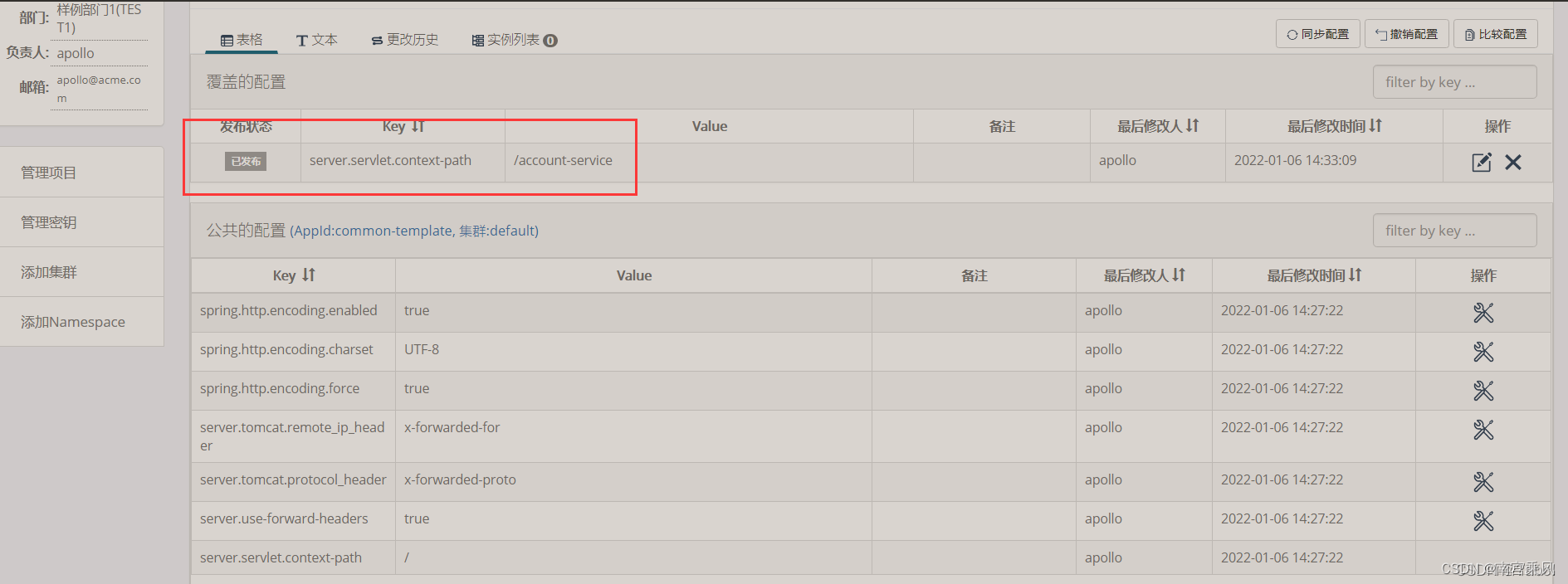

4、使用代码读取配置信息

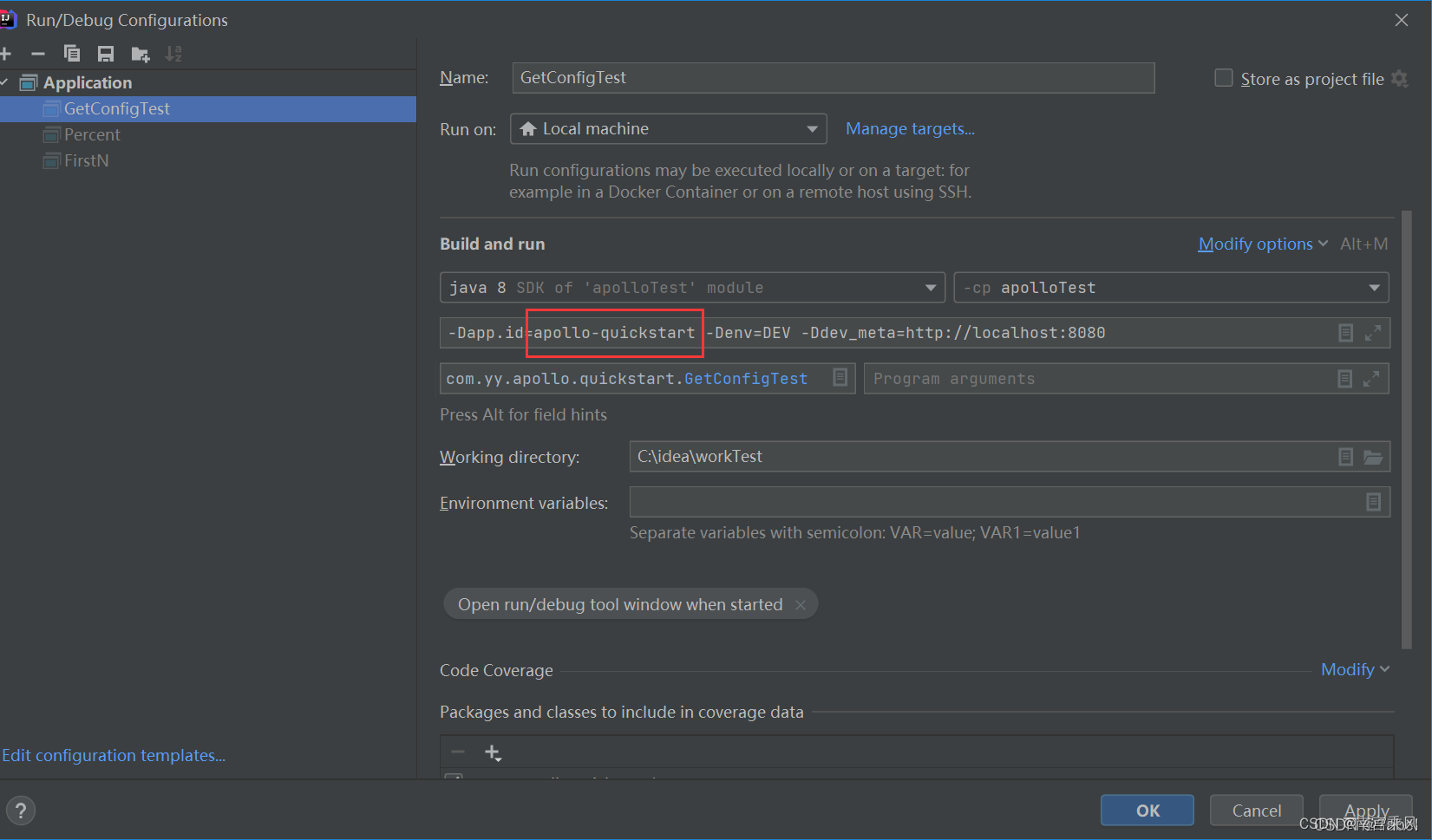

注意：如果项目不一样的话，就需要去将之前在运行里面的环境进行修改，如下

在这里插入图片描述

修改代码：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


public class GetConfigTest {
    public static void main(String[] args) {
        while (true){
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }

//            Config appConfig = ConfigService.getAppConfig();
            //读取指定的namespace下的配置信息
            Config config = ConfigService.getConfig("TEST1.spring-boot-http");
            //获取配置信息,第一个参数:配置的key，第二个参数:默认值
            String value = config.getProperty("server.servlet.context-path", null);
            System.out.printf("现在：%s, sms.enable: %s%n", new Date().toString(),value);
        }


    }
}

在这里插入图片描述
