Kubernetes 1.18.3 部署 Traefik2.0
Centos 3.10.0-693.el7.x86_64
Kubernetes 1.18.3
Traefik 2.2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
[root@k8s-master1 traefik]# kubectl get cs
NAME STATUS MESSAGE ERROR
controller-manager Healthy ok
scheduler Healthy ok
etcd-0 Healthy {"health":"true"}
etcd-2 Healthy {"health":"true"}
etcd-1 Healthy {"health":"true"}
[root@k8s-master1 traefik]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master Ready <none> 6d1h v1.18.3
k8s-node1 Ready <none> 6d v1.18.3
k8s-node2 Ready <none> 6d v1.18.3
[root@k8s-master1 traefik]# uname -a
Linux k8s-master1 3.10.0-693.el7.x86_64 #1 SMP Tue Aug 22 21:09:27 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux
|
Traefik 2.0 官方文档：https://docs.traefik.io/v2.0/
1.Traefik 介绍
traefik 是一款反向代理、负载均衡服务，使用 golang 实现的。和 nginx 最大的不同是，它支持自动化更新反向代理和负载均衡配置。在微服务架构越来越流行的今天，一个业务恨不得有好几个数据库、后台服务和 webapp，开发团队拥有一款 “智能” 的反向代理服务，为他们简化服务配置。traefik 就是为了解决这个问题而诞生的。
Traefik 2.2新增的功能如下：
1. 支持了udp
2. traefik2.2 支持使用K/V存储做为动态配置的源，分别是 consul, etcd, Redis, zookeeper
3. 能够使用kubernetes CRD自定义资源定义UDP负载平衡 IngressRouteUDP。
4. 能够使用 rancher， consul catalog， docker和 marathon中的标签定义UDP的负载平衡
5. 增加了对ingress注解的主持
6. 将TLS存储功能 TLSStores添加到Kubernetes CRD中，使kubernetes用户无需使用配置文件和安装证书即可提供默认证书。
7. 在日志中增加了http的请求方式,是http还是https
8. 因为TLS的配置可能会影响CPU的使用率，因此增加了 TLS version和 TLS cipher使用的指标信息
9. 当前的WRR算法对于权重不平衡端点存在严重的偏差问题，将EDF调度算法用于WeightedRoundRobin， Envoy也是使用了 EOF调度算法
10. 支持请求主体用于流量镜像
11. 增加了 ElasticAPM作为traefik的tracing系统。
12. Traefik的Dashboard增加了UDP的页面
13. Traefik也增加了黑暗主题
2.部署 Traefik 2.0
在 traefik v2.0 版本后，开始使用 CRD（Custom Resource Definition）来完成路由配置等，所以需要提前创建 CRD 资源。
下面进行安装过程。
注：我们这里是将traefik部署在ingress-traefik命名空间，如果你需要部署在其他命名空间，需要更改资源清单，如果你是部署在和我同样的命令空间中，你需要创建该命名空间。
创建命名空间：
1
|
kubectl create ns ingress-traefik
|
创建CRD资源
Traefik 2.0版本后开始使用CRD来对资源进行管理配置，所以我们需要先创建CRD资源。
traefik-crd.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
|
## IngressRoute
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: ingressroutes.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: IngressRoute
plural: ingressroutes
singular: ingressroute
---
## IngressRouteTCP
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: ingressroutetcps.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: IngressRouteTCP
plural: ingressroutetcps
singular: ingressroutetcp
---
## Middleware
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: middlewares.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: Middleware
plural: middlewares
singular: middleware
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: tlsoptions.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: TLSOption
plural: tlsoptions
singular: tlsoption
---
## TraefikService
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: traefikservices.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: TraefikService
plural: traefikservices
singular: traefikservice
---
## TraefikTLSStore
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: tlsstores.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: TLSStore
plural: tlsstores
singular: tlsstore
---
## IngressRouteUDP
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: ingressrouteudps.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: IngressRouteUDP
plural: ingressrouteudps
singular: ingressrouteudp
|
部署 CRD 资源
1
|
kubectl apply -f traefik-crd.yaml
|
创建 RBAC 权限
Kubernetes 在 1.6 以后的版本中引入了基于角色的访问控制（RBAC）策略，方便对 Kubernetes 资源和 API 进行细粒度控制。Traefik 需要一定的权限，所以这里提前创建好 Traefik ServiceAccount 并分配一定的权限。
traefik-rbac.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
apiVersion: v1
kind: ServiceAccount
metadata:
namespace: ingress-traefik
name: traefik-ingress-controller
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: traefik-ingress-controller
rules:
- apiGroups: [""]
resources: ["services","endpoints","secrets"]
verbs: ["get","list","watch"]
- apiGroups: ["extensions"]
resources: ["ingresses"]
verbs: ["get","list","watch"]
- apiGroups: ["extensions"]
resources: ["ingresses/status"]
verbs: ["update"]
- apiGroups: ["traefik.containo.us"]
resources: ["middlewares"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["ingressroutes","traefikservices"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["ingressroutetcps","ingressrouteudps"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["tlsoptions","tlsstores"]
verbs: ["get","list","watch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: traefik-ingress-controller
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
name: traefik-ingress-controller
namespace: ingress-traefik
|
部署 Traefik RBAC 资源
1
|
kubectl apply -f traefik-rbac.yaml
|
创建 Traefik 配置文件
由于 Traefik 配置很多，使用 CLI 定义操作过于繁琐，尽量使用将其配置选项放到配置文件中，然后存入 ConfigMap，将其挂入 traefik 中。
traefik-config.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
|
kind: ConfigMap
apiVersion: v1
metadata:
name: traefik-config
namespace: ingress-traefik
data:
traefik.yaml: |-
serversTransport:
insecureSkipVerify: true
api:
insecure: true
dashboard: true
debug: true
metrics:
prometheus: ""
entryPoints:
web:
address: ":80"
websecure:
address: ":443"
providers:
kubernetesCRD: ""
kubernetesingress: ""
log:
filePath: ""
level: error
format: json
accessLog:
filePath: ""
format: json
bufferingSize: 0
filters:
retryAttempts: true
minDuration: 20
fields:
defaultMode: keep
names:
ClientUsername: drop
headers:
defaultMode: keep
names:
User-Agent: redact
Authorization: drop
Content-Type: keep
|
部署 Traefik ConfigMap 资源
1
|
kubectl apply -f traefik-config.yaml -n kube-system
|
设置Label标签
由于使用的Kubernetes DeamonSet方式部署Traefik，所以需要提前给节点设置Label，当程序部署Pod会自动调度到设置 Label的node节点上。
节点设置 Label 标签
1
|
kubectl label nodes k8s-node-1 IngressProxy=true
|
验证是否成功
1
2
3
4
5
|
[root@k8s-master1 traefik]# kubectl get node --show-labels
NAME STATUS ROLES AGE VERSION LABELS
k8s-master Ready <none> 6d1h v1.18.3 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-master,kubernetes.io/os=linux
k8s-node1 Ready <none> 6d1h v1.18.3 IngressProxy=true,beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node1,kubernetes.io/os=linux
k8s-node2 Ready <none> 6d v1.18.3 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,ingress=true,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node2,kubernetes.io/os=linux
|
节点删除Label标签
1
|
kubectl label nodes k8s-node-1 IngressProxy-
|
Kubernetes 部署 Traefik
按照以前Traefik1.7部署方式，使用DaemonSet类型部署，以便于在多服务器间扩展，使用 hostport 方式占用服务器 80、443 端口，方便流量进入。
traefik-deploy.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
apiVersion: v1
kind: Service
metadata:
name: traefik
namespace: ingress-traefik
spec:
ports:
- name: web
port: 80
- name: websecure
port: 443
- name: admin
port: 8080
selector:
app: traefik
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: traefik-ingress-controller
namespace: ingress-traefik
labels:
app: traefik
spec:
selector:
matchLabels:
app: traefik
template:
metadata:
name: traefik
labels:
app: traefik
spec:
serviceAccountName: traefik-ingress-controller
terminationGracePeriodSeconds: 1
containers:
- image: traefik:2.2.0
name: traefik-ingress-lb
ports:
- name: web
containerPort: 80
hostPort: 80 #hostPort方式，将端口暴露到集群节点
- name: websecure
containerPort: 443
hostPort: 443 #hostPort方式，将端口暴露到集群节点
- name: admin
containerPort: 8080
resources:
limits:
cpu: 2000m
memory: 1024Mi
requests:
cpu: 1000m
memory: 1024Mi
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
args:
- --configfile=/config/traefik.yaml
volumeMounts:
- mountPath: "/config"
name: "config"
volumes:
- name: config
configMap:
name: traefik-config
tolerations: #设置容忍所有污点，防止节点被设置污点
- operator: "Exists"
nodeSelector: #设置node筛选器，在特定label的节点上启动
IngressProxy: "true"
|
部署 Traefik
1
|
kubectl apply -f traefik-deploy.yaml
|
3.Traefik 路由规则基础配置
配置 HTTP 路由规则 （Traefik Dashboard 为例）
Traefik 应用已经部署完成，但是想让外部访问 Kubernetes 内部服务，还需要配置路由规则，这里开启了 Traefik Dashboard 配置，所以首先配置 Traefik Dashboard 看板的路由规则，使外部能够访问 Traefik Dashboard。
traefik-dashboard-route.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: traefik-dashboard-route
namespace: ingress-traefik
spec:
entryPoints:
- web
routes:
- match: Host(`traefik.example.cn`)
kind: Rule
services:
- name: traefik
port: 8080
|
部署Traefik Dashboard 路由规则对象
1
|
kubectl apply -f traefik-dashboard-route.yaml
|
1
2
|
接下来配置dnsmasq，客户端想通过域名访问服务，必须要进行DNS解析，我使用的本地 DNS 服务器进行域名解析，将 Traefik 指定节点的 IP 和自定义 域名 绑定，重启dnsmasq服务即可。

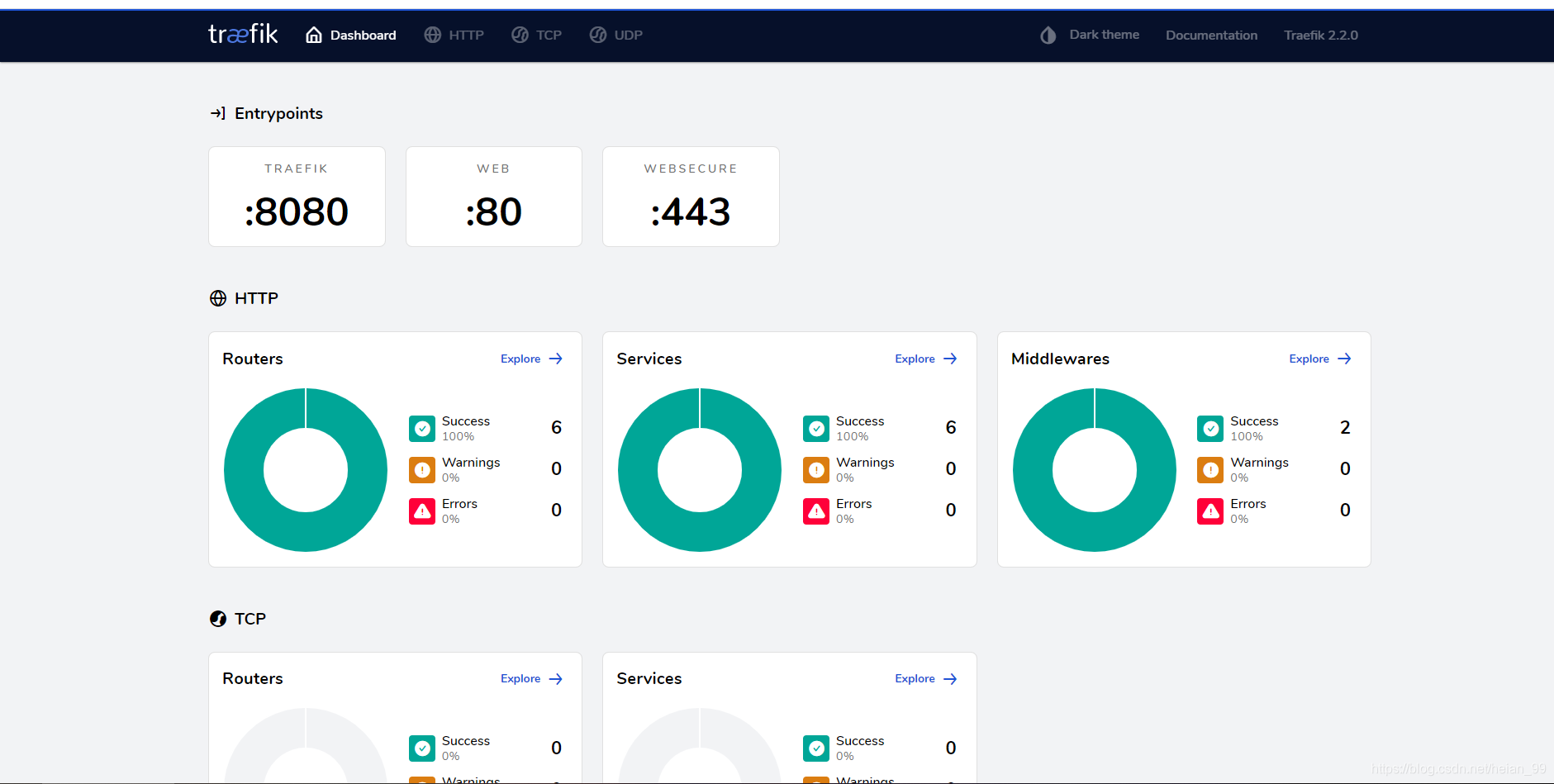

打开任意浏览器输入地址：http://traefik.example.cn进行访问，此处没有配置验证登录，如果想配置验证登录，使用middleware即可。
|

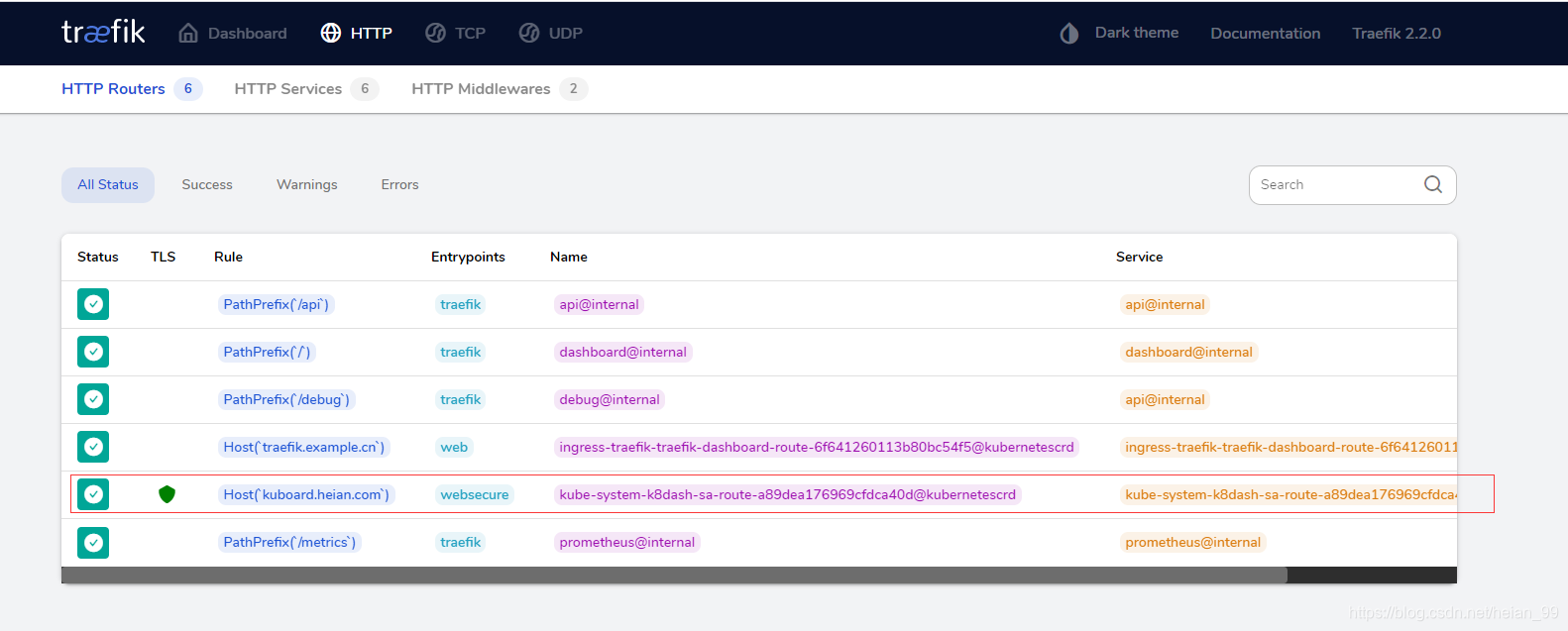

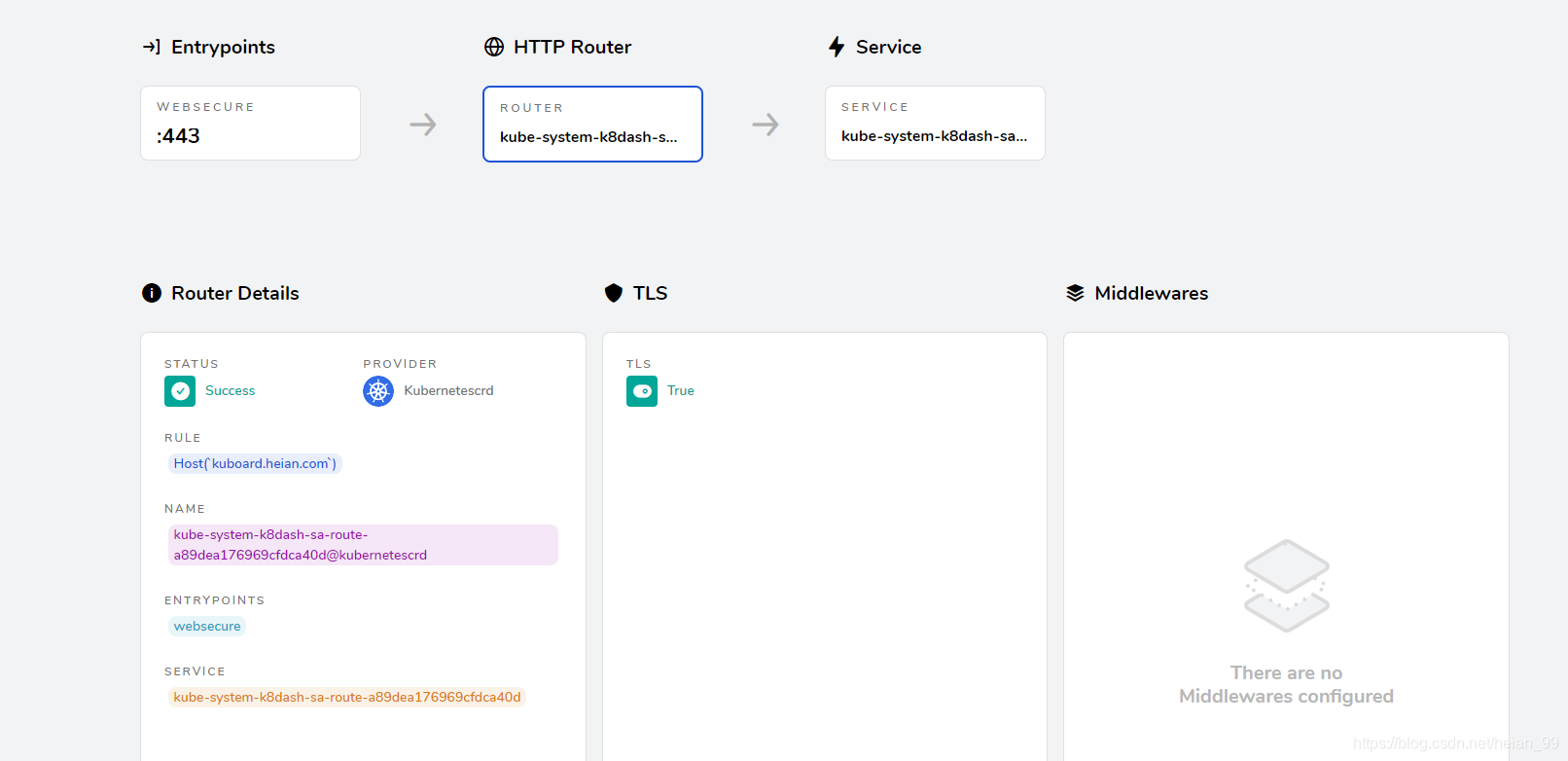

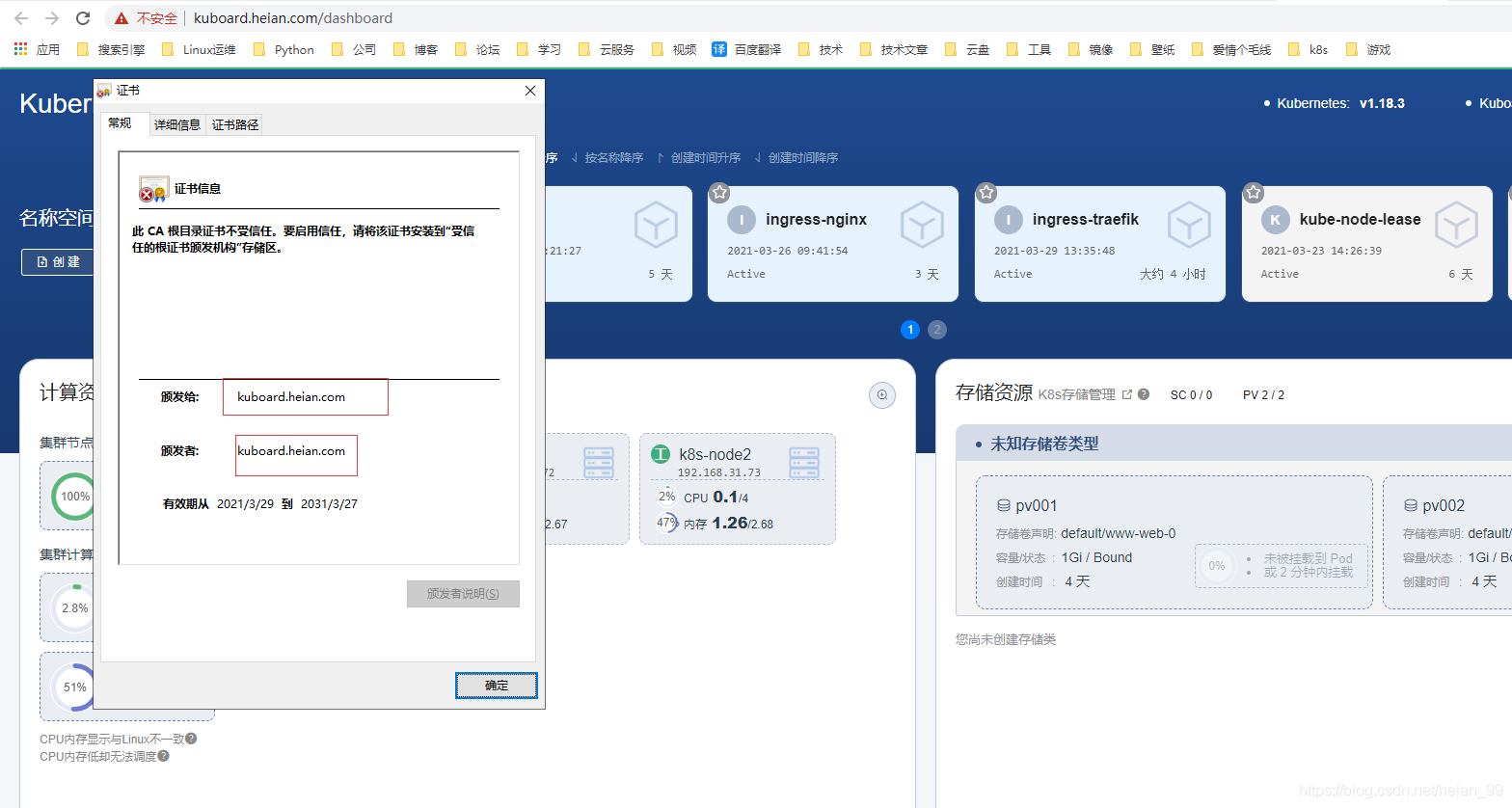

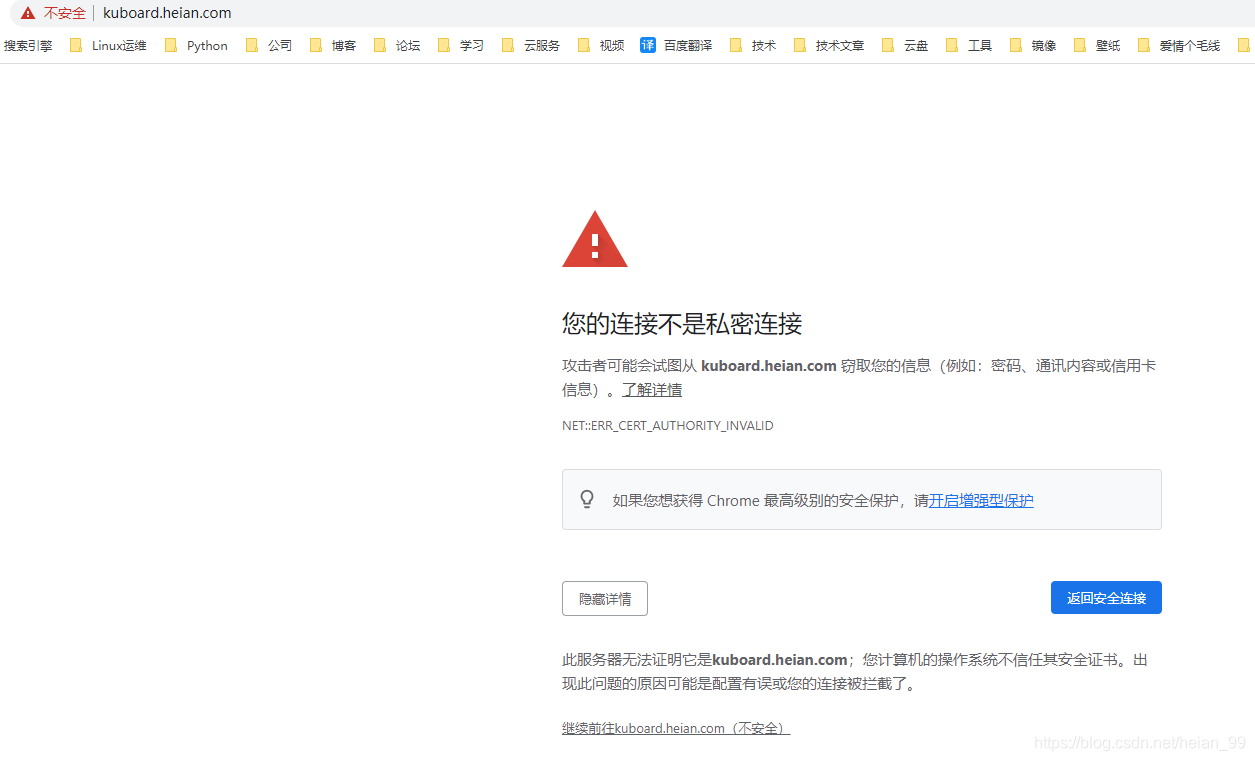

4. 配置 HTTPS 路由规则（Kubernetes Dashboard）
这里我们创建 Kubernetes 的 Dashboard，它是 基于 Https 协议方式访问，由于它是需要使用 Https 请求，所以我们需要配置 Https 的路由规则并指定证书。
测试域名：kuboard.heian.com （内网建立的）
创建证书文件
1
2
3
4
5
|
# 创建自签名证书
openssl req -x509 -nodes -days 3650 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=kuboard.heian.com"
# 将证书存储到Kubernetes Secret中，新建的k8dash-sa-tls必须与k8dash-route中的tls: secretName一致。
kubectl create secret tls k8dash-sa-tls --key=tls.key --cert=tls.crt -n kube-system
|
k8dash-route.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: k8dash-sa-route
namespace: kube-system
spec:
entryPoints:
- websecure
tls:
secretName: k8dash-sa-tls
routes:
- match: Host(`kuboard.heian.com`)
kind: Rule
services:
# 此处的services是Kubernetes中的svc name 与 端口 可以使用kubectl get svc --namespace=kube-system获取
- name: kuboard
port: 80
|
打开任意浏览器输入地址：https://kuboard.heian.com进行访问
