Ratel是有杜宽开发一个类似Kubernetes-**Dashboard，**功能正在慢慢完善
dotbalo (dotbalo)杜宽github
ratel地址：https://github.com/dotbalo/ratel-doc
1
2
3
4
5
6
7
|
Ratel是一个Kubernetes资源平台，基于管理Kubernetes的资源开发，
可以管理Kubernetes的Deployment、DaemonSet、StatefulSet、Service、Ingress、Pods、Nodes。
也可以管理Kubernetes的Role、ClusterRole、Rolebinding、ClusterRoleBinding、Secret、ConfigMap、PV、PVC等。
立志于基于图形界面管理所有的Kubernetes的资源。
|
一、安装Ratel
1.1、安装说明
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
集群安装配置需要两类文件: servers.yaml和集群管理的kubeconfig文件
servers.yaml是ratel的配置文件, 格式如下:
- serverName: 'xiqu'
serverAddress: 'https://1.1.1.1:8443'
#serverAdminUser: 'xxx'
#serverAdminPassword: 'xxx#'
serverAdminToken: 'null'
serverDashboardUrl: "https://k8s.xxx.com.cn/#"
production: 'false'
kubeConfigPath: "/mnt/xxx.config"
harborConfig: "HarborUrl, HarborUsername, HarborPassword, HarborEmail"
其中管理的方式有两种(Token暂不支持):
账号密码和kubeconfig形式, 只需配置一种即可, kubeconfig优先级高
参数解析:
serverName: 集群别名
serverAddress: Kubernetes APIServer地址
serverAdminUser: Kubernetes管理员账号(需要配置basic auth)
serverAdminPassword: Kubernetes管理员密码
serverAdminToken: Kubernetes管理员Token // 暂不支持
serverDashboardUrl: Kubernetes官方dashboard地址，1.x版本需要添加/#!，2.x需要添加/#
kubeConfigPath: Kubernetes kube.config路径(绝对路径)
harborConfig: 对于多集群管理的情况下，可能会存在不同的harbor仓库，配置此参数可以在拷贝资源的时候自动替换harbor配置
kubeConfigPath 通过secret挂载到容器的/mnt目录或者其他目录
本文档是将Ratel安装在Kubernetes集群，如果没有Kubernetes集群，可以参考本人写的另一篇文章，CentOS 8二进制高可用安装Kubernetes集群: https://www.cnblogs.com/dukuan/p/11780729.html
|
1.2 创建Secret
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
|
假设配置两个集群，对应的kubeconfig是test1.config和test2.config
ratel配置文件servers.yaml内容如下:
- serverName: 'test1'
serverAddress: 'https://1.1.1.1:8443'
#serverAdminUser: 'xxx'
#serverAdminPassword: 'xxx#'
serverAdminToken: 'null'
serverDashboardUrl: "https://k8s.test1.com.cn/#"
production: 'false'
kubeConfigPath: "/mnt/test1.config"
harborConfig: "HarborUrl, HarborUsername, HarborPassword, HarborEmail"
- serverName: 'test2'
serverAddress: 'https://1.1.1.2:8443'
#serverAdminUser: 'xxx'
#serverAdminPassword: 'xxx#'
serverAdminToken: 'null'
serverDashboardUrl: "https://k8s.test2.com.cn/#!"
production: 'false'
kubeConfigPath: "/mnt/test2.config"
harborConfig: "HarborUrl, HarborUsername, HarborPassword, HarborEmail"
创建Secret:
kubectl create secret generic ratel-config --from-file=test1.config --from-file=test2.config --from-file=servers.yaml -n kube-system
#test1.config是master的权限配置
cp /root/.kube/config test1.config
我的配置
- serverName: 'test1'
serverAddress: 'https://192.168.0.100:6443'
#serverAdminUser: 'xxx'
#serverAdminPassword: 'xxx#'
serverAdminToken: 'null'
serverDashboardUrl: "http://krm.test.com/#"
production: 'false'
kubeConfigPath: "/mnt/test1.config"
kubectl create secret generic ratel-config --from-file=test1.config --from-file=servers.yaml -n kube-system
|
1.3 创建RBAC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
|
创建权限管理namespace
kubectl create ns kube-users
然后添加如下的ClusterroleBinding
vim ratel-rbac.yaml
apiVersion: v1
items:
- apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
labels:
kubernetes.io/bootstrapping: rbac-defaults
rbac.authorization.k8s.io/aggregate-to-edit: "true"
name: ratel-namespace-readonly
rules:
- apiGroups:
- ""
resources:
- namespaces
verbs:
- get
- list
- watch
- apiGroups:
- metrics.k8s.io
resources:
- pods
verbs:
- get
- list
- watch
- apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ratel-pod-delete
rules:
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- list
- delete
- apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ratel-pod-exec
rules:
- apiGroups:
- ""
resources:
- pods
- pods/log
verbs:
- get
- list
- apiGroups:
- ""
resources:
- pods/exec
verbs:
- create
- apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
name: ratel-resource-edit
rules:
- apiGroups:
- ""
resources:
- configmaps
- persistentvolumeclaims
- services
- services/proxy
verbs:
- patch
- update
- apiGroups:
- apps
resources:
- daemonsets
- deployments
- deployments/rollback
- deployments/scale
- statefulsets
- statefulsets/scale
verbs:
- patch
- update
- apiGroups:
- autoscaling
resources:
- horizontalpodautoscalers
verbs:
- patch
- update
- apiGroups:
- batch
resources:
- cronjobs
- jobs
verbs:
- patch
- update
- apiGroups:
- extensions
resources:
- daemonsets
- deployments
- deployments/rollback
- deployments/scale
- ingresses
verbs:
- patch
- update
- apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ratel-resource-readonly
rules:
- apiGroups:
- ""
resources:
- configmaps
- endpoints
- persistentvolumeclaims
- pods
- replicationcontrollers
- replicationcontrollers/scale
- serviceaccounts
- services
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- bindings
- events
- limitranges
- namespaces/status
- pods/log
- pods/status
- replicationcontrollers/status
- resourcequotas
- resourcequotas/status
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- namespaces
verbs:
- get
- list
- watch
- apiGroups:
- apps
resources:
- controllerrevisions
- daemonsets
- deployments
- deployments/scale
- replicasets
- replicasets/scale
- statefulsets
- statefulsets/scale
verbs:
- get
- list
- watch
- apiGroups:
- autoscaling
resources:
- horizontalpodautoscalers
verbs:
- get
- list
- watch
- apiGroups:
- batch
resources:
- cronjobs
- jobs
verbs:
- get
- list
- watch
- apiGroups:
- extensions
resources:
- daemonsets
- deployments
- deployments/scale
- ingresses
- networkpolicies
- replicasets
- replicasets/scale
- replicationcontrollers/scale
verbs:
- get
- list
- watch
- apiGroups:
- policy
resources:
- poddisruptionbudgets
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- networkpolicies
verbs:
- get
- list
- watch
- apiGroups:
- metrics.k8s.io
resources:
- pods
verbs:
- get
- list
- watch
kind: List
metadata:
resourceVersion: ""
selfLink: ""
|
1
|
kubectl create -f ratel-rbac.yaml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
vim ratel-rbac-binding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: ratel-namespace-readonly-sa
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ratel-namespace-readonly
subjects:
- apiGroup: rbac.authorization.k8s.io
kind: Group
name: system:serviceaccounts:kube-users
kubectl create -f ratel-rbac-binding.yaml
|
1.4 部署ratel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
|
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: ratel
name: ratel
namespace: kube-system
spec:
replicas: 1
selector:
matchLabels:
app: ratel
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
type: RollingUpdate
template:
metadata:
creationTimestamp: null
labels:
app: ratel
spec:
containers:
- command:
- sh
- -c
- ./ratel -c /mnt/servers.yaml
env:
- name: TZ
value: Asia/Shanghai
- name: LANG
value: C.UTF-8
- name: ProRunMode
value: prod
- name: ADMIN_USERNAME
value: admin
- name: ADMIN_PASSWORD
value: password
image: registry.cn-beijing.aliyuncs.com/dotbalo/ratel:latest
imagePullPolicy: Always
livenessProbe:
failureThreshold: 2
initialDelaySeconds: 10
periodSeconds: 60
successThreshold: 1
tcpSocket:
port: 8888
timeoutSeconds: 2
name: ratel
ports:
- containerPort: 8888
name: web
protocol: TCP
readinessProbe:
failureThreshold: 2
initialDelaySeconds: 10
periodSeconds: 60
successThreshold: 1
tcpSocket:
port: 8888
timeoutSeconds: 2
resources:
limits:
cpu: 500m
memory: 512Mi
requests:
cpu: 500m
memory: 512Mi
volumeMounts:
- mountPath: /mnt
name: ratel-config
dnsPolicy: ClusterFirst
# imagePullSecrets:
# - name: myregistrykey
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 30
volumes:
- name: ratel-config
secret:
defaultMode: 420
secretName: ratel-config
需要更改的内容如下:
ProRunMode: 区别在于dev模式打印的是debug日志, 其他模式是info级别的日志, 实际使用时应该配置为非dev
ADMIN_USERNAME: ratel自己的管理员账号
ADMIN_PASSWORD: ratel自己的管理员密码
实际使用时账号密码应满足复杂性要求,因为ratel可以直接操作所有配置的资源。
其他无需配置, 端口配置暂不支持。
|
1.5 Service和Ingress配置
注意：如果没有安装ingress controller，需要把type: ClusterIP改成type: NodePort，然后通过主机IP+Port进行访问
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
创建ratel Service的文件如下:
apiVersion: v1
kind: Service
metadata:
labels:
app: ratel
name: ratel
namespace: kube-system
spec:
ports:
- name: container-1-web-1
port: 8888
protocol: TCP
targetPort: 8888
selector:
app: ratel
type: ClusterIP
创建ratel Ingress:
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: ratel
namespace: kube-system
labels:
app: ratel
spec:
rules:
- host: krm.test.com
http:
paths:
- backend:
serviceName: ratel
servicePort: 8888
path: /
|
1.6 访问ratel
注意：如果没有安装ingress controller，需要把type: ClusterIP改成type: NodePort，然后通过主机IP+Port进行访问
1
|

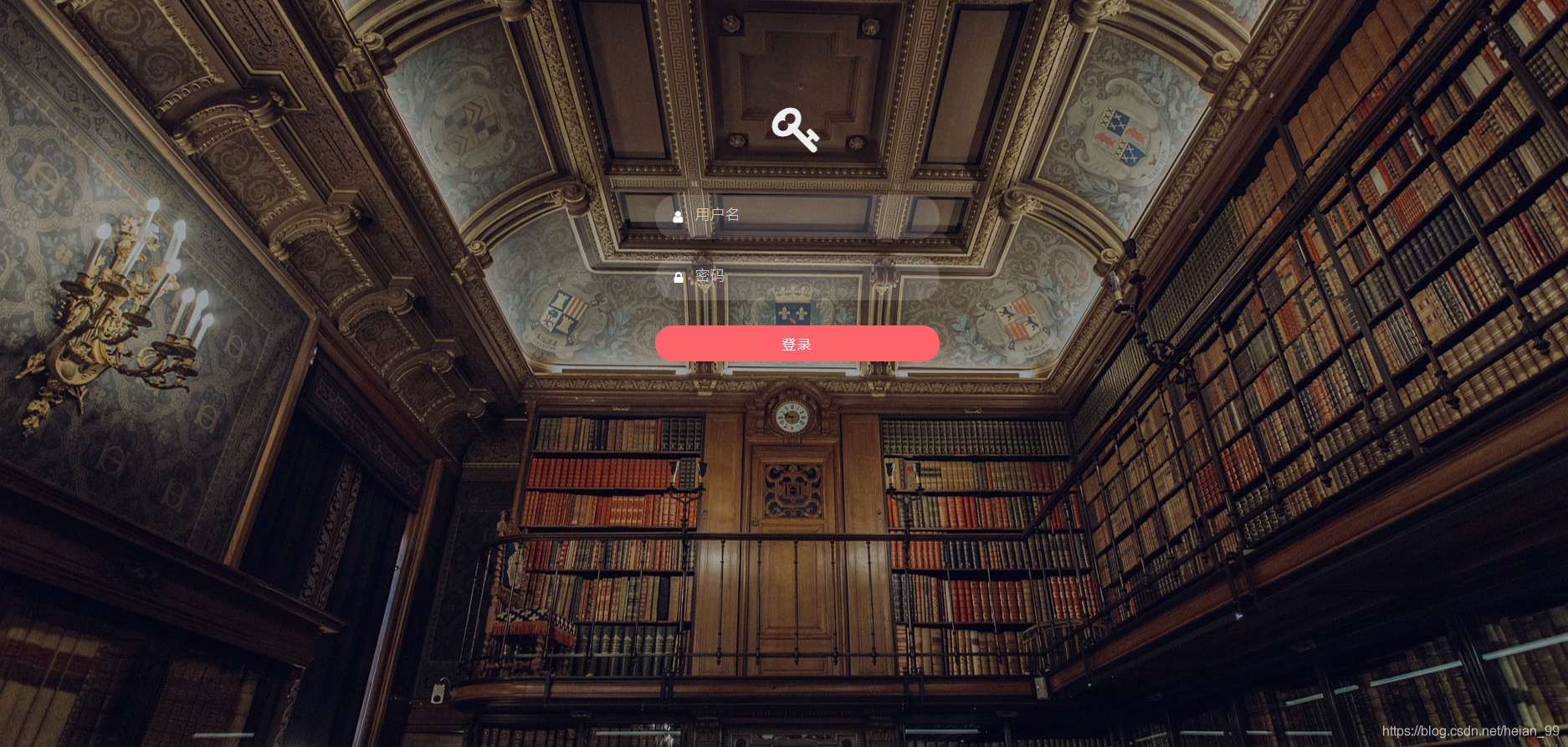

通过Ingress配置的krm.test.com/ratel访问，ratel登录页如下:
|
