SpringBoot使用Hibernate，实现自动创建数据库表【博客数据库设计】

我们准备设计博客，那就要设计数据库。

我们可以使用Hibernate来自动生成数据库。

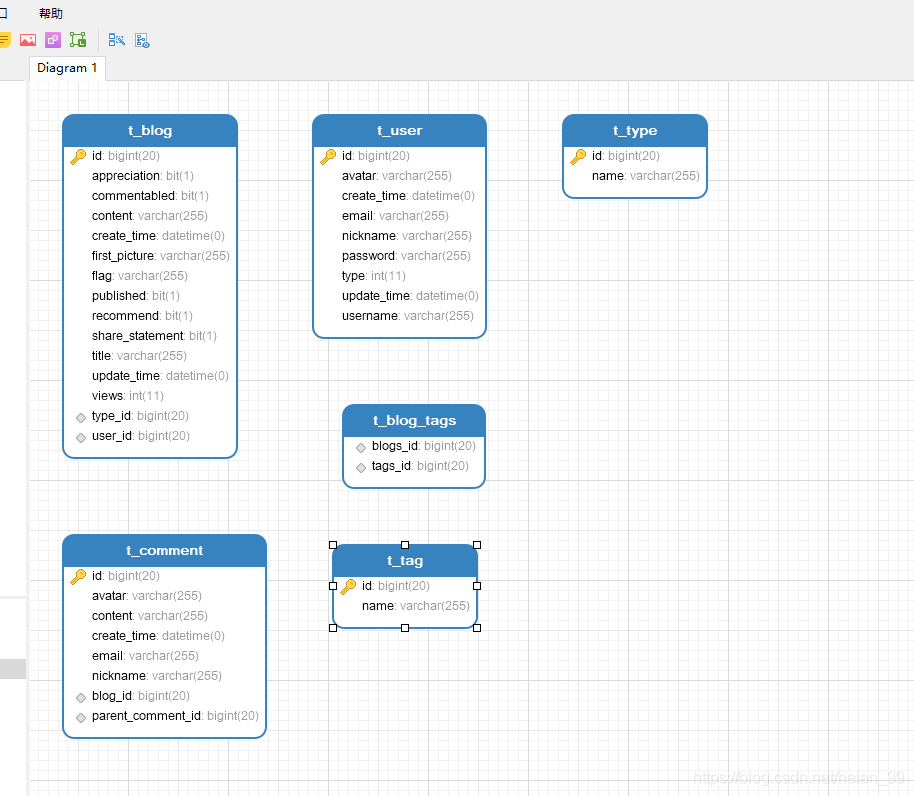

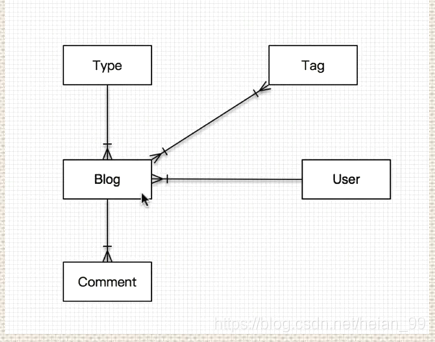

博客数据库的结构：

实体类：

博客 Blog
博客分类 Type

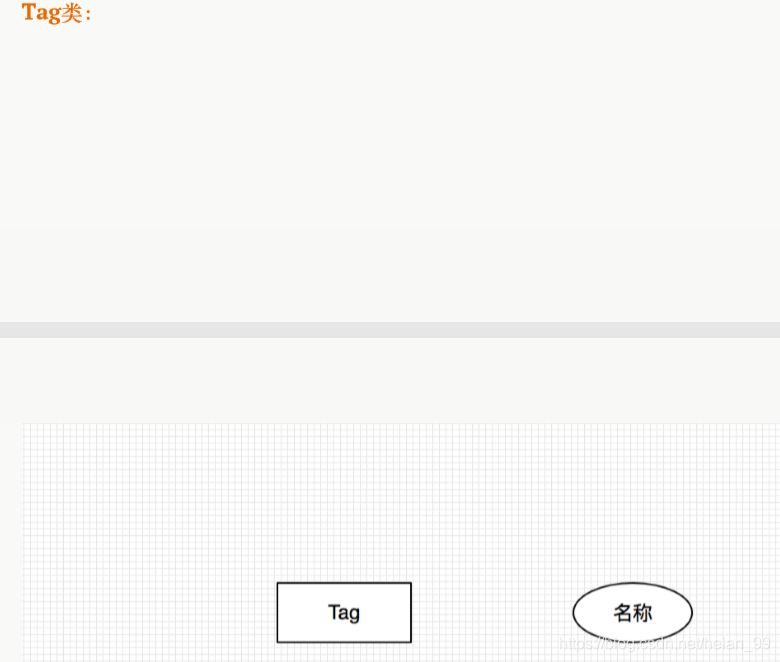

博客标签 Tag

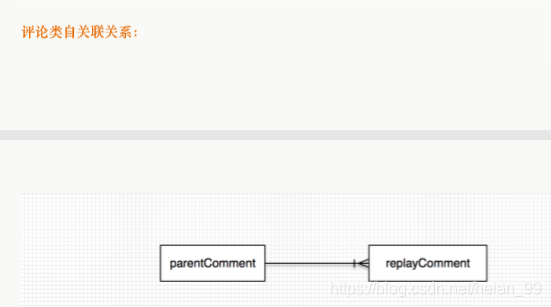

博客评论 Comment

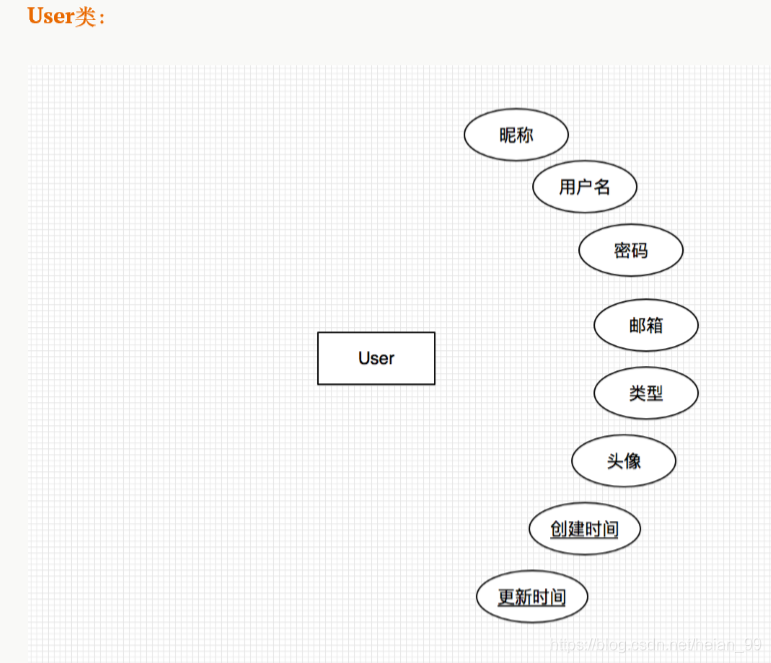

用户 User

项目截图：

首先，在pom.xml中添加以下的一些依赖:

1
2
3
4


<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>

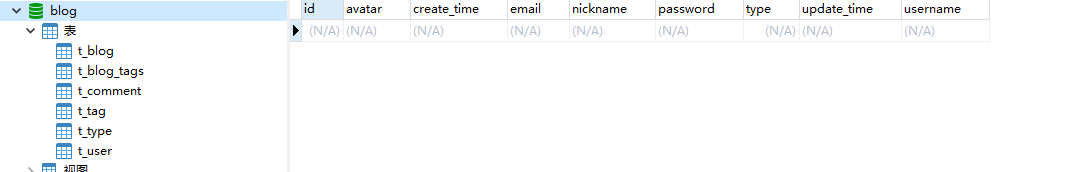

这样就可以使用Hibernate框架了，下面实现自动创建数据库表的功能:

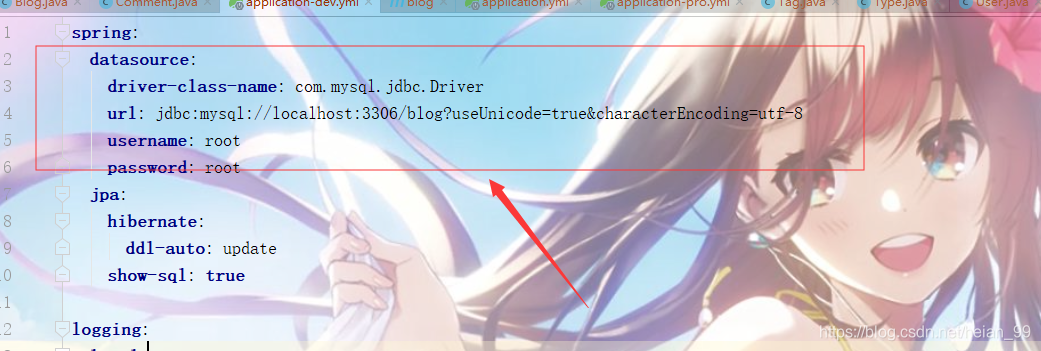

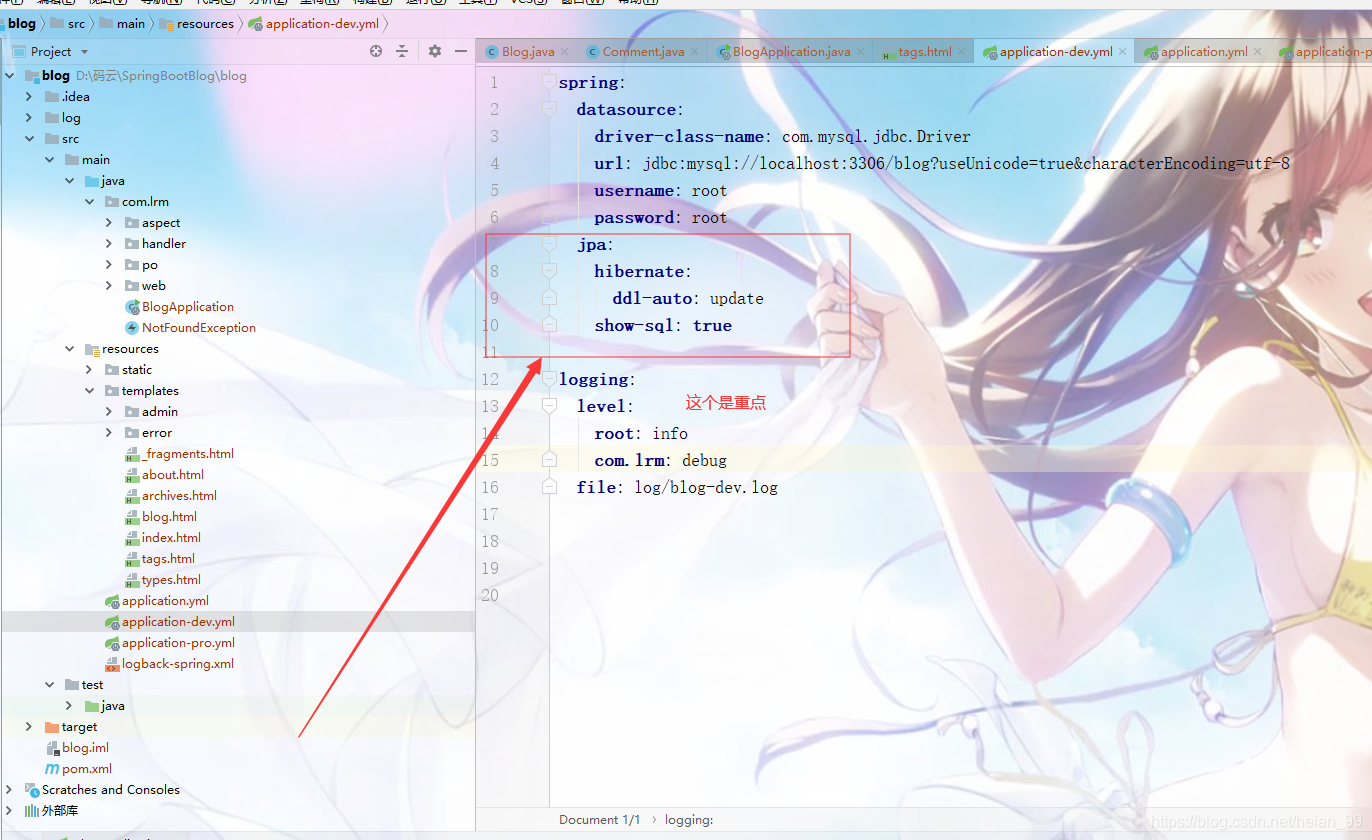

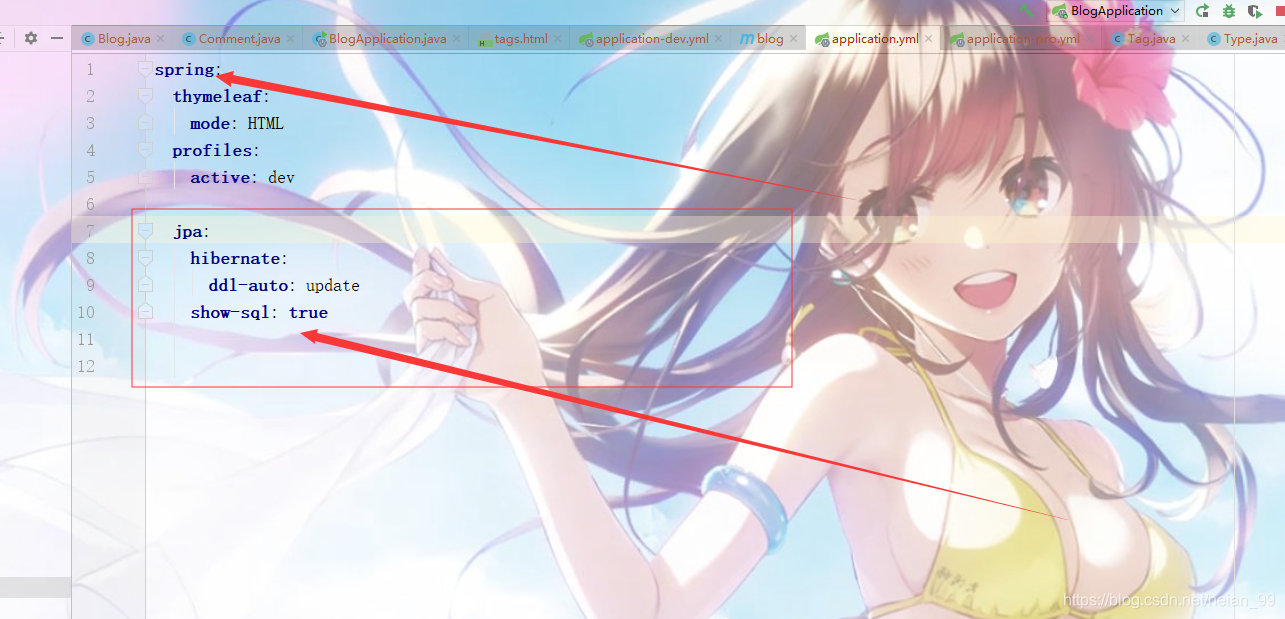

打开application.properties文件添加以下的代码:

1
2
3
4


  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true

这里除了update参数外还有其他的参数，这里解释一下:
//1：value=“create-drop” 表示当JPA应用的时候自动创建表，在解应用的时候删除相应的表，这个在做测试的时候比较有用，但在开发过程中不这么用
//2：value=“create"这个在每次应用启动的时候都会创建数据库表（会删除以前数据库里的数据。
//3：value=“update” 这个属性的作用是a:每次只会更新数据库表里的信息

下面是创建实体类的代码:

Blog

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206

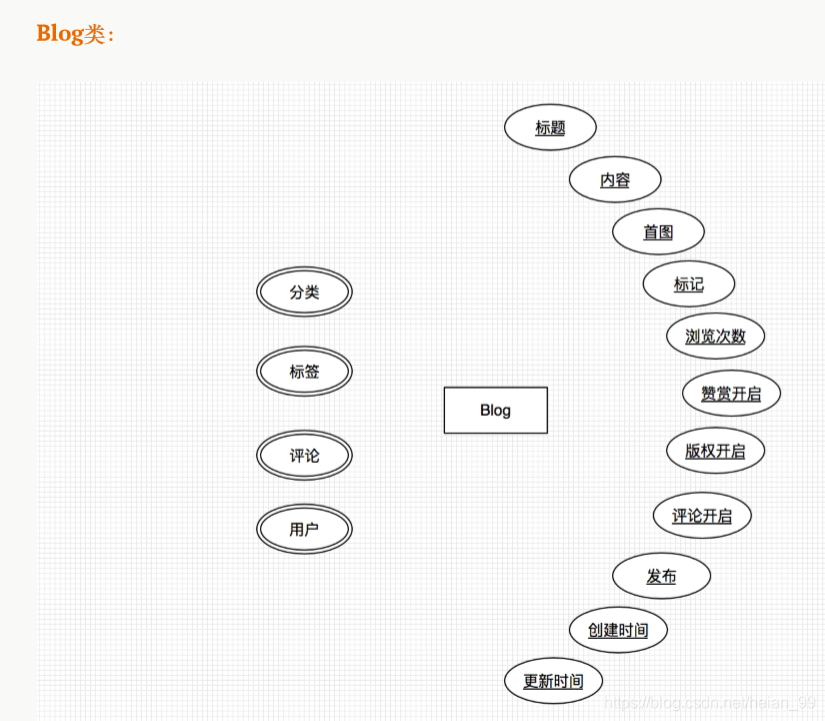

package com.lrm.po;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

@Entity
@Table(name = "t_blog")
public class Blog {
    @Id
    @GeneratedValue
    private Long id;

    private String title;

    private String content;

    private String firstPicture;

    private String flag;

    private Integer views;

    private boolean appreciation;

    private boolean shareStatement;

    private boolean commentabled;

    private boolean published;

    private boolean recommend;

    private Date createTime;

    private Date updateTime;

    @ManyToOne
    private Type type;
    @ManyToMany(cascade = {CascadeType.PERSIST})
    private List<Tag> tags=new ArrayList<>();
    @ManyToOne
    private User user;

    @OneToMany(mappedBy = "blog")
    private List<Comment> comments = new ArrayList<>();
    public Blog() {

    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    public String getFirstPicture() {
        return firstPicture;
    }

    public void setFirstPicture(String firstPicture) {
        this.firstPicture = firstPicture;
    }

    public String getFlag() {
        return flag;
    }

    public void setFlag(String flag) {
        this.flag = flag;
    }

    public Integer getViews() {
        return views;
    }

    public void setViews(Integer views) {
        this.views = views;
    }

    public boolean isAppreciation() {
        return appreciation;
    }

    public void setAppreciation(boolean appreciation) {
        this.appreciation = appreciation;
    }

    public boolean isShareStatement() {
        return shareStatement;
    }

    public void setShareStatement(boolean shareStatement) {
        this.shareStatement = shareStatement;
    }

    public boolean isCommentabled() {
        return commentabled;
    }

    public void setCommentabled(boolean commentabled) {
        this.commentabled = commentabled;
    }

    public boolean isPublished() {
        return published;
    }

    public void setPublished(boolean published) {
        this.published = published;
    }

    public boolean isRecommend() {
        return recommend;
    }

    public void setRecommend(boolean recommend) {
        this.recommend = recommend;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public Date getUpdateTime() {
        return updateTime;
    }

    public void setUpdateTime(Date updateTime) {
        this.updateTime = updateTime;
    }

    public Type getType() {
        return type;
    }

    public void setType(Type type) {
        this.type = type;
    }

    public List<Tag> getTags() {
        return tags;
    }

    public void setTags(List<Tag> tags) {
        this.tags = tags;
    }

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    public List<Comment> getComments() {
        return comments;
    }

    public void setComments(List<Comment> comments) {
        this.comments = comments;
    }

    @Override
    public String toString() {
        return "Blog{" +
                "id=" + id +
                ", title='" + title + '\'' +
                ", content='" + content + '\'' +
                ", firstPicture='" + firstPicture + '\'' +
                ", flag='" + flag + '\'' +
                ", views=" + views +
                ", appreciation=" + appreciation +
                ", shareStatement=" + shareStatement +
                ", commentabled=" + commentabled +
                ", published=" + published +
                ", recommend=" + recommend +
                ", createTime=" + createTime +
                ", updateTime=" + updateTime +
                '}';
    }
}

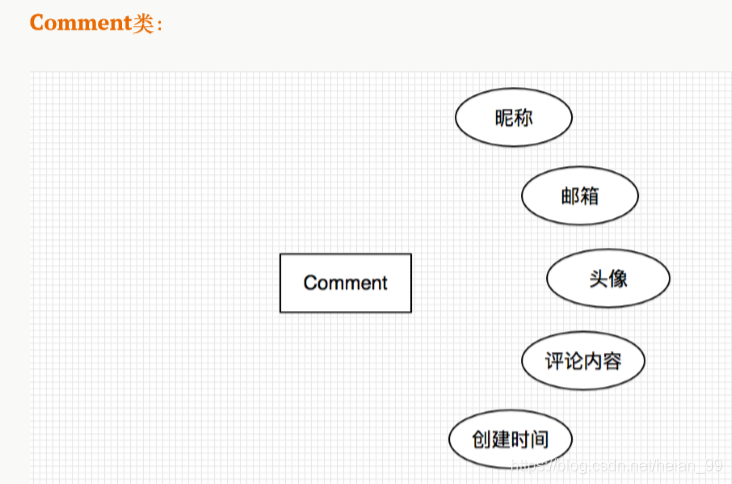

Comment

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118


package com.lrm.po;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;


@Entity
@Table(name = "t_comment")
public class Comment {

    @Id
    @GeneratedValue
    private Long id;
    private String nickname;
    private String email;
    private String content;
    private String avatar;
    @Temporal(TemporalType.TIMESTAMP)
    private Date createTime;

    @ManyToOne
    private Blog blog;

    @OneToMany(mappedBy = "parentComment")
    private List<Comment> replyComments = new ArrayList<>();

    @ManyToOne
    private Comment parentComment;

    public Comment() {
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getNickname() {
        return nickname;
    }

    public void setNickname(String nickname) {
        this.nickname = nickname;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    public String getAvatar() {
        return avatar;
    }

    public void setAvatar(String avatar) {
        this.avatar = avatar;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public Blog getBlog() {
        return blog;
    }

    public void setBlog(Blog blog) {
        this.blog = blog;
    }

    public List<Comment> getReplyComments() {
        return replyComments;
    }

    public void setReplyComments(List<Comment> replyComments) {
        this.replyComments = replyComments;
    }

    public Comment getParentComment() {
        return parentComment;
    }

    public void setParentComment(Comment parentComment) {
        this.parentComment = parentComment;
    }

    @Override
    public String toString() {
        return "Comment{" +
                "id=" + id +
                ", nickname='" + nickname + '\'' +
                ", email='" + email + '\'' +
                ", content='" + content + '\'' +
                ", avatar='" + avatar + '\'' +
                ", createTime=" + createTime +
                '}';
    }
}

Tag

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53


package com.lrm.po;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.List;

@Entity
@Table(name = "t_tag")
public class Tag {

    @Id
    @GeneratedValue
    private Long id;
    private String name;

    @ManyToMany(mappedBy = "tags")
    private List<Blog> blogs = new ArrayList<>();

    public Tag() {
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public List<Blog> getBlogs() {
        return blogs;
    }

    public void setBlogs(List<Blog> blogs) {
        this.blogs = blogs;
    }

    @Override
    public String toString() {
        return "Tag{" +
                "id=" + id +
                ", name='" + name + '\'' +
                '}';
    }
}

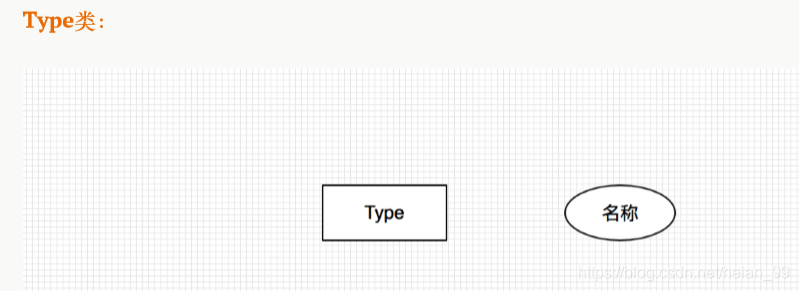

Type

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53


package com.lrm.po;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.List;

@Entity
@Table(name = "t_type")
public class Type {
    @Id
    @GeneratedValue
    private long id;

    private String name;

    @OneToMany(mappedBy = "type")
    private List<Blog> blogs = new ArrayList<>();

    public Type() {
    }

    public long getId() {
        return id;
    }

    public void setId(long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public List<Blog> getBlogs() {
        return blogs;
    }

    public void setBlogs(List<Blog> blogs) {
        this.blogs = blogs;
    }

    @Override
    public String toString() {
        return "Type{" +
                "id=" + id +
                ", name='" + name + '\'' +
                '}';
    }
}

User

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130


package com.lrm.po;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

/**
 * Created by limi on 2017/10/14.
 */
@Entity
@Table(name = "t_user")
public class User {

    @Id
    @GeneratedValue
    private Long id;
    private String nickname;
    private String username;
    private String password;
    private String email;
    private String avatar;
    private Integer type;
    @Temporal(TemporalType.TIMESTAMP)
    private Date createTime;
    @Temporal(TemporalType.TIMESTAMP)
    private Date updateTime;

    @OneToMany(mappedBy = "user")
    private List<Blog> blogs = new ArrayList<>();

    public User() {
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getNickname() {
        return nickname;
    }

    public void setNickname(String nickname) {
        this.nickname = nickname;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getAvatar() {
        return avatar;
    }

    public void setAvatar(String avatar) {
        this.avatar = avatar;
    }

    public Integer getType() {
        return type;
    }

    public void setType(Integer type) {
        this.type = type;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public Date getUpdateTime() {
        return updateTime;
    }

    public void setUpdateTime(Date updateTime) {
        this.updateTime = updateTime;
    }


    public List<Blog> getBlogs() {
        return blogs;
    }

    public void setBlogs(List<Blog> blogs) {
        this.blogs = blogs;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", nickname='" + nickname + '\'' +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", email='" + email + '\'' +
                ", avatar='" + avatar + '\'' +
                ", type=" + type +
                ", createTime=" + createTime +
                ", updateTime=" + updateTime +
                '}';
    }
}

OK，既然，实体类已将创建完毕，运行接口。就可以生成数据库。但是前提，你是配置数据库

1
2
3
4
5
6


spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/blog?useUnicode=true&characterEncoding=utf-8
    username: root
    password: root

测试结果：

真的很nice，确实是一波骚操作。
