MySQL读写分离之Proxy

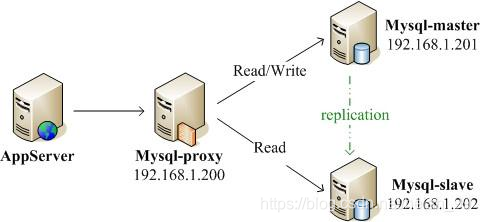

MySQL Proxy：
========================================================

MySQL_Proxy Master Slave1 Slave2
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝=
IP 192.168.1.250 192.168.1.215 192.168.1.66
Server_ID 6 215 66

实现步骤：
MySQL主/备复制
安装并配置MySQL Proxy
测试Proxy

一、MySQL主/备复制（略）

二、安装并配置MySQL Proxy
1. 安装并配置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


[root@MySQL_Proxy ~]# service mysqld stop
[root@MySQL_Proxy ~]# chkconfig mysqld off
[root@MySQL_Proxy ~]# rpm -qa |grep lua
lua-5.1.4-4.1.el6.x86_64
[root@MySQL_Proxy ~]# tar xf mysql-proxy-0.8.4-linux-el6-x86-64bit.tar.gz -C /usr/local/
[root@MySQL_Proxy ~]# cd /usr/local/
[root@MySQL_Proxy ~]# ln -s mysql-proxy-0.8.4-linux-el6-x86-64bit mysql-proxy
[root@MySQL_Proxy ~]# vim /usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua
min_idle_connections = 1,
max_idle_connections = 1,

2. 启动mysql-proxy

1
2


[root@MySQL_Proxy ~]# lsof -i TCP:3306
[root@MySQL_Proxy ~]# /usr/local/mysql-proxy/bin/mysql-proxy --help-proxy

-P 指定proxy服务器工作的地址和端口
-b 指定写服务器的地址和端口
-r 指定读服务器的地址和端口
-s 指定判断的脚本
--daemon 以后台进程的方式启动

调整最大打开的文件数

1
2
3
4


[root@MySQL_Proxy ~]# ulimit -a |grep 'open files'
[root@MySQL_Proxy ~]# ulimit -n 10240
[root@MySQL_Proxy ~]# ulimit -a |grep 'open files'
open files (-n) 10240

1
2


[root@MySQL_Proxy ~]# /usr/local/mysql-proxy/bin/mysql-proxy -P 192.168.1.250:3306 -b 192.168.1.27:3306 -r 192.168.1.215:3306 -r 192.168.1.66:3306 -s /usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua --daemon
2014-02-13 17:15:54: (critical) plugin proxy 0.8.4 started

1
2


[root@MySQL_Proxy ~]# netstat -tnlp |grep :3306
tcp 0 0 192.168.10.137:3306 0.0.0.0:* LISTEN 16620/mysql-proxy

1
2
3


[root@MySQL_Proxy ~]# vim /etc/rc.local
ulimit -n 10240
/usr/local/mysql-proxy/bin/mysql-proxy -P 192.168.1.250:3306 -b 192.168.1.27:3306 -r 192.168.1.215:3306 -r 192.168.1.66:3306 -s /usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua --daemon

三、测试
1. 主库

1
2
3
4
5


mysql> grant ALL on bbs.* to bbs@'192.168.1.%' identified by 'localhost';
mysql> flush privileges;

mysql> create database bbs;
mysql> create table bbs.t1 (name varchar(50));

2. 备库
mysql> stop slave; //暂时断掉和主库的连接

3. 从客户端测试
a. 读 ====主 or 备
b. 写 ====主

4. 备库
mysql> start slave;
=======================================================
